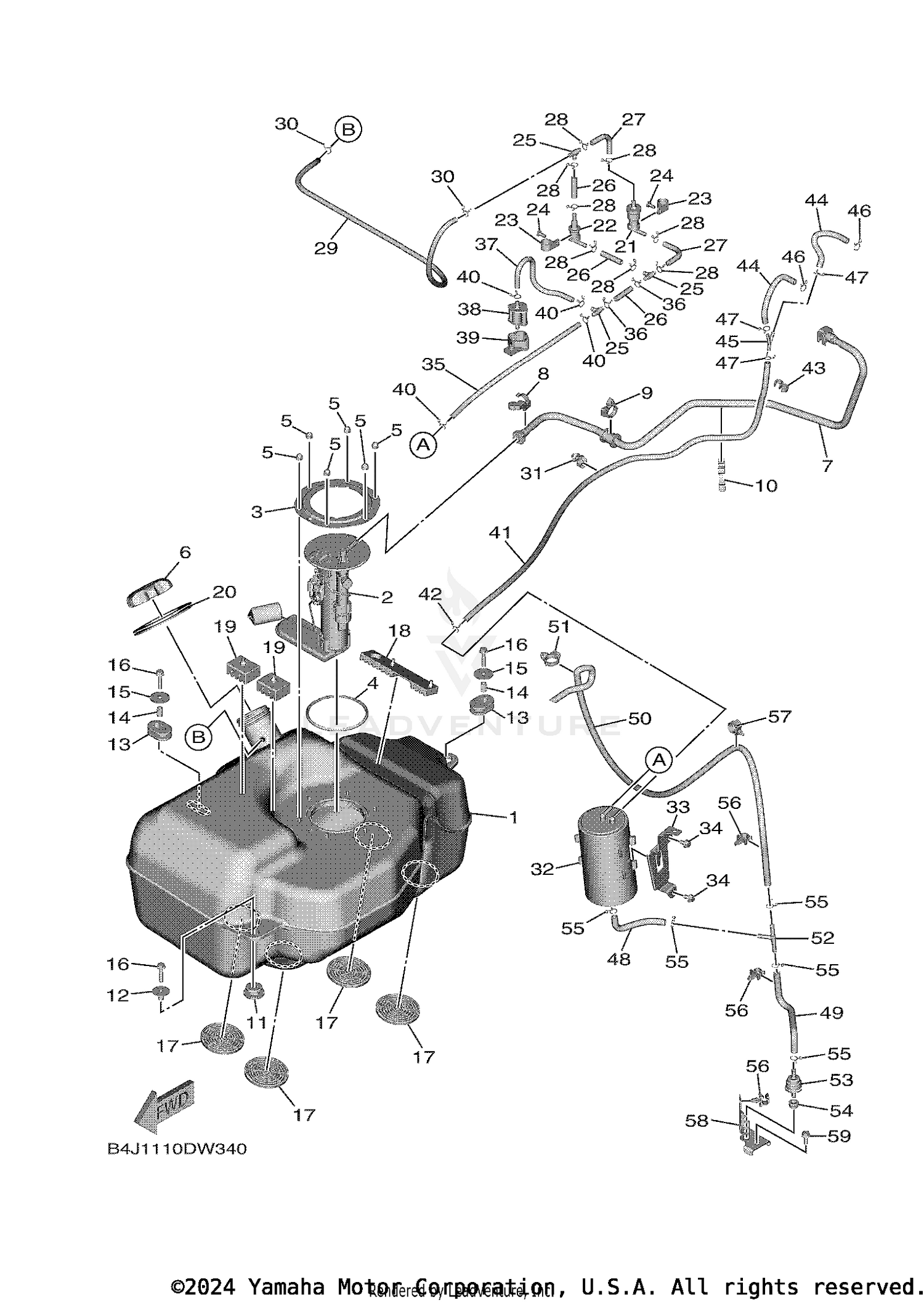

| Ref | Part Number | Description |
|---|
| 1 |
BG4-F4110-02-00 |
FUEL TANK COMP. This part replaces BG4-F4110-01-00. Price: $275.99 |
| 2 |
B4J-13907-00-00 |
FUEL PUMP COMP. Price: $397.99 |
| 3 |
3B4-24491-00-00 |
BRACKET, FUEL PUMP Price: $22.99 |
| 4 |
1S3-24486-00-00 |
O-RING Price: $18.99 |
| 5 |
95380-06800-00 |
NUT, CROWN This part replaces 95302-06800-00. Price: $9.49 |
| 6 |
BKP-24610-00-00 |
CAP ASSY This part replaces BB5-24610-00-00. Price: $34.99 |
| 7 |
B4J-13971-00-00 |
PIPE, FUEL 1 Price: $96.99 |
| 8 |
90464-14004-00 |
CLAMP Price: $8.49 |
| 9 |
90464-20010-00 |
CLAMP Price: $3.50 |
| 10 |
90464-10009-00 |
CLAMP Price: $4.95 |
| 11 |
90480-18016-00 |
GROMMET Price: $9.49 |
| 12 |
90387-07021-00 |
COLLAR Price: $8.49 |
| 13 |
90480-01400-00 |
GROMMET Price: $14.49 |
| 14 |
90387-061V1-00 |
COLLAR (2UJ) Price: $9.49 |
| 15 |
90201-065G8-00 |
WASHER, PLATE Price: $9.49 |
| 16 |
95817-06030-00 |
BOLT,FLANGE This part replaces 95802-06030-00. Price: $4.65 |
| 17 |
2MB-F4181-00-00 |
DAMPER, LOCATING 1 Price: $2.80 |
| 18 |
2HC-F4181-00-00 |
DAMPER, LOCATING 1 Price: $4.50 |
| 19 |
2MB-F4182-00-00 |
DAMPER, LOCATING 2 Price: $3.45 |
| 20 |
BG4-K8272-00-00 |
COVER, FUEL INLET Price: $2.90 |
| 21 |
5RB-24180-00-00 |
ROLL OVER VALVE ASSY Price: $129.99 |
| 22 |
3UH-24180-00-00 |
ROLL OVER VALVE ASSY Price: $39.99 |
| 23 |
90464-15014-00 |
CLAMP Price: $3.65 |
| 24 |
98907-05012-00 |
SCREW, BIND This part replaces 90154-05064-00. Price: $9.49 |
| 25 |
90413-06031-00 |
WAY 3 Price: $9.49 |
| 26 |
90445-09832-00 |
HOSE (L41) Price: $1.10 |
| 27 |
2HC-F4864-00-00 |
TUBE Price: $2.85 |
| 28 |
90467-090A2-00 |
CLIP This part replaces 90467-09006-00. Price: $4.75 |
| 29 |
90445-09130-00 |
HOSE (L760) Price: $27.99 |
| 30 |
90467-090A2-00 |
CLIP This part replaces 90467-09006-00. Price: $4.75 |
| 31 |
90464-20010-00 |
CLAMP Price: $3.50 |
| 32 |
7CC-F4170-02-00 |
CANISTER ASSY Price: $51.99 |
| 33 |
BG4-F4190-00-00 |
CANISTER HOLDER ASSY Price: $6.49 |
| 34 |
95812-06010-00 |
BOLT, FLANGE This part replaces 95802-06010-00. Price: $3.20 |
| 35 |
90445-09129-00 |
HOSE (L270) Price: $14.49 |
| 36 |
90467-090A2-00 |
CLIP This part replaces 90467-09006-00. Price: $4.75 |
| 37 |
B4J-1243A-00-00 |
HOSE 1 Price: $14.49 |
| 38 |
3B4-24380-11-00 |
PIPE JOINT ASSY Price: $48.99 |
| 39 |
3B4-24398-00-00 |
BAND 1 Price: $9.49 |
| 40 |
90467-090A2-00 |
CLIP This part replaces 90467-09006-00. Price: $4.75 |
| 41 |
90445-10065-00 |
HOSE (L960) Price: $35.99 |
| 42 |
90467-090A2-00 |
CLIP This part replaces 90467-09006-00. Price: $4.75 |
| 43 |
90464-09M31-00 |
CLAMP Price: $8.49 |
| 44 |
90445-10017-00 |
HOSE Price: $39.99 |
| 45 |
90413-05013-00 |
WAY 3 Price: $5.99 |
| 46 |
90467-100A1-00 |
CLIP This part replaces 90467-10041-00. Price: $8.49 |
| 47 |
90467-090A2-00 |
CLIP This part replaces 90467-09006-00. Price: $4.75 |
| 48 |
BG4-24315-00-00 |
PIPE 5 Price: $11.49 |
| 49 |
BG4-24322-00-00 |
PIPE 11 Price: $20.99 |
| 50 |
90445-11100-00 |
HOSE (L1010) Price: $23.99 |
| 51 |
90464-20010-00 |
CLAMP Price: $3.50 |
| 52 |
90413-08012-00 |
WAY 3 Price: $4.90 |
| 53 |
BG4-24362-00-00 |
VALVE, CHECK 1 Price: $45.99 |
| 54 |
90480-10003-00 |
GROMMET Price: $9.49 |
| 55 |
90467-100A1-00 |
CLIP This part replaces 90467-10041-00. Price: $8.49 |
| 56 |
90464-14M55-00 |
CLAMP Price: $2.55 |
| 57 |
90464-16006-00 |
CLAMP Price: $10.49 |
| 58 |
BG4-F148U-00-00 |
BRACKET 1 Price: $3.85 |
