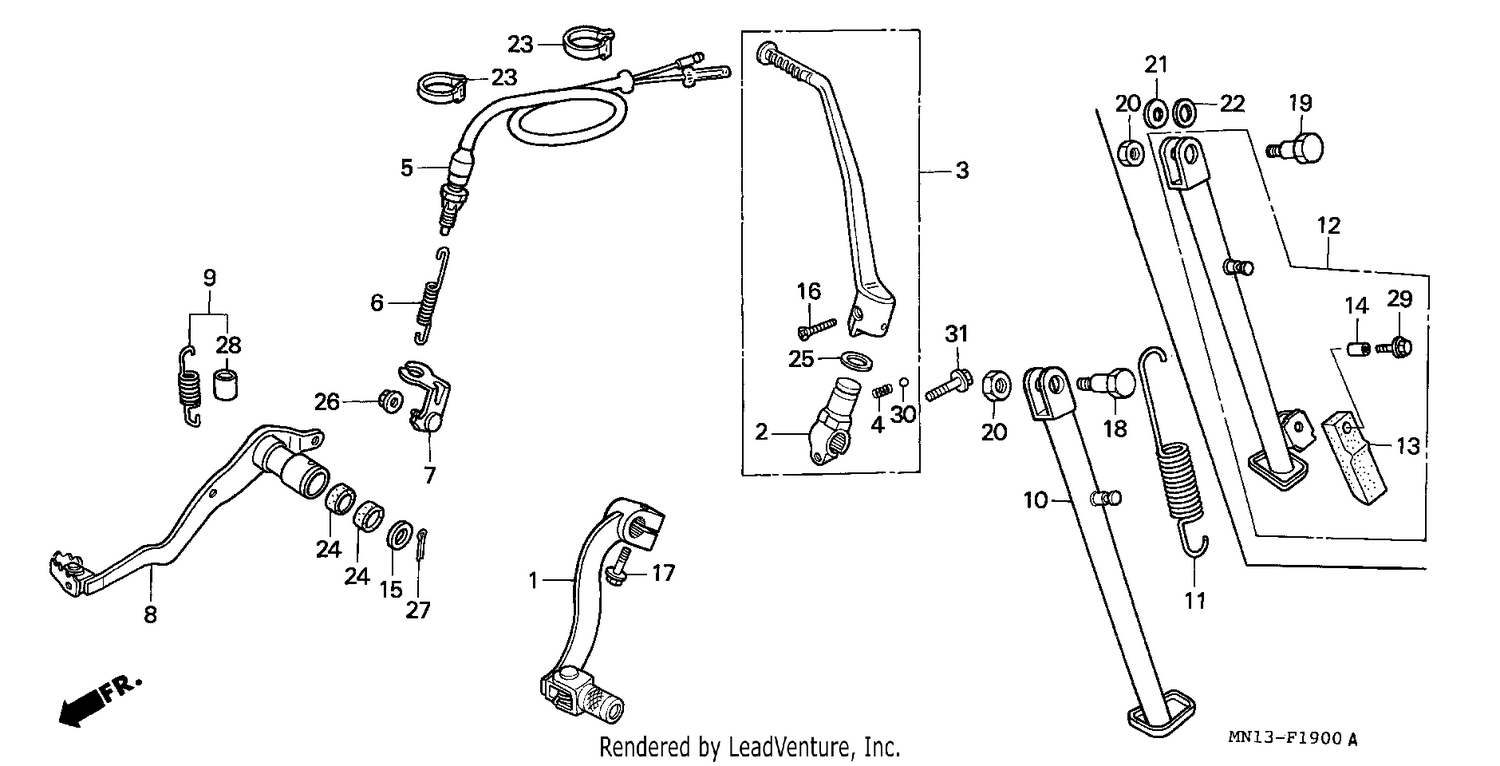

| Ref | Part Number | Description |
|---|
| 1 |
24700MN1000 |
PEDAL ASSY., CHANGE Price: Call Us |
| 3 |
28300MN1671 |
ARM ASSY., KICK STARTER Price: Call Us |
| 4 |
28333124000 |
SPRING, KICK STARTER STOPPER Price: Call Us |
| 5 |
35350KN5651 |
SWITCH ASSY., RR. STOP Price: Call Us |
| 6 |
35357MT3000 |
SPRING, STOP SWITCH Price: Call Us |
| 7 |
35358MK2650ZA |
BRACKET, STOP SWITCH *NH138* Price: Call Us |
| 8 |
46500MN1710 |
PEDAL ASSY., BRAKE Price: Call Us |
| 9 |
46515MN1680 |
SPRING ASSY., BRAKE PEDAL Price: Call Us |
| 11 |
50535ML6670 |
SPRING, SIDE STAND Price: Call Us |
| 12 |
50540MN1650 |
BAR ASSY., SIDE STAND Price: Call Us |
| 13 |
50548356700 |
RUBBER, STAND Price: Call Us |
| 14 |
50549356700 |
COLLAR, STAND RUBBER SETTING Price: Call Us |
| 15 |
53312657000 |
WASHER, BUSH Price: Call Us |
| 16 |
90101KN5670 |
BOLT, KICK ARM Price: Call Us |
| 17 |
90102MN1670 |
BOLT, FLANGE, 6X20 Price: Call Us |
| 19 |
90108KV6000 |
SCREW, SIDE STAND PIVOT Price: Call Us |
| 20 |
90304GE8003 |
NUT, U, 10MM Price: Call Us |
| 21 |
90501MF9710 |
WASHER, THRUST, 24X13 Price: Call Us |
| 22 |
90502MF9710 |
WASHER, THRUST, 24X10 Price: Call Us |
| 23 |
90650KV6003 |
BAND, WIRE, 95MM Price: Call Us |
| 24 |
91251MT4000 |
DUST SEAL, 15X20X3 Price: Call Us |
| 25 |
91303KA3731 |
DUST SEAL, 19X25X4.1 (NOK) Price: Call Us |
| 26 |
9405006000 |
NUT, FLANGE, 6MM Price: Call Us |
| 27 |
9420125300 |
PIN, SPLIT, 2.5X30 Price: Call Us |
| 28 |
950035000220 |
TUBE, VINYL, 16X19X20 (95003-50001-10M) Price: Call Us |
| 29 |
957000602507 |
BOLT, FLANGE, 6X25 Price: Call Us |
| 30 |
9621108000 |
BALL, STEEL, #8 (1/4) Price: Call Us |
