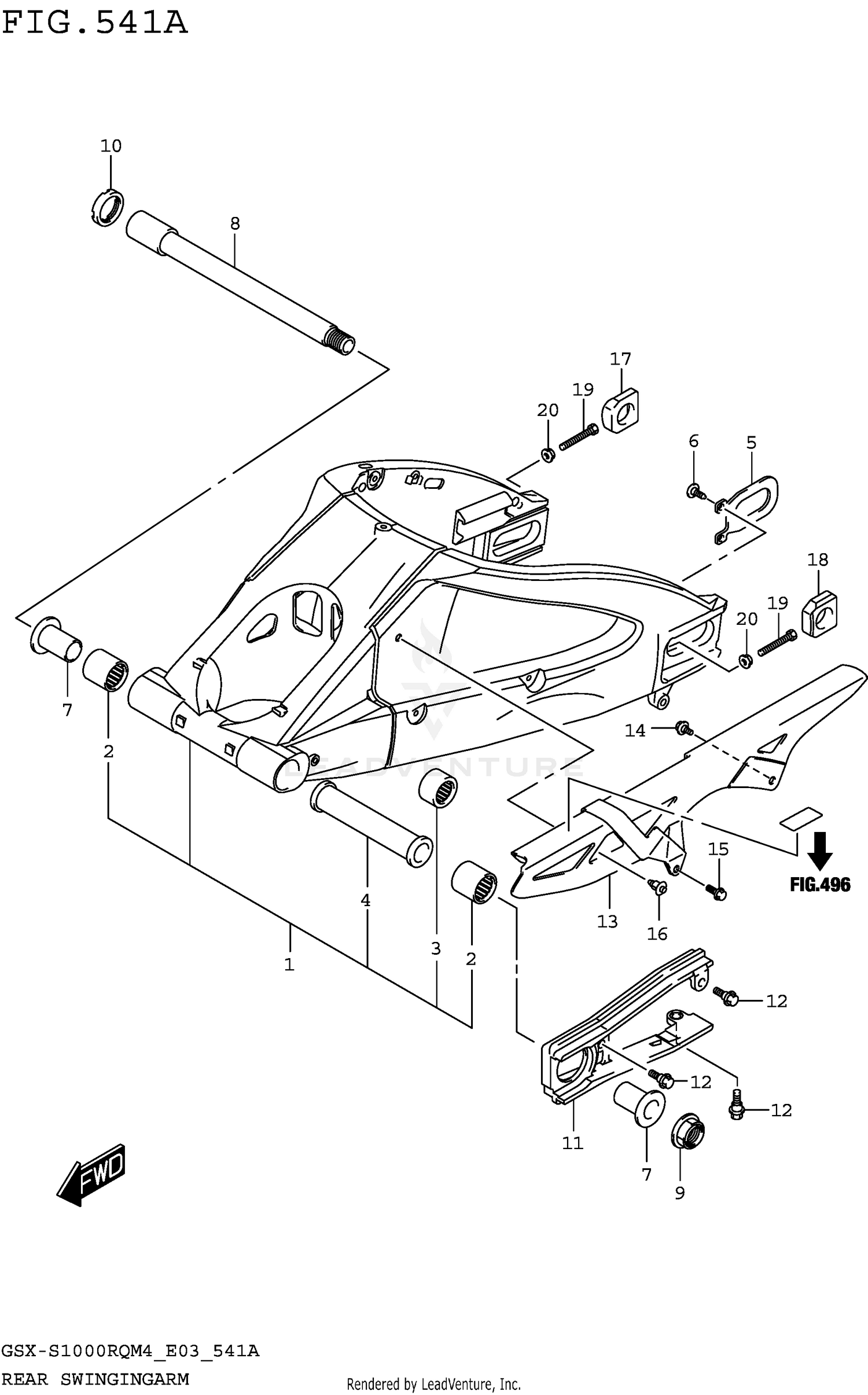

REAR SWINGINGARM
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 61000-47H21-YAP | SWINGINGARM ASSY, REAR (BLACK Price: $2,106.77 |
| 5 | 61124-41G00 | PLATE, RR SWING ARM BRKT Price: $9.45 |
| 6 | 09125-06060 | SCREW (6X12) Price: $1.89 |
| 8 | 61211-01H00 | SHAFT,RR SWGARM PIVOT Price: $184.70 |
| 9 | 09159-20006 | NUT Price: $33.50 |
| 10 | 61214-42E10 | NUT,RR SWGARM PIVOT BOLT Price: $45.95 |
| 11 | 61273-47H01 | BUFFER, CHAIN TOUCH DEFENSE Price: $25.66 |
| 12 | 09139-06226 | SCREW (6X17.8) Price: $3.55 |
| 13 | 61310-04K00 | CASE, CHAIN Price: $43.31 |
| 14 | 09139-06214 | SCREW (6X16) Price: $3.18 |
| 15 | 09139-06225 | SCREW (6X12) Price: $3.53 |
| 16 | 09409-08308 | CLIP (7.6X25.7) Price: $2.79 |
| 17 | 61445-40F00 | ADJUSTER, CHAIN Price: $58.30 |
| 18 | 61446-40F00 | ADJUSTER, CHAIN Price: $58.30 |
| 19 | 09100-08287 | BOLT (8X50) Price: $3.78 |
