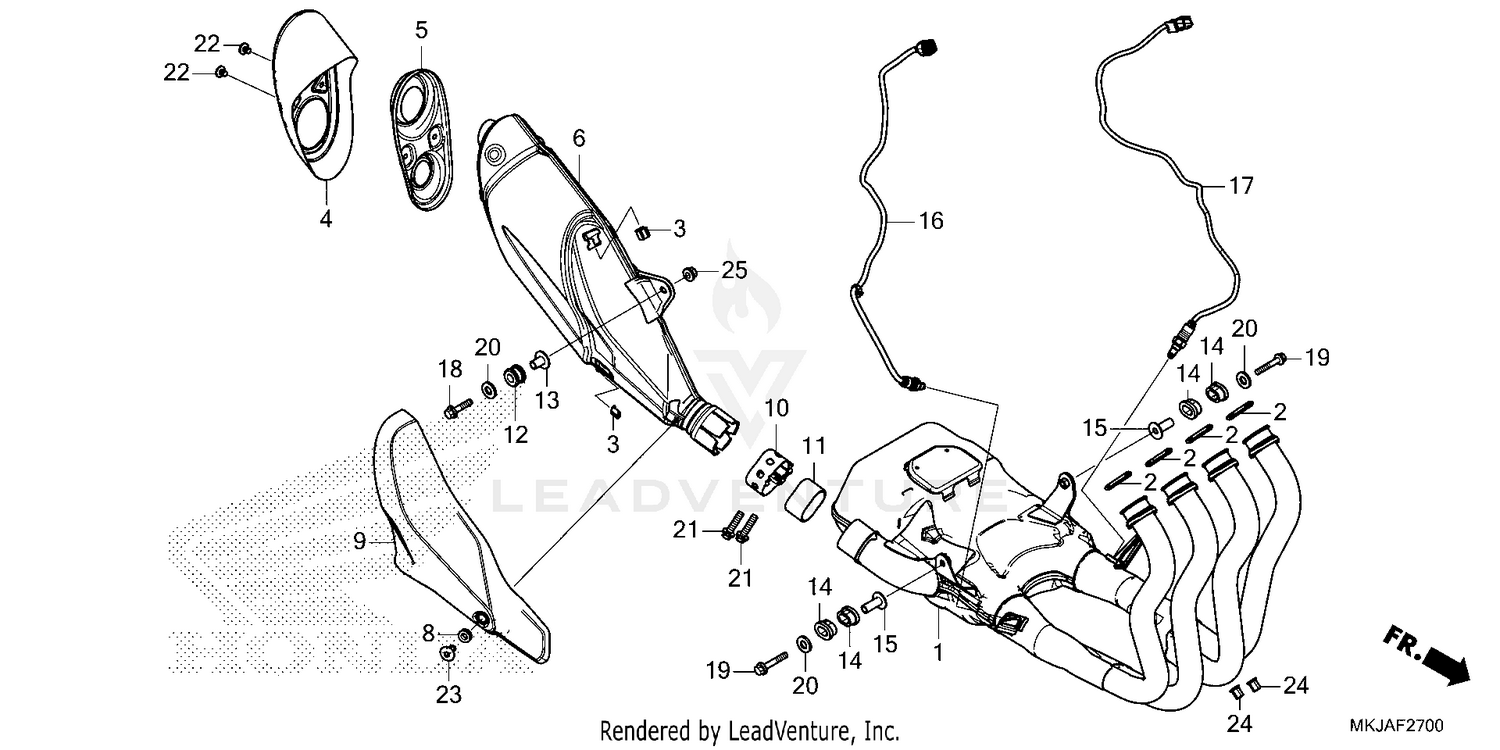

| Ref | Part Number | Description |
|---|
| 1 |
18150-MKJ-A61 |
PIPE, EX. Price: $2,976.29 |
| 2 |
18291-MN4-920 |
GASKET, EX. PIPE Price: $6.67 |
| 3 |
18293-MCA-A20 |
RUBBER, PROTECTOR GASKET Price: $2.35 |
| 4 |
18306-MKJ-E61 |
CAP, TAIL Price: $86.65 |
| 5 |
18307-MKJ-D01 |
CAP, TAIL (INNER) Price: $56.13 |
| 6 |
18310-MKJ-A62 |
MUFFLER COMP This part replaces 18310-MKJ-A61. Price: $1,303.76 |
| 8 |
18345-MBT-610 |
RUBBER, PROTECTOR MOUNTING Price: $2.49 |
| 9 |
18350-MKJ-E61 |
COVER, MUFFLER Price: $229.78 |
| 10 |
18372-MM5-640 |
BAND, L. MUFFLER Price: $38.18 |
| 11 |
18391-ML0-003 |
GASKET, MUFFLER Price: $35.49 |
| 12 |
18421-MGC-JB0 |
RUBBER, MUFFLER MOUNTING Price: $5.64 |
| 13 |
18422-MGC-JB0 |
COLLAR, MUFFLER MOUNTING Price: $7.16 |
| 14 |
18422-MGZ-J00 |
RUBBER, EX. PIPE MOUNTING Price: $10.69 |
| 15 |
18423-MGZ-J00 |
COLLAR, EX. PIPE MOUNTING Price: $5.65 |
| 16 |
36533-MKJ-E51 |
SENSOR, R. Price: $250.67 |
| 17 |
36534-MKJ-E51 |
SENSOR, L. Price: $250.67 |
| 18 |
90037-GHB-720 |
BOLT, FLANGE (8X35) Price: $2.84 |
| 19 |
90037-GHB-750 |
BOLT, FLANGE (8X45) Price: $3.35 |
| 20 |
90101-ML0-720 |
WASHER, PLAIN (8MM) (Honda Code 2920007) Price: $4.53 |
| 21 |
90103-KCM-620 |
BOLT, FLANGE (8X35) Price: $1.80 |
| 22 |
90106-MKJ-D00 |
BOLT, SPECIAL (6X8) Price: $3.49 |
| 23 |
90113-GFP-B00 |
SCREW, PAN (6X12) Price: $4.49 |
| 24 |
90304-MM5-000 |
NUT, FLANGE (7MM) Price: $6.20 |
