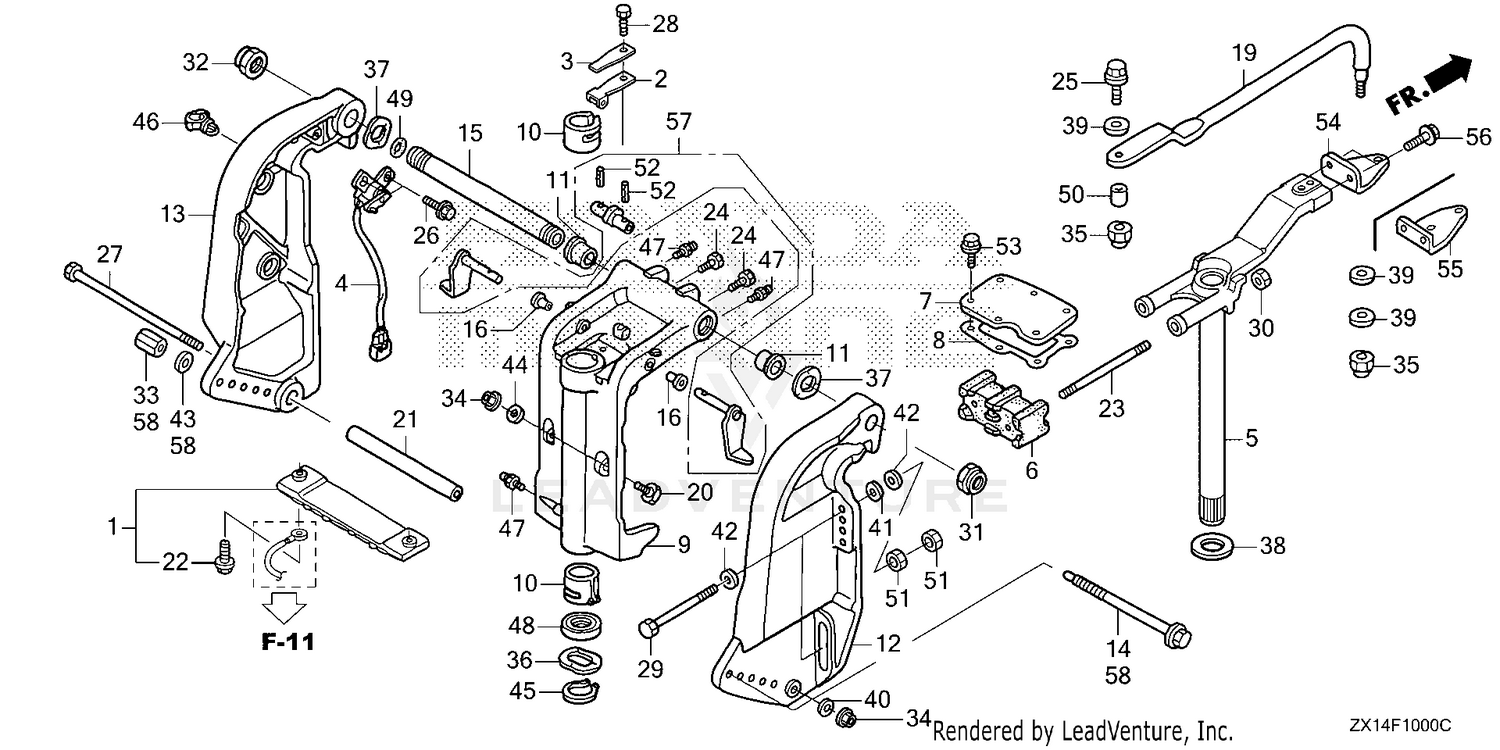

| Ref | Part Number | Description |
|---|
| 2 |
24210-ZV1-010 |
SEE PART DETAILS - PRI; SPRING, CLICK Price: $14.04 |
| 3 |
24221-ZV4-010 |
SEE PART DETAILS - PRI; SPRING, CLICK ASSIST Price: $10.00 |
| 4 |
35660-ZY6-013 |
SEE PART DETAILS - PRI; SENSOR ASSY., TRIM ANGLE Price: $203.52 |
| 5 |
50100-ZX1-000 |
FRAME, MOUNTING Price: $585.48 |
| 6 |
50151-ZW5-000 |
MOUNT, RUBBER (UPPER) Price: $141.52 |
| 7 |
50167-ZY6-000 |
HOLDER, MOUNTING (UPPER) Price: $111.12 |
| 8 |
50168-ZY6-003 |
SEE PART DETAILS - PRI; GASKET, MOUNTING HOLDER (UPPER) Price: $17.52 |
| 9 |
50201-ZW1-040ZA |
SEE PART DETAILS - PRI; CASE, SWIVEL *NH282MU* (OYSTER SILVER METALLIC-U) Price: $762.77 |
| 10 |
50211-ZV5-003 |
LINER, SWIVEL CASE Price: $11.40 |
| 11 |
50214-ZW1-000 |
BUSH, SWIVEL CASE Price: $13.17 |
| 12 |
50301-ZW1-070ZA |
SEE PART DETAILS - PRI; BRACKET, R. STERN *NH282MU* (OYSTER SILVER METALLIC-U) Price: $488.64 |
| 13 |
50311-ZW1-060ZA |
BRACKET, L. STERN *NH282MU* (OYSTER SILVER METALLIC-U) Price: $498.88 |
| 15 |
50381-ZY9-000 |
SEE PART DETAILS - PRI; SHAFT, TILTING Price: $229.80 |
| 16 |
50522-ZV5-000 |
BUSH, TILT ARM Price: $7.82 |
| 17 |
50527-ZW1-000 |
BRACKET, TILTING Price: $20.74 |
| 18 |
50529-ZW1-000 |
STOPPER, TILT Price: $108.06 |
| 19 |
53238-ZW1-010 |
SEE PART DETAILS - PRI; ROD, STEERING Price: $86.82 |
| 20 |
56516-ZW1-000 |
RECEIVER, THRUST Price: $25.74 |
| 21 |
56539-ZZ0-C00 |
SEE PART DETAILS - PRI; COLLAR, CYLINDER (LOWER) Price: $87.72 |
| 22 |
90009-ZW9-000 |
BOLT, FLANGE (6X23) Use from Frame SN 4800343. Price: $3.94 |
| 23 |
90101-ZW5-000 |
SEE PART DETAILS - PRI; BOLT, STUD (12X150) Price: $49.28 |
| 25 |
90105-ZW1-000 |
BOLT (3/8-24UNF) Price: $10.24 |
| 26 |
90105-ZW9-000 |
BOLT, FLANGE (6X20) (ENGINE NO.) Price: $3.94 |
| 27 |
90108-ZW1-000 |
BOLT, HEX. (10X235) Price: $49.16 |
| 28 |
90110-881-000 |
BOLT, HEX. (6X14) Price: $2.90 |
| 29 |
90129-ZZ3-000 |
BOLT, HEX. (12X119) Price: $18.02 |
| 30 |
90302-ZW5-003 |
NUT, FLANGE (12MM) Price: $8.42 |
| 31 |
90304-ZV5-013 |
SEE PART DETAILS - PRI; NUT, SELF-LOCK (7/8-14UNF) Price: $24.24 |
| 32 |
90304-ZW1-013 |
SEE PART DETAILS - PRI; NUT, SELF-LOCK (M25X2.0) Price: $26.96 |
| 34 |
90306-ZW4-003 |
SEE PART DETAILS - PRI; NUT, FLANGE (10MM) Price: $5.94 |
| 35 |
90307-ZV5-003 |
NUT, SELF-LOCK (3/8-24UNF) Price: $8.86 |
| 36 |
90501-ZV5-000 |
WASHER, WAVE (40MM) Price: $10.00 |
| 37 |
90502-ZV5-000 |
WASHER, WAVE (26MM) Price: $11.94 |
| 38 |
90504-ZV5-000 |
WASHER, THRUST (34MM) Price: $10.00 |
| 39 |
90514-ZV4-000 |
WASHER (10MM) Price: $2.32 |
| 40 |
90545-ZV5-000 |
WASHER, PLAIN (10MM) Price: $3.72 |
| 41 |
90552-ZV5-000 |
WASHER, PLAIN (12MM) Price: $6.40 |
| 42 |
90559-ZV5-000 |
WASHER, PLAIN (12MM) Price: $4.04 |
| 44 |
90563-ZV5-000 |
WASHER, PLAIN (10MM) Price: $3.34 |
| 45 |
90651-ZV5-000 |
CIRCLIP (OUTER) (39MM) Price: $10.76 |
| 46 |
90681-763-A01 |
CLIP, WIRE HARNESS Price: $11.04 |
| 47 |
90951-ZV7-010 |
SEE PART DETAILS - PRI; NIPPLE, GREASE Price: $2.60 |
| 48 |
91256-ZV5-003 |
SEE PART DETAILS - PRI; OIL SEAL (39.5X52X6) (ARAI) Price: $10.68 |
| 49 |
91352-ZV5-000 |
O-RING (15.54X2.26) Price: $2.38 |
| 50 |
91560-ZV5-000 |
COLLAR, STEERING ROD Price: $4.20 |
| 51 |
94001-12490-0S |
NUT, HEX. (12MM) Price: $2.60 |
| 52 |
94305-25203 |
PIN, SPRING (2.5X20) Price: $1.88 |
| 53 |
95801-08035-09 |
BOLT, FLANGE (8X35) Price: $1.70 |
| 57 |
04606-ZW1-000 |
STOPPER KIT, TILT Price: $183.44 |
