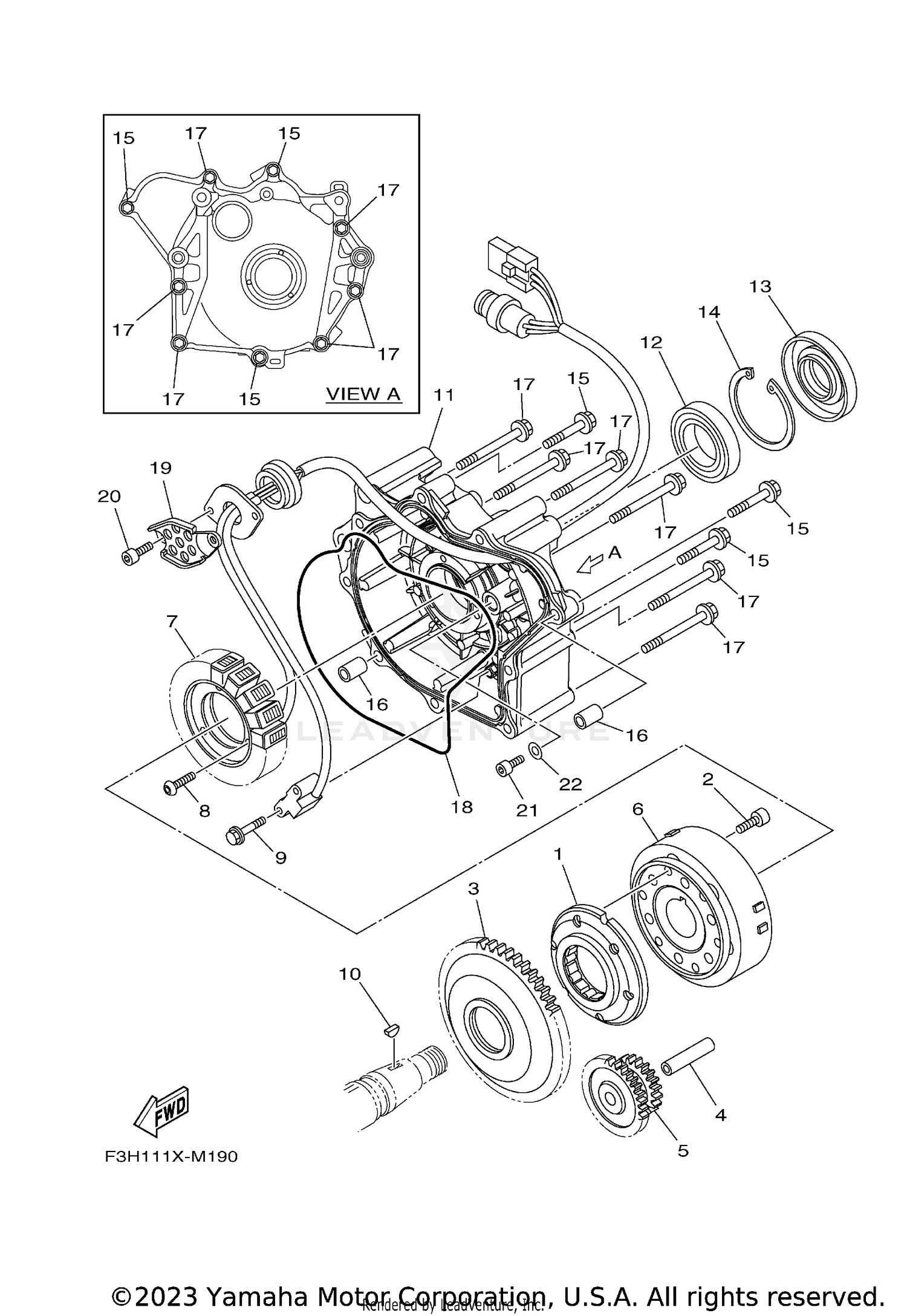

GENERATOR
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6S5-15590-00-00 | STARTER ONE-WAY ASSY Price: $273.99 |
| 2 | 91317-08020-00 | BOLT This part replaces 90110-08212-00. Price: $3.05 |
| 3 | 6LE-15515-00-00 | GEAR 3 This part replaces 6S5-15515-00-00. Price: $349.99 |
| 4 | 6S5-15521-00-00 | SHAFT 1 Price: $10.49 |
| 5 | 6S5-15517-00-00 | GEAR, IDLER 2 Price: $153.99 |
| 6 | 6S5-81450-01-00 | ROTOR ASSY Price: $489.49 |
| 7 | 6DE-81410-00-00 | STATOR ASSY Price: $488.49 |
| 8 | 90149-06182-00 | SCREW This part replaces 90149-06229-00. Price: $9.49 |
| 9 | 97513-05514-00 | BOLT, WITH WASHER Price: $3.99 |
| 10 | 90280-03047-00 | KEY, WOODRUFF Price: $6.49 |
| 11 | 6DE-81337-00-00 | COVER, FLYWHEEL Price: $930.99 |
| 12 | 93306-00809-00 | BEARING Price: $65.49 |
| 13 | 6LE-81167-00-00 | OIL SEAL This part replaces 6S5-81167-10-00. Price: $73.99 |
| 14 | 93420-72065-00 | CIRCLIP (70R) This part replaces 99009-72500-00. Price: $8.99 |
| 15 | 90105-08249-00 | BOLT, FLANGE Price: $2.49 |
| 16 | 99530-10114-00 | PIN, DOWEL Price: $2.65 |
| 17 | 90105-08250-00 | BOLT, FLANGE Price: $5.99 |
| 18 | 6S5-81168-00-00 | O-RING Price: $42.99 |
| 19 | 6S5-81328-00-00 | CLAMP Price: $8.49 |
| 20 | 91317-06014-00 | BOLT,HEX.SOCKET HEAD Price: $10.49 |
| 21 | 91317-05010-00 | BOLT, HEX. SOCKET HEAD Price: $2.75 |
