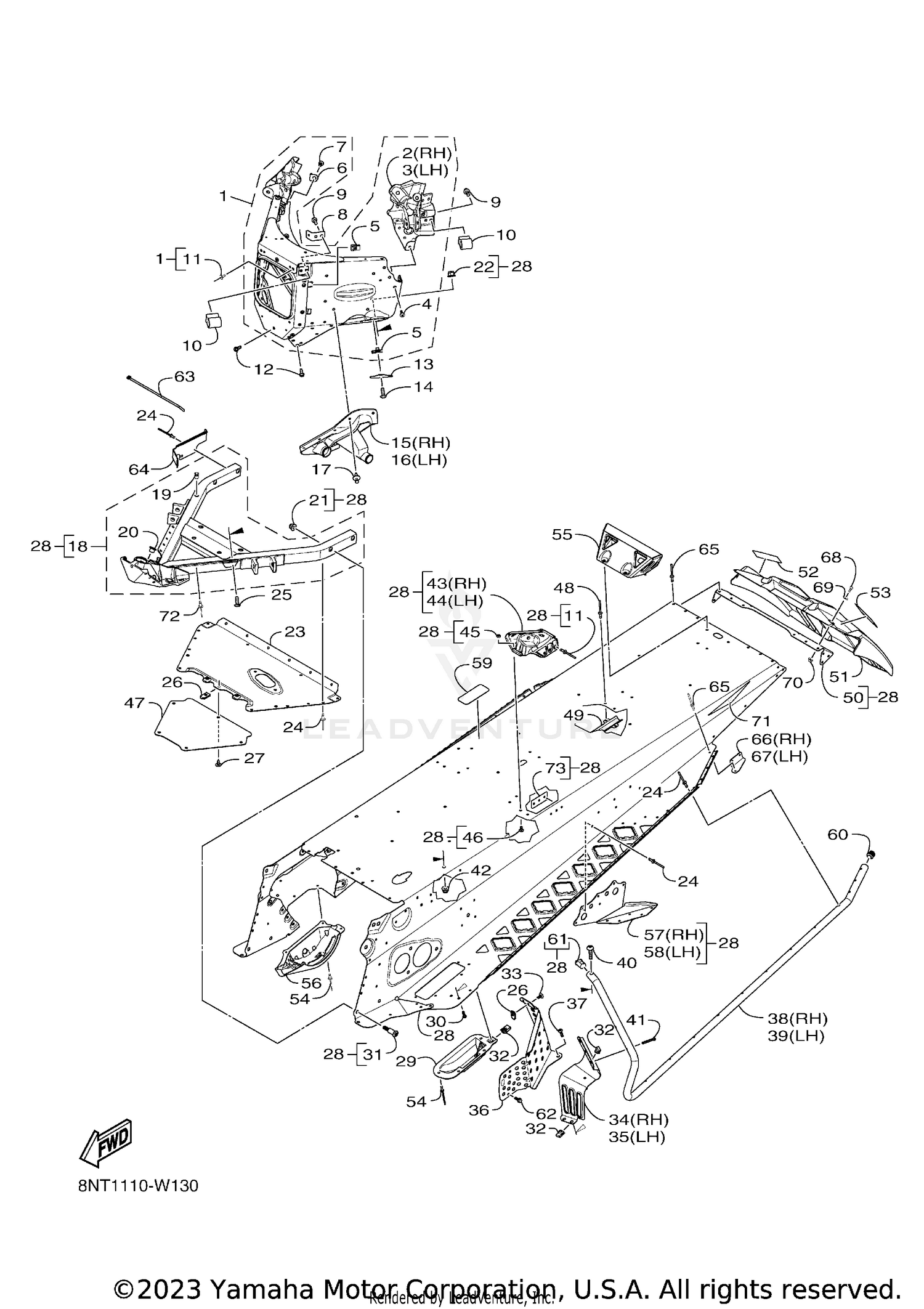

| Ref | Part Number | Description |
|---|
| 1 |
8NS-F191A-00-00 |
BULKHEAD Price: $562.99 |
| 2 |
8KG-F377J-00-00 |
HOLDER, ABSORBER 2 Price: $113.99 |
| 3 |
8KG-F376J-00-00 |
HOLDER, ABSORBER Price: $113.99 |
| 4 |
8JP-RA271-00-00 |
SCREW, M6X1X16 Price: $1.05 |
| 5 |
8JP-RA354-00-00 |
NUT, CLIP M6 Price: $1.30 |
| 6 |
8ML-E4744-00-00 |
BRACKET Price: $3.75 |
| 7 |
8JP-RA281-00-00 |
SCREW, TAPPING M6X1X20 Price: $1.05 |
| 8 |
8JP-F1138-00-00 |
GUSSET Price: $2.60 |
| 9 |
8JP-RA180-00-00 |
BOLT, FLANGE M6X1.0X16 Price: $1.90 |
| 10 |
8JP-F2219-00-00 |
BRACKET, UPPER Price: $21.99 |
| 12 |
8JP-RA201-00-00 |
SCREW, TAPPING Price: $1.00 |
| 13 |
8KG-F194X-00-00 |
BRACKET 1 Price: $9.49 |
| 14 |
8KG-RA235-00-00 |
SCREW, 1 Price: $0.75 |
| 15 |
8JP-F198J-00-00 |
COVER 3 Price: $46.99 |
| 16 |
8JP-F198F-00-00 |
COVER 1 Price: $46.99 |
| 17 |
8JP-RA511-00-00 |
RIVET, 2 Price: $1.05 |
| 23 |
8NT-F114G-00-00 |
PANEL, UNDER Price: $51.99 |
| 25 |
8JP-RA258-00-00 |
SCREW, M6X1.0X20 Price: $1.05 |
| 27 |
8KC-RA290-00-00 |
SCREW Price: $2.25 |
| 28 |
8NT-F1950-00-00 |
REAR FRAME COMP. Price: $1,149.99 |
| 29 |
8JP-F5717-00-00 |
PROTECTOR, DISC BRAKE Price: $18.49 |
| 30 |
8JP-RA251-00-00 |
SCREW, M5X1.0X16 Price: $0.55 |
| 32 |
8JP-RA353-00-00 |
NUT, CLIP M5 Price: $3.60 |
| 33 |
8JP-RA202-00-00 |
SCREW, TAPPING 1/4-20X0.5 Price: $1.70 |
| 34 |
8JW-F1996-40-00 |
REINFORCEMENT SUB FRAME FR 2 Price: $51.99 |
| 35 |
8JW-F1995-40-00 |
REINFORCEMENT SUB FRAME FR 1 Price: $36.99 |
| 36 |
8JW-F5718-60-00 |
PROTECTOR, DISK BR Price: $72.99 |
| 37 |
8JP-RA244-00-00 |
SCREW, M5X0.8X20 Price: $0.60 |
| 38 |
8NT-F192E-00-00 |
REINFORCEMENT, FRA Price: $110.99 |
| 39 |
8NT-F1929-00-00 |
REINFORCEMENT, FRA Price: $110.99 |
| 40 |
8JP-RA273-00-00 |
SCREW, M8X1.25X35 Price: $3.10 |
| 41 |
8JP-RA247-00-00 |
SCREW, M5X0.8X35 Price: $1.35 |
| 47 |
8JP-F114G-00-00 |
PANEL, UNDER Price: $17.49 |
| 49 |
8MH-H2589-00-00 |
PROTECTER, WIRE HARNESS Price: $20.99 |
| 51 |
8NT-K7595-00-00 |
FLAP Price: $44.99 |
| 52 |
8JP-K7762-S0-00 |
LABEL, WARNING 2 (FRENCH) Price: $3.35 |
| 53 |
8JP-K7762-70-00 |
LABEL, WARNING 2 (ENGLISH) Price: $3.75 |
| 55 |
8JW-F117E-20-00 |
BRACKET, TAILLIGHT Price: $44.99 |
| 56 |
8JP-F2147-00-00 |
PROTECTOR, CHAIN Price: $8.49 |
| 59 |
8LN-F195A-00-00 |
PROTECTOR, FRAME A Price: $4.15 |
| 60 |
8NT-F312G-00-00 |
PLUG, HOLE Price: $1.05 |
| 62 |
8JP-RA179-00-00 |
BOLT, FLANGE M6X1.0X12 Price: $2.25 |
| 64 |
8ND-F194X-00-00 |
BRACKET,1 Price: $21.99 |
| 66 |
8NT-F1137-00-00 |
GUSSET Price: $13.49 |
| 67 |
8NT-F1136-00-00 |
GUSSET Price: $13.49 |
| 68 |
8LJ-RA239-00-00 |
SCREW, 5 Price: $0.80 |
| 69 |
8ML-RA411-00-00 |
WASHER, PLAIN 0.194 Price: $2.10 |
| 70 |
8JP-RA363-00-00 |
NUT, FLANGE LOCKING M5X0.8 Price: $1.35 |
| 71 |
8JP-F151A-10-00 |
LABEL 1 This part replaces 8JP-F151A-00-00. Price: $9.99 |
