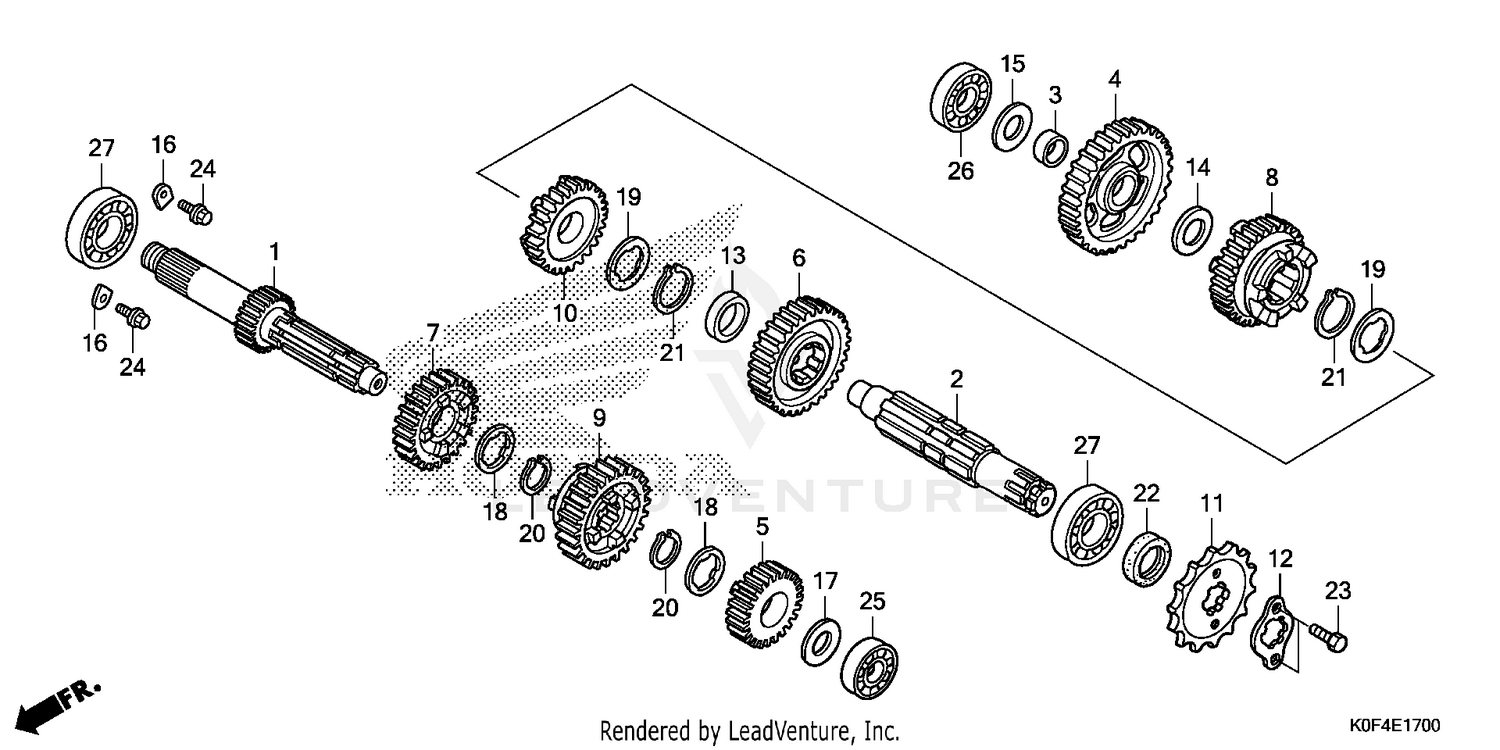

| Ref | Part Number | Description |
|---|
| 1 |
23211-KPH-900 |
MAINSHAFT (14T) Price: $28.84 |
| 2 |
23221-KPH-900 |
COUNTERSHAFT Price: $27.02 |
| 3 |
23415-KPH-900 |
BUSH (15MM) Price: $5.93 |
| 4 |
23421-KPH-900 |
GEAR, COUNTERSHAFT FIRST (35T) Price: $19.33 |
| 5 |
23431-KPH-700 |
GEAR, MAINSHAFT SECOND (20T) Price: $24.44 |
| 6 |
23441-KPH-900 |
GEAR, COUNTERSHAFT SECOND (31T) Price: $13.07 |
| 7 |
23451-KPH-700 |
GEAR, MAINSHAFT THIRD (20T) Price: $25.87 |
| 8 |
23461-KPH-900 |
GEAR, COUNTERSHAFT THIRD (23T) Price: $24.09 |
| 9 |
23471-K41-N00 |
GEAR, MAINSHAFT FOURTH (26T) Price: $19.89 |
| 10 |
23481-K41-N00 |
GEAR, COUNTERSHAFT FOURTH (24T) Price: $21.95 |
| 11 |
23801-K26-900 |
SPROCKET, DRIVE (15T) Price: $22.91 |
| 12 |
23802-GN5-910 |
PLATE, FIXING Price: $6.18 |
| 13 |
23911-KPG-T00 |
COLLAR (5.1MM) Price: $1.60 |
| 14 |
90412-187-000 |
WASHER, THRUST (15MM) Price: $2.45 |
| 15 |
90412-KPH-900 |
WASHER, SPECIAL (12X23) Price: $0.80 |
| 16 |
90441-KRM-840 |
PLATE, BEARING HOLDER Price: $0.69 |
| 17 |
90452-KPH-C00 |
WASHER This part replaces 90452-KGH-900. Price: $3.02 |
| 18 |
90461-115-000 |
WASHER, SPLINE (17MM) Price: $3.04 |
| 19 |
90461-GB4-770 |
WASHER, SPLINE (20X1.2) Price: $3.87 |
| 20 |
90601-001-000 |
CIRCLIP (OUTER) (17MM) Price: $1.65 |
| 21 |
90605-200-000 |
SET-RING (20MM) Price: $3.35 |
| 22 |
91204-KPH-902 |
OIL SEAL (17X30X5) (NOK) Price: $1.44 |
| 23 |
92101-06010-0A |
BOLT, HEX. (6X10) Price: $1.47 |
| 24 |
95701-06014-00 |
BOLT, FLANGE (6X14) (Honda Code 2410884) Price: $1.15 |
| 25 |
96100-60010-00 |
BEARING, RADIAL BALL (6001) Price: $9.64 |
| 26 |
96100-62010-00 |
BEARING, RADIAL BALL (6201) Price: $10.15 |
