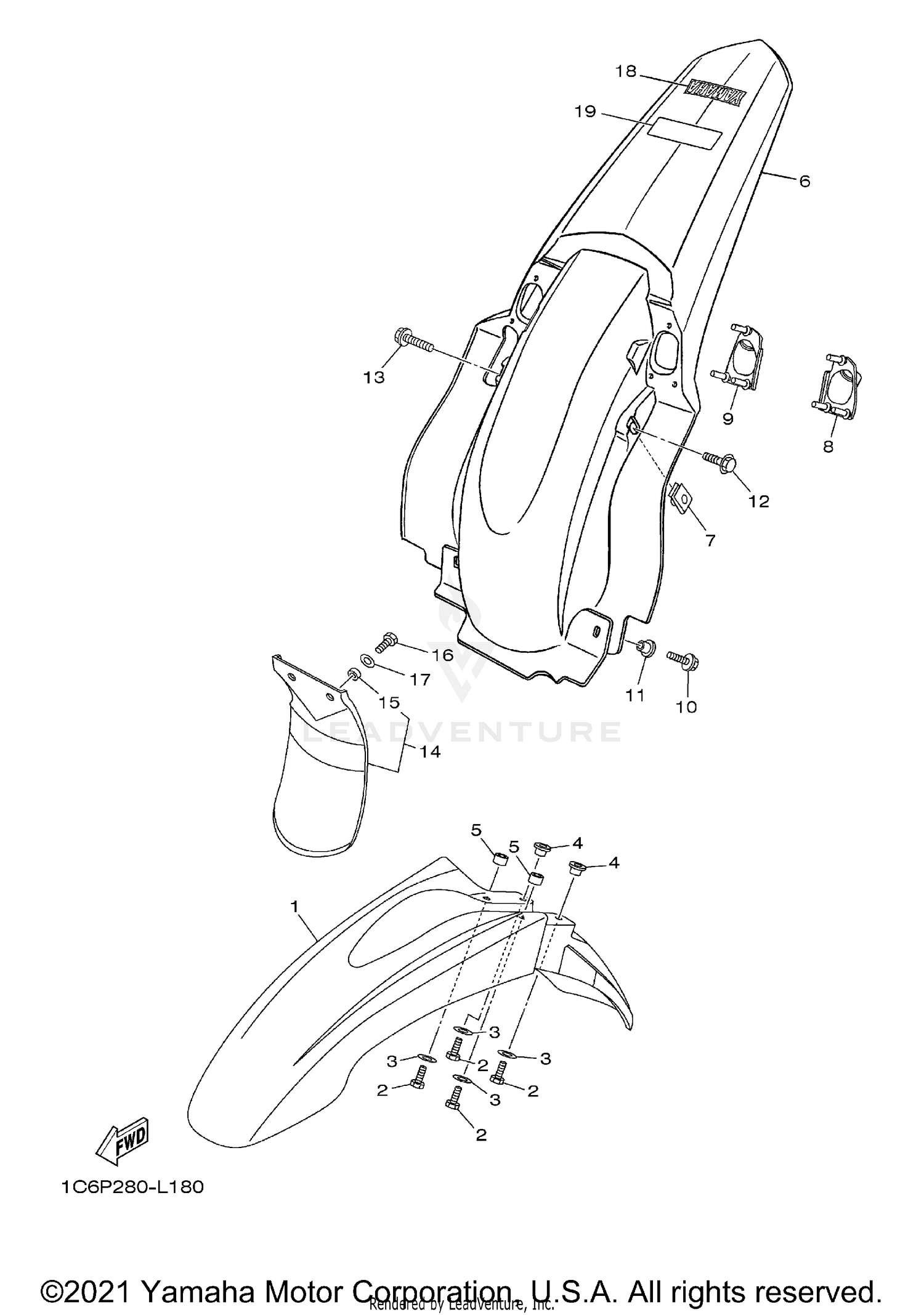

| Ref | Part Number | Description |
|---|
| 1 |
5RM-F1511-00-00 |
FENDER, FRONT Price: $101.99 |
| 2 |
97017-06020-00 |
BOLT This part replaces 9700M-06020-00. Price: $4.06 |
| 3 |
90201-06020-00 |
WASHER, PLATE This part replaces 90201-064H0-00. Price: $10.49 |
| 4 |
90387-061V4-00 |
COLLAR Price: $8.49 |
| 5 |
90387-06023-00 |
COLLAR Price: $10.49 |
| 6 |
1C6-F1611-00-00 |
FENDER, REAR Price: $72.99 |
| 7 |
1C6-F1635-00-00 |
NUT, REAR FENDER Price: $9.49 |
| 8 |
1C6-F163A-00-00 |
COVER, REAR FENDER 1 Price: $4.65 |
| 9 |
1C6-F163E-00-00 |
COVER, REAR FENDER 2 Price: $4.60 |
| 10 |
95817-06012-00 |
BOLT, FLANGE This part replaces 9580M-06012-00. Price: $1.95 |
| 11 |
90387-06681-00 |
COLLAR Price: $10.49 |
| 12 |
95817-06012-00 |
BOLT, FLANGE This part replaces 9580M-06012-00. Price: $1.95 |
| 13 |
95817-06030-00 |
BOLT,FLANGE This part replaces 9582M-06030-00. Price: $4.65 |
| 14 |
5RM-F1642-00-00 |
GUARD, FLAP Price: $19.49 |
| 15 |
90387-060T4-00 |
COLLAR This part replaces 90387-10W66-00. Price: $11.49 |
| 16 |
97017-06016-00 |
BOLT This part replaces 9700M-06016-00. Price: $9.49 |
| 17 |
90201-06020-00 |
WASHER, PLATE This part replaces 90201-064H0-00. Price: $10.49 |
| 18 |
B68-F153E-00-00 |
EMBLEM, YAMAHA Price: $18.49 |
