Parts Catalog

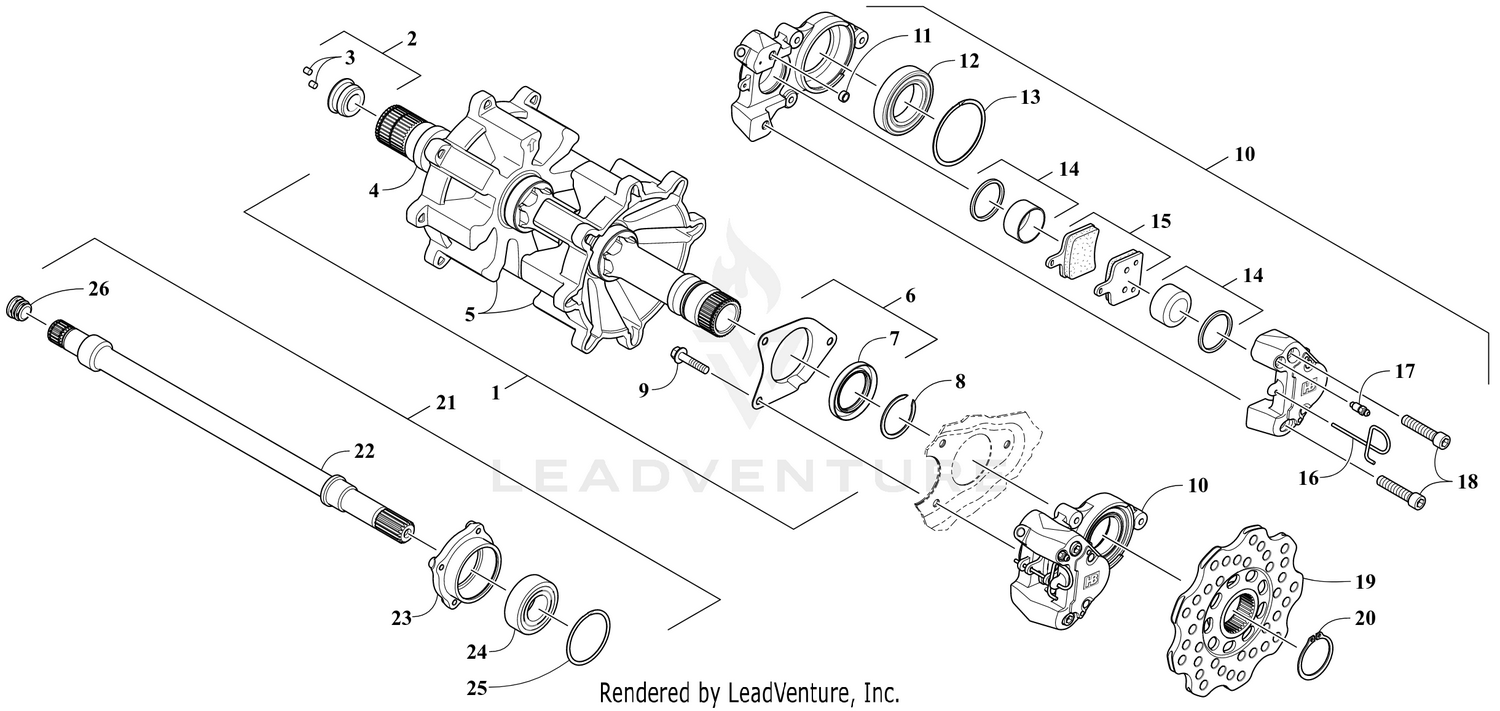

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES [106189]

Parts (19)

Ref	Part Number	Description
3	2602-211	Magnet Price: $7.23
4	2602-740	Driveshaft Price: $232.95
5	2602-911	Sprocket, Drive Price: $98.95
7	1602-344	Seal Price: $6.95
8	2602-233	Ring, Retaining Price: $2.42
9	8408-831	Screw, Cap Price: $1.08
11	2602-411	Seal Price: $5.59
12	2602-198	Bearing Price: $26.95
13	2602-280	Ring, Retaining Price: $3.88
14	2602-643	Piston Set Price: $107.95
16	2602-409	Pin, Retaining Price: $6.06
17	2602-408	Fitting, Bleed Price: $7.23
18	2602-644	Screw, Cap Price: $36.95
19	2602-720	Disc, Brake Price: $248.95
20	2602-629	Ring, Retaining Price: $2.91
22	3602-167	Shaft, Driven Price: $204.95
23	2602-422	Hub, Bearing Price: $38.95
24	2602-247	Bearing Price: $21.77
25	2602-236	Ring, Retaining Price: $3.38
