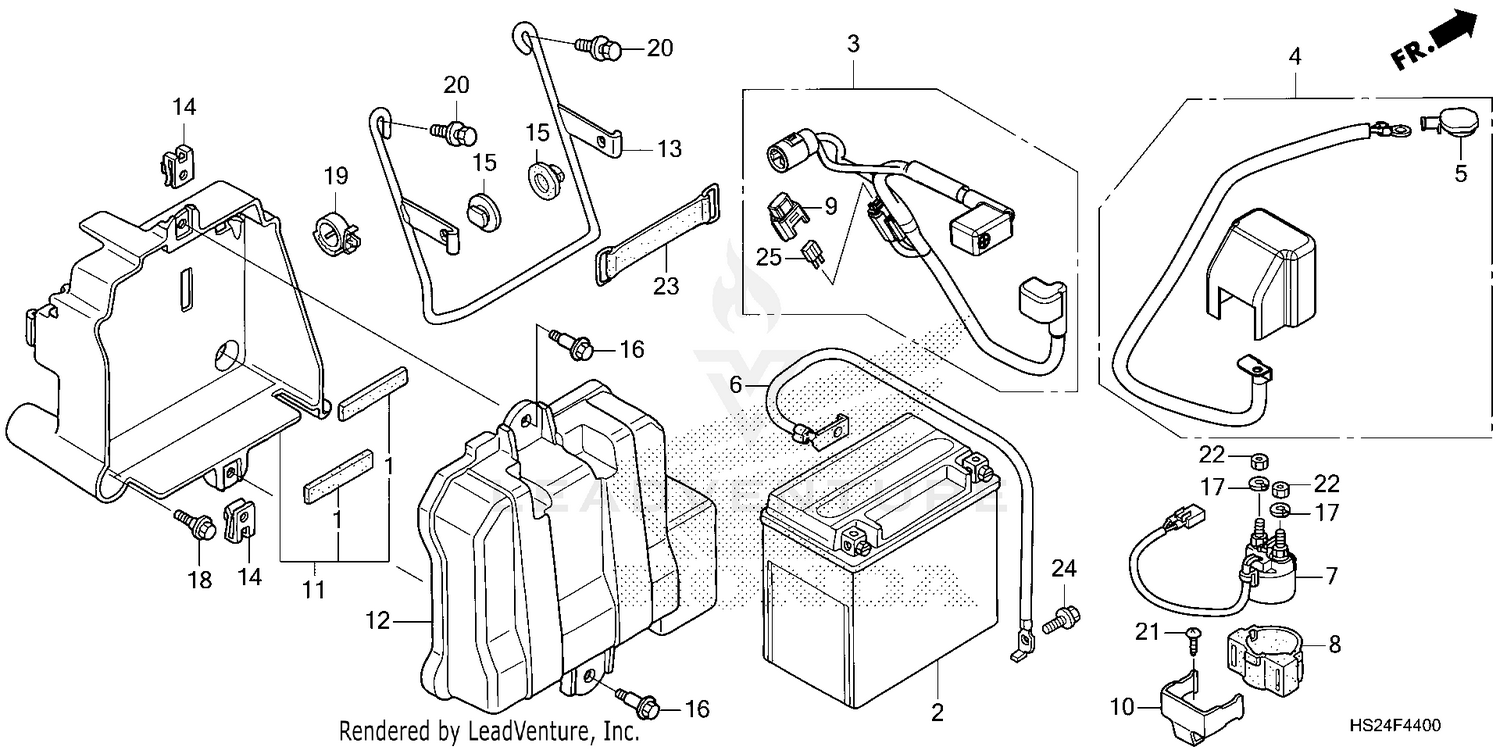

| Ref | Part Number | Description |
|---|
| 1 |
17511-HM5-670 |
RUBBER, TANK SPACER Price: $13.60 |
| 2 |
31500-MCA-013AH |
BATTERY,YTX20L-BS This part replaces 31500-MCA-013. Price: $157.42 |
| 3 |
32401-HS2-A50 |
CABLE, RELAY BATT Price: $31.48 |
| 4 |
32405-HN8-010 |
CABLE, STARTER MOTOR Price: $33.98 |
| 5 |
32411-MEW-920 |
COVER, STARTER MOTOR TERMINAL Price: $4.82 |
| 6 |
32601-HN8-650 |
CABLE, BATTERY GROUND (N/A: USE CABLE SET 32010-HN8-000) Price: $18.64 |
| 7 |
35850-HN8-003 |
SWITCH ASSY., STARTER MAGNETIC Price: $69.69 |
| 8 |
35856-425-000 |
RUBBER, MAGNETIC SHOCK Price: $13.20 |
| 9 |
38211-KRG-003 |
COVER, FUSE Price: $3.05 |
| 10 |
50326-HC4-000 |
STAY, STARTER MAGNETIC Price: $10.44 |
| 11 |
50400-HN8-A60 |
BOX, BATTERY Price: $93.45 |
| 12 |
50403-HN8-000 |
COVER, BATTERY Price: $9.05 |
| 13 |
50404-HN8-000 |
ROD, BATTERY BOX Price: $39.09 |
| 14 |
64529-KCH-780 |
NUT, CLIP (6MM) (NA USE ALT:64529-MN5-000) Price: Call Us |
| 15 |
77103-GK4-000 |
RUBBER, SEAT STOPPER Price: $5.62 |
| 16 |
90020-438-000 |
BOLT, FLANGE (6X20) Price: $4.20 |
| 17 |
90052-ZA0-800 |
WASHER, SPRING (6MM) (Honda Code 1310549) Price: $1.36 |
| 18 |
90104-KAB-000 |
BOLT, FLANGE (6MM) Price: $3.40 |
| 19 |
90684-ZA0-601 |
CLIP, WIRE HARNESS Price: $3.67 |
| 20 |
93404-08020-07 |
BOLT-WASHER (8X20) Price: $2.02 |
| 21 |
93903-25220 |
SCREW, TAPPING (5X12) Price: $0.95 |
| 22 |
94002-06390-0S |
NUT, HEX. (6MM) Price: $1.06 |
| 23 |
95012-17001 |
BAND F, BATTERY (155MM) Price: $9.07 |
| 24 |
95701-06012-08 |
BOLT, FLANGE (6X12) Price: $1.70 |
