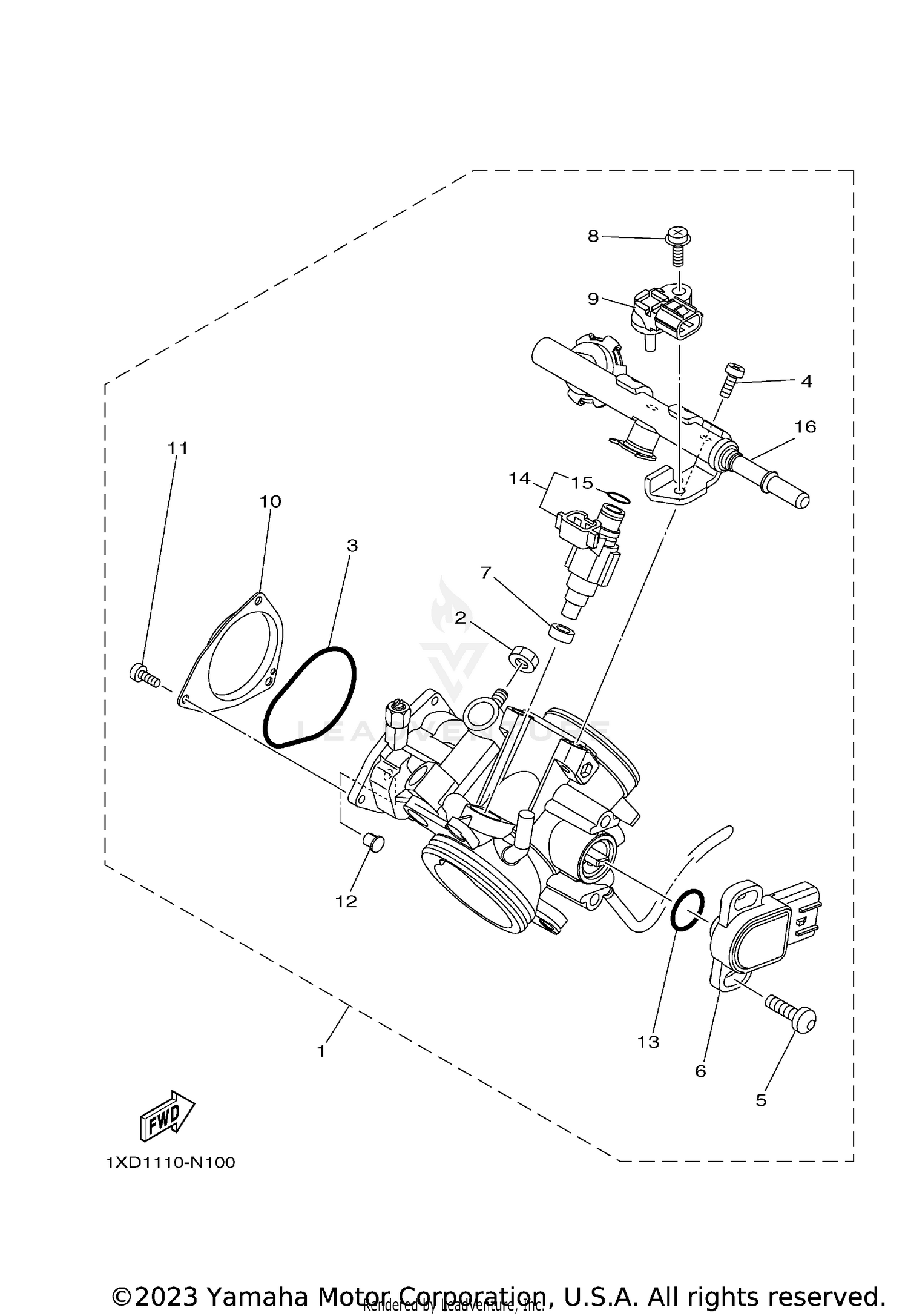

THROTTLE BODY ASSY 1
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1XD-13750-02-00 | THROTTLE BODY ASSY This part replaces 1XD-13750-00-00. Price: $774.99 |
| 2 | 1S3-14161-00-00 | NUT, CABLE ADJUSTING Price: $8.49 |
| 3 | 5LP-14147-00-00 | O-RING Price: $12.99 |
| 4 | 98517-06012-00 | SCREW,PAN This part replaces 92502-06012-00. Price: $4.10 |
| 5 | 8CC-14216-10-00 | SCREW Price: $8.99 |
| 6 | 3B4-85885-01-00 | THROTTLE SENSOR AS This part replaces 3B4-85885-00-00. Price: $78.99 |
| 7 | 8FP-13556-00-00 | RUBBER, INJECTOR Price: $15.49 |
| 8 | 2C0-14216-00-00 | SCREW Price: $4.20 |
| 9 | 5S7-82380-00-00 | SENSOR, PRESSURE Price: $203.99 |
| 10 | 5UG-14293-00-00 | COVER 1 Price: $14.49 |
| 11 | 98517-04006-00 | SCREW, PAN HEAD This part replaces 98502-04006-00. Price: $4.50 |
| 12 | 1UY-14155-00-00 | GUIDE, CABLE END Price: $19.99 |
| 13 | 5YP-14562-00-00 | O-RING Price: $8.49 |
| 14 | 1XD-13761-00-00 | INJECTOR Price: $177.99 |
| 15 | 1XD-14147-00-00 | O-RING Price: $15.49 |
