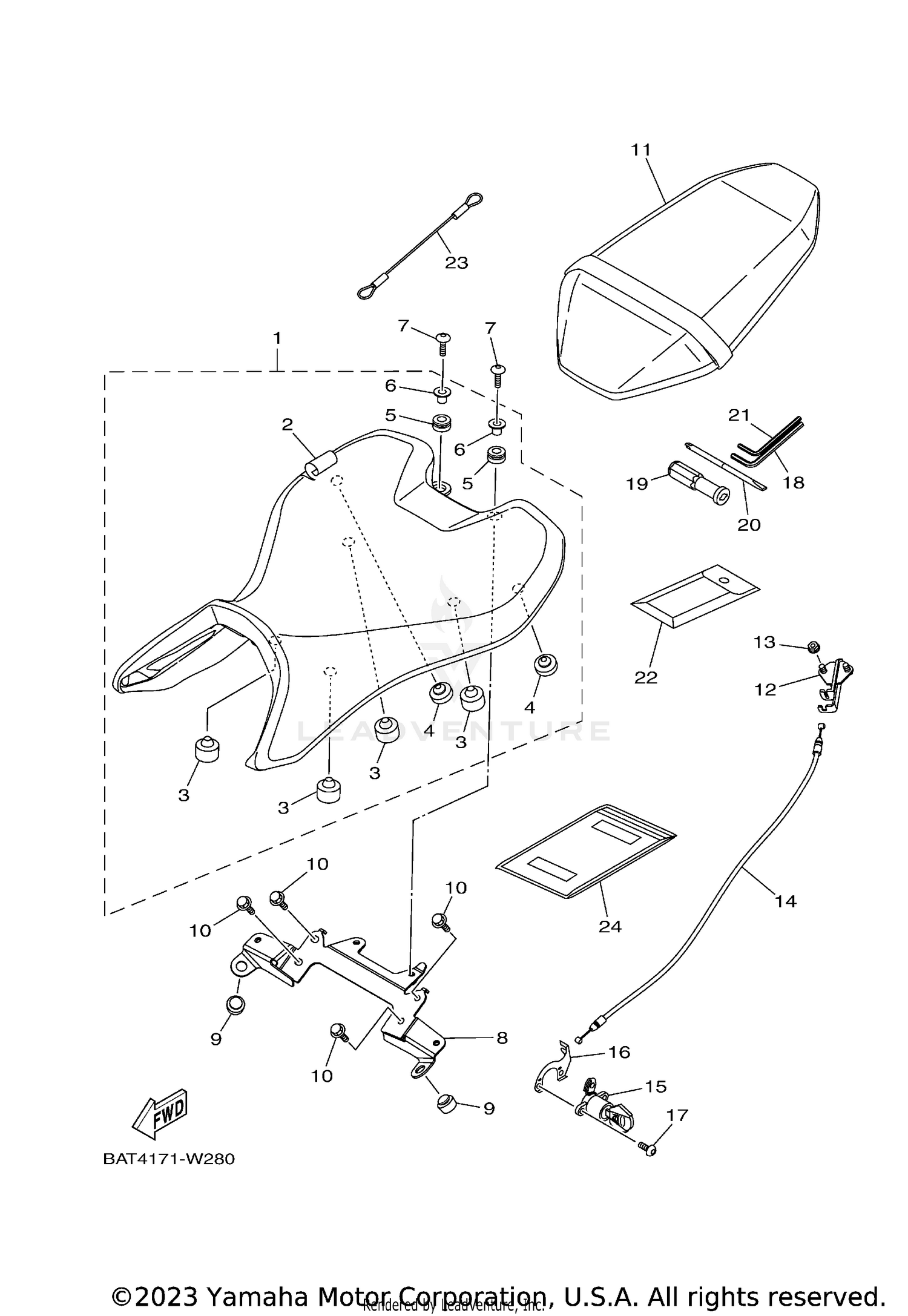

| Ref | Part Number | Description |
|---|
| 1 |
B4C-24710-01-00 |
SINGLE SEAT ASSY Price: $158.99 |
| 3 |
371-27114-00-00 |
STOPPER, MAIN STAND Price: $8.49 |
| 4 |
22W-24741-00-00 |
PAD, SEAT Price: $9.49 |
| 5 |
90480-14604-00 |
GROMMET Price: $9.49 |
| 6 |
90387-07391-00 |
COLLAR Price: $10.49 |
| 7 |
90111-06139-00 |
BOLT, HEX. SOCKET BUTTON Price: $4.00 |
| 8 |
BAT-21131-00-00 |
BRACKET Price: $48.99 |
| 9 |
157-27114-00-00 |
STOPPER, MAIN STAND Price: $10.99 |
| 10 |
95D32-06010-00 |
BOLT, FLANGE DEEP RECESS Price: $0.80 |
| 11 |
BAT-24750-01-00 |
TANDEM SEAT ASSY Price: $150.99 |
| 12 |
5BP-F4780-00-00 |
SEAT LOCK ASSY Price: $13.49 |
| 13 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 14 |
BAT-2478E-00-00 |
CABLE, SEAT LOCK Price: $9.49 |
| 15 |
3CK-W2470-00-00 |
SEAT LOCK ASSY This part replaces 2TV-W2470-00-00. Price: $91.99 |
| 16 |
23P-2117K-01-00 |
STAY, LOCK Price: $7.49 |
| 17 |
90149-06030-00 |
SCREW Price: $6.49 |
| 18 |
14B-28164-00-00 |
WRENCH, HEXAGON 8 Price: $4.75 |
| 19 |
2H7-28151-00-00 |
GRIP, DRIVER Price: $7.49 |
| 20 |
137-28152-00-00 |
DRIVER Price: $4.35 |
| 21 |
23P-28164-00-00 |
WRENCH, HEXAGON 8 Price: $3.65 |
| 22 |
BAT-28100-00-00 |
TOOL KIT Price: $26.99 |
| 23 |
2S3-21398-00-00 |
HANGER, HELMET Price: $25.99 |
