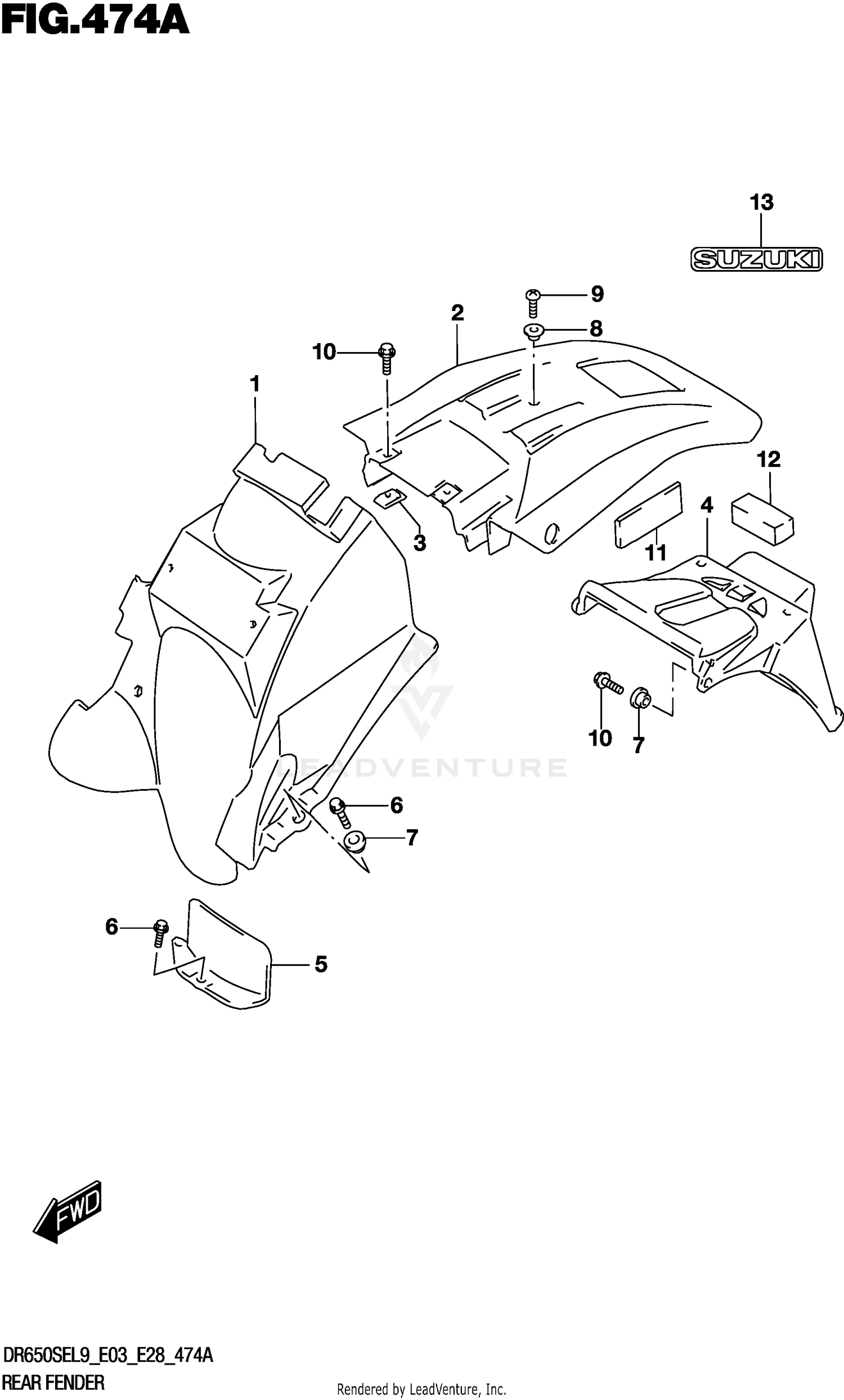

REAR FENDER
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 63112-32E00 | BODY,REAR FENDER FRONT Price: $80.48 |
| 2 | 63113-32E30-019 | BODY,RR FENDER RR (BLACK) Price: $141.72 |
| 3 | 47153-19C01 | PLATE,FRAME COVER Price: $8.59 |
| 4 | 63311-32E00 | EXTENSION,REAR FENDER Price: $67.32 |
| 5 | 63411-32E00 | MUD GUARD,REAR FENDER Price: $20.02 |
| 6 | 09113-06001 | BOLT (6X16) Price: $3.33 |
| 7 | 09169-06073 | WASHER Price: $4.16 |
| 8 | 09169-06053 | WASHER Price: $1.35 |
| 9 | 09139-06237 | SCREW(6X16) This part replaces 09139-06067. Price: $2.85 |
| 10 | 01550-0616B | BOLT Price: $2.87 |
| 11 | 63118-32E00 | CUSHION,REAR FENDER Price: $10.54 |
| 13 | 68177-04A00-CT5 | EMBLEM, "SUZUKI" (SILVER,BLAC Price: $12.29 |
