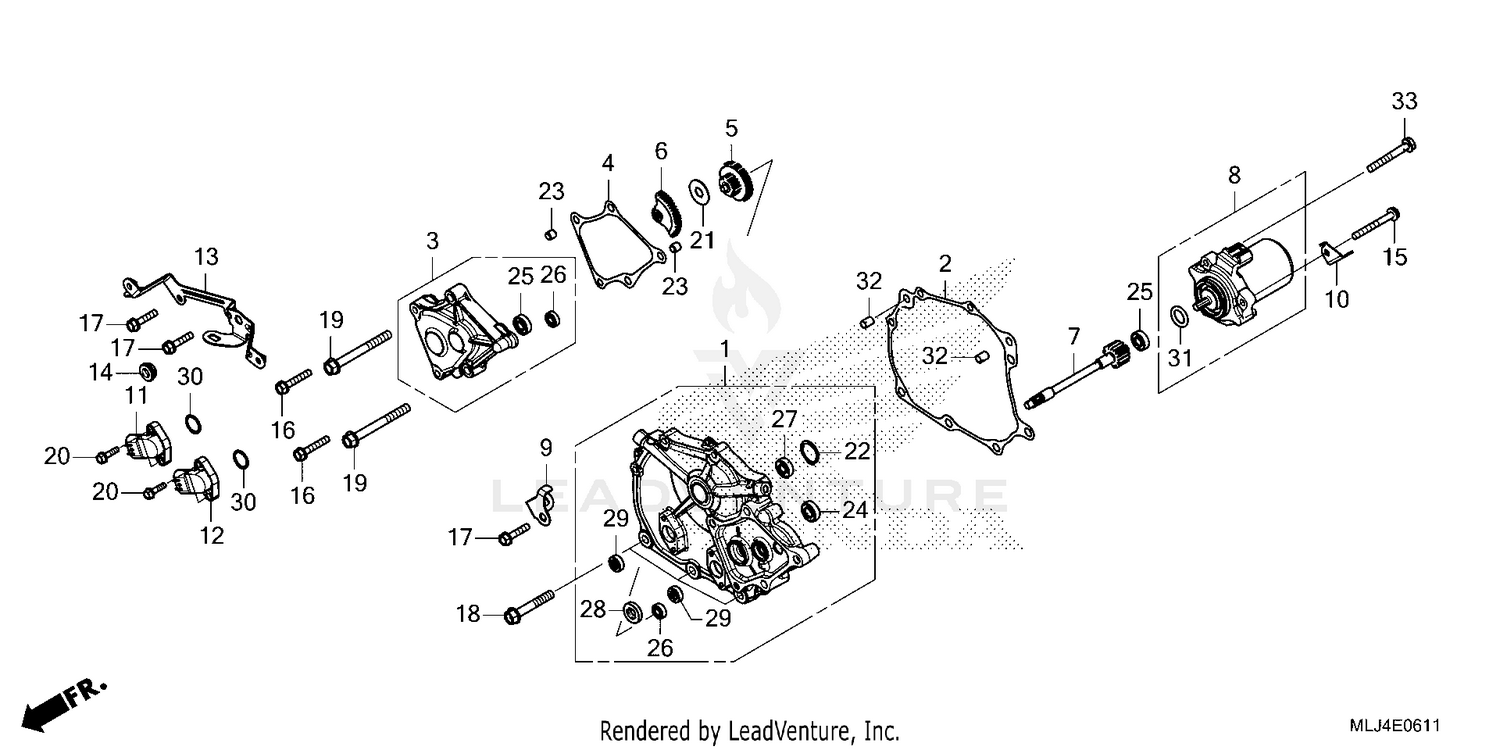

| Ref | Part Number | Description |
|---|
| 1 |
11360-MKC-A00 |
COVER, SHIFT Price: $116.56 |
| 2 |
11365-MKC-A01 |
GASKET, SHIFT COVER Price: $16.82 |
| 3 |
11520-MKC-A00 |
COVER, REDUCTION GEAR Price: $89.02 |
| 4 |
11525-MKC-A01 |
GASKET, REDUCTION COVER Price: $9.11 |
| 5 |
24615-MKC-A01 |
GEAR, REDUCTION (65T/19T) Price: $86.64 |
| 6 |
24616-MKC-A01 |
GEAR, REDUCTION (50T) Price: $63.20 |
| 7 |
24618-MKC-A00 |
SHAFT, REDUCTION GEAR Price: $74.60 |
| 8 |
31300-KVZ-632 |
MOTOR, RATIO CONTROL This part replaces 31300-KVZ-631. Price: $329.27 |
| 9 |
32151-MKC-A00 |
STAY A, CLIP Price: $6.25 |
| 10 |
32163-HL4-000 |
STAY, HARNESS CLIP (C) Price: $4.27 |
| 11 |
38800-MKC-A01 |
SENSOR ASSY., ANGLE (350DEGREE) Price: $160.29 |
| 12 |
38810-MKC-A01 |
SENSOR ASSY., ANGLE (40DEGREE) Price: $160.29 |
| 13 |
64412-MKC-A00 |
STAY, FR. (LOWER) (INNER) Price: $15.85 |
| 14 |
64586-MBW-D20 |
RUBBER, AIR DUCT COVER SETTING Price: $3.85 |
| 15 |
90009-HA0-000 |
BOLT, FLANGE (6X52) This part replaces 90001-MB0-000. Price: $5.33 |
| 16 |
90031-MKC-A00 |
BOLT, FLANGE (6X35) Price: $2.58 |
| 17 |
90033-MKC-A00 |
BOLT, FLANGE (6X28) Price: $2.58 |
| 18 |
90076-MKC-A00 |
BOLT, FLANGE (8X50) Price: $3.71 |
| 19 |
90077-MKC-A00 |
BOLT, FLANGE (8X75) Price: $3.89 |
| 20 |
90097-MKC-A00 |
BOLT, FLANGE (5X20) Price: $2.42 |
| 21 |
90512-KRN-730 |
WASHER (26X10.5) Price: $2.96 |
| 22 |
90606-MKC-A00 |
CIRCLIP (INNER) (16) Price: $2.91 |
| 23 |
90702-MB0-000 |
PIN, DOWEL (8X8) Price: $4.35 |
| 24 |
91025-MGS-D21 |
BEARING, RADIAL BALL (699ZZ) Price: $12.55 |
| 25 |
91026-MGS-D21 |
BEARING, RADIAL BALL (607ZZ) Price: $11.16 |
| 26 |
91027-MGS-D21 |
BEARING, RADIAL BALL (696ZZ) Price: $9.93 |
| 27 |
91030-MKC-A01 |
BEARING, RADIAL BALL (8X16X4) Price: $9.96 |
| 28 |
91204-HP1-601 |
OIL SEAL (10X21X5) Price: $4.62 |
| 29 |
91254-792-003 |
OIL SEAL (8X16X6) This part replaces 91208-MS2-611. Price: $3.42 |
| 30 |
91308-HN0-A10 |
O-RING, ANGLE SENSOR Price: $3.11 |
| 31 |
91351-HM8-A51 |
O-RING, CONTROL MOTOR Price: $4.80 |
| 32 |
94301-08100 |
PIN A, DOWEL (8X10) Price: $2.35 |
