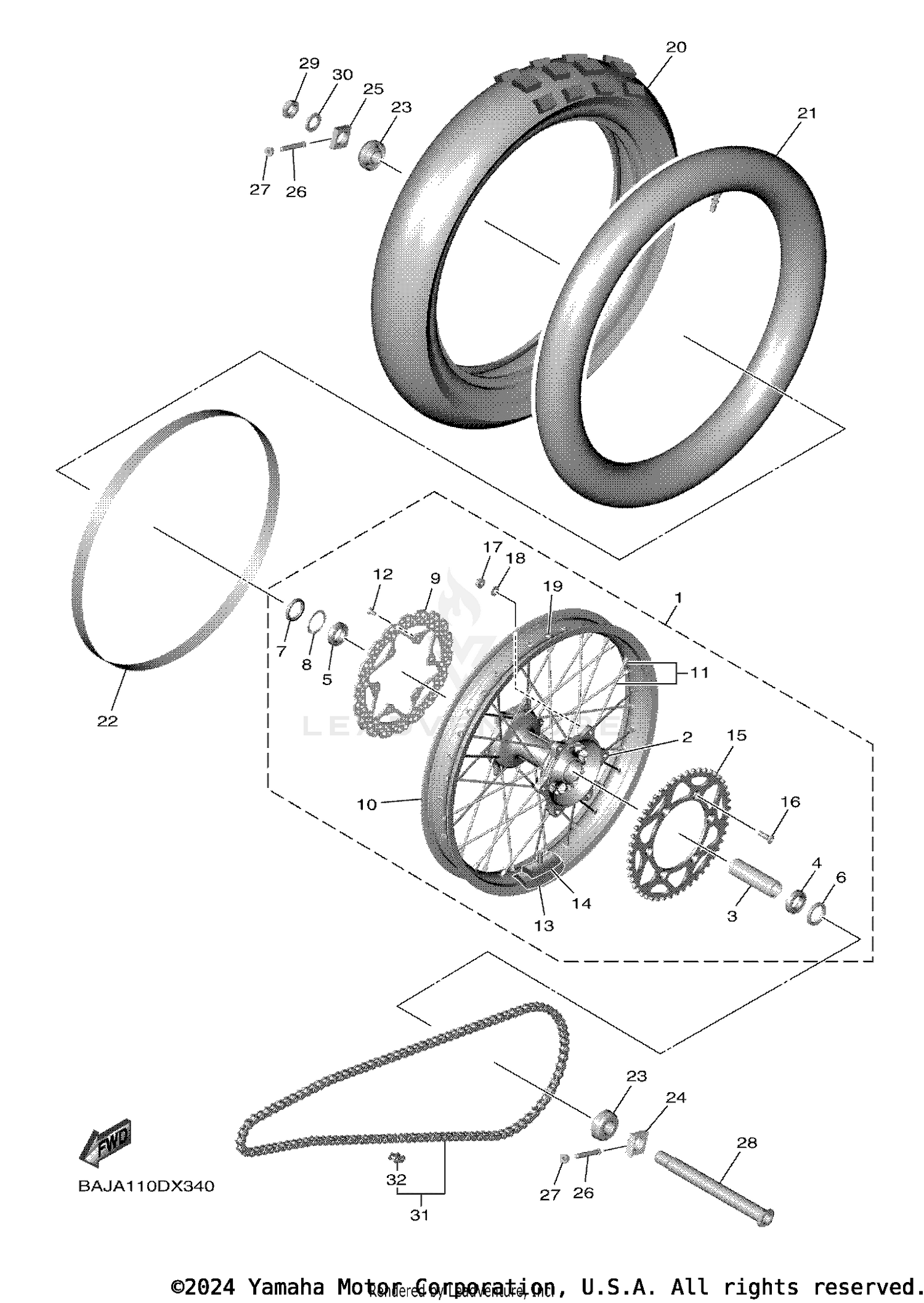

| Ref | Part Number | Description |
|---|
| 1 |
BAJ-25302-00-00 |
REAR WHEEL SUB-ASS Price: $559.99 |
| 2 |
5ET-25311-00-00 |
HUB, REAR Price: $336.99 |
| 3 |
5ET-25317-00-00 |
SPACER, BEARING Price: $53.99 |
| 4 |
93306-27212-00 |
BEARING Price: $82.99 |
| 5 |
93306-07202-00 |
BEARING Price: $42.99 |
| 6 |
93106-30001-00 |
OIL SEAL Price: $13.49 |
| 7 |
93106-30045-00 |
OIL SEAL Price: $11.49 |
| 8 |
99009-45500-00 |
CIRCLIP Price: $2.60 |
| 9 |
B2W-2582W-00-00 |
DISK, REAR BRAKE 2 Price: $146.99 |
| 10 |
94421-18044-00 |
RIM (2.15-18) Price: $408.99 |
| 11 |
5GS-25304-00-00 |
SPOKE SET, REAR Price: $193.99 |
| 12 |
90151-06079-00 |
SCREW, COUNTERSUNK This part replaces 90151-06051-00. Price: $3.45 |
| 13 |
3JE-25394-00-00 |
SPACER, BEAD Price: $41.99 |
| 14 |
4XM-25364-00-00 |
DAMPER Price: $8.49 |
| 16 |
90109-081G1-00 |
BOLT Price: $3.60 |
| 17 |
90185-08008-00 |
NUT, SELF-LOCKING Price: $8.49 |
| 18 |
90201-08043-00 |
WASHER, PLATE Price: $8.49 |
| 19 |
90480-10068-00 |
GROMMET This part replaces 90480-08608-00. Price: $9.49 |
| 23 |
1DX-2530S-01-00 |
COLLAR ASSY Price: $28.99 |
| 24 |
1C3-25388-H0-00 |
PULLER, CHAIN 1 Price: $24.99 |
| 25 |
1C3-25389-H0-00 |
PULLER, CHAIN 2 Price: $33.99 |
| 26 |
90101-08006-00 |
BOLT Price: $9.49 |
| 27 |
90179-08019-00 |
NUT Price: $8.49 |
| 28 |
1C3-25381-90-00 |
AXLE, WHEEL Price: $100.99 |
| 29 |
90185-20002-00 |
NUT, SELF-LOCKING Price: $31.99 |
| 30 |
90201-20020-00 |
WASHER, PLATE Price: $10.49 |
| 31 |
9Y582-50113-00 |
CHAIN Price: $236.99 |
