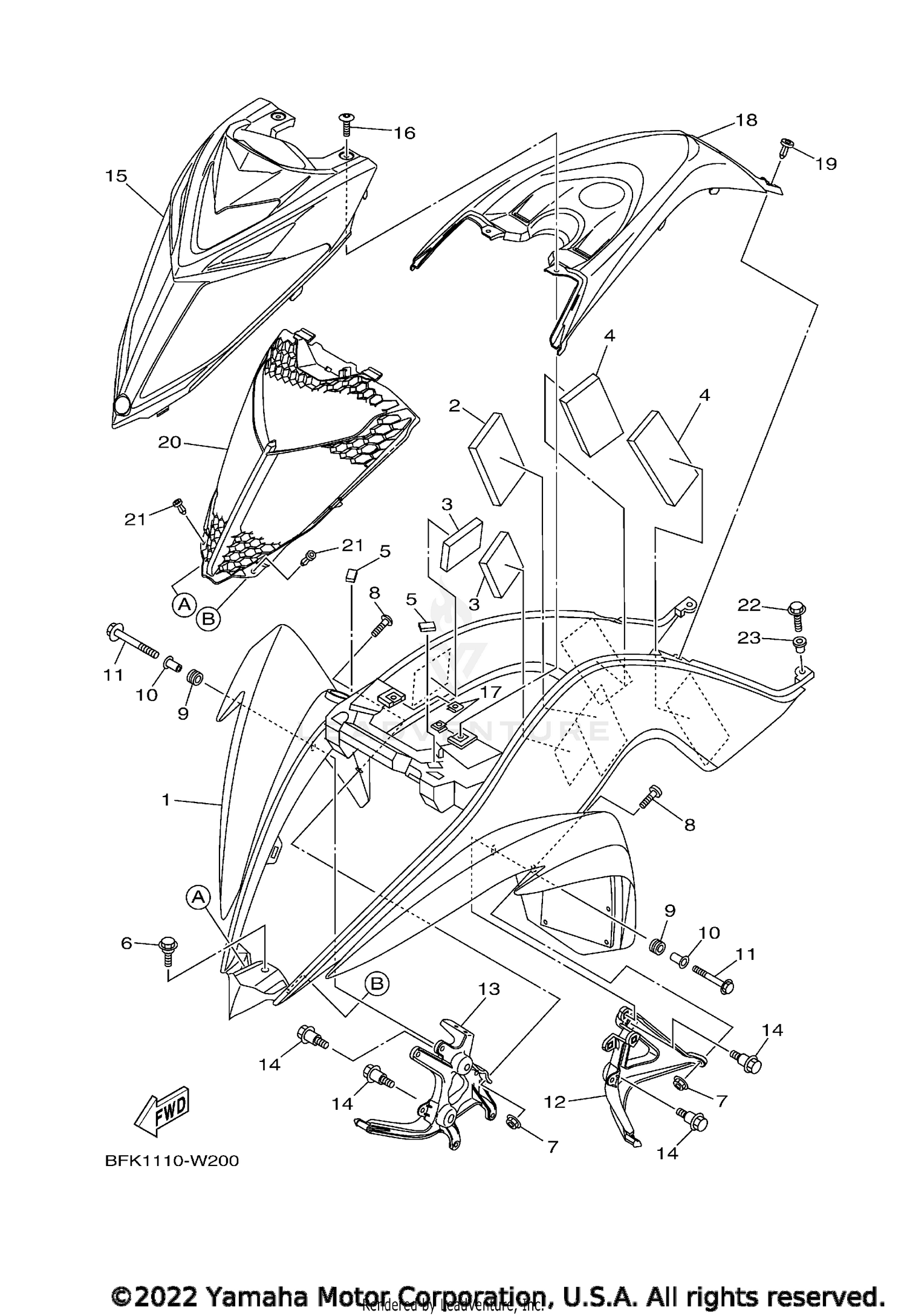

| Ref | Part Number | Description |
|---|
| 1 |
2LS-F1500-01-00 |
FRONT FENDER ASSY This part replaces 2LS-F1500-00-00. Price: $285.99 |
| 2 |
29N-14425-00-00 |
DAMPER 1 Price: $8.49 |
| 3 |
1S3-21541-00-00 |
DAMPER 1 Price: $8.49 |
| 4 |
3Y0-24183-00-00 |
DAMPER, LOCATING 3 Price: $25.99 |
| 5 |
3B4-21541-00-00 |
DAMPER 1 Price: $4.55 |
| 6 |
90109-06172-00 |
BOLT Price: $3.50 |
| 7 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95602-06200-00. Price: $2.95 |
| 8 |
90111-06137-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 9 |
90480-14023-00 |
GROMMET This part replaces 90480-14102-00. Price: $8.49 |
| 10 |
90387-06136-00 |
COLLAR Price: $8.49 |
| 11 |
95D32-06025-00 |
BOLT, FLANGE DEEP RECESS Price: $1.15 |
| 12 |
1PE-F1513-01-00 |
STAY, FENDER 1 Price: $15.49 |
| 13 |
1PE-F1514-01-00 |
STAY, FENDER 2 Price: $17.99 |
| 14 |
90109-06214-00 |
BOLT Price: $8.49 |
| 15 |
1PE-F3391-A0-00 |
PANEL, FRONT Price: $60.99 |
| 16 |
90111-06814-00 |
BOLT, HEX. SOCKET BUTTON Price: $2.00 |
| 17 |
90183-06069-00 |
NUT, SPRING This part replaces 90183-06053-00. Price: $7.49 |
| 18 |
1PE-F171A-A0-00 |
COVER, TOP Price: $105.99 |
| 19 |
90269-06002-00 |
RIVET Price: $9.49 |
| 20 |
1PE-E2467-00-00 |
COVER, RADIATOR Price: $19.99 |
| 21 |
90269-06002-00 |
RIVET Price: $9.49 |
| 22 |
90105-06084-00 |
BOLT, FLANGE Price: $4.95 |
