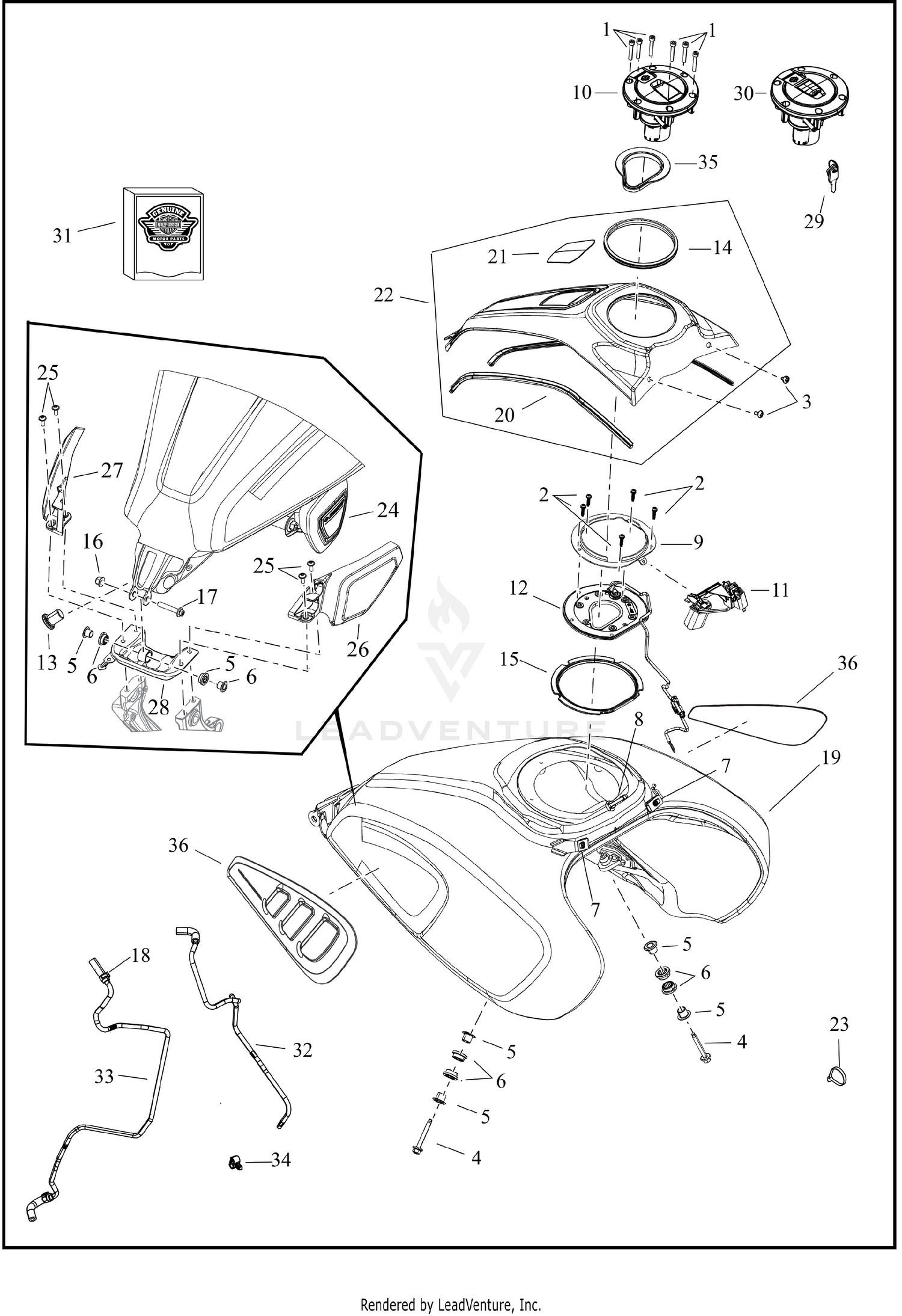

| Ref | Part Number | Description |
|---|
| 1 |
10201318 |
SCREW,SHCS, 10-24X1.25 Price: $0.54 |
| 2 |
10201216 |
SCREW,W/ LOCK PATCH Price: $1.14 |
| 3 |
10500135 |
SCREW,CUST,6 LOBE,SHOULDER,M5X10 Price: $0.54 |
| 4 |
10500163 |
SCREW,CUST,HEXFLG,6 LOBE,M6X1.0,MATPOINT Price: $1.37 |
| 5 |
11000249 |
BUSHING,PLAIN,FUEL TANK MOUNTING, FRONT Price: $4.63 |
| 6 |
12100200 |
GROMMET,DAMPER, FUEL TANK MOUNT, FRONT Price: $25.97 |
| 8 |
12500015 |
STRAP,TIE,XMAS,2 PIECE Price: $1.75 |
| 11 |
61200064 |
SENSOR,FUEL LVL,TUNNEL MT Price: $124.12 |
| 13 |
10500167 |
SCREW,CUST,ECOAT DRAIN PLUG Price: $2.47 |
| 14 |
70900948 |
CONSOLE,TANK,GASKET, CAP, FUEL Price: $4.05 |
| 16 |
10100134 |
NUT,FLANGE, M8X1.25, LOCKING Price: $7.66 |
| 17 |
10500162 |
SCREW,CUST,HEX FLANGE,6 LOBE,M8X1.25 Price: $1.89 |
| 20 |
70900947 |
CONSOLE,TANK,GASKET, TRIM Price: $104.09 |
| 25 |
10200924 |
SCREW,BHCS, FLANGE, M6X1.0-16 Price: $0.54 |
| 26 |
57300223 |
BODYWORK MISC CMPNT,SIDE COVER, RH Price: $23.31 |
| 27 |
57300224 |
BODYWORK MISC CMPNT,SIDE COVER, LH Price: $23.31 |
| 28 |
47200619 |
STRUCT TAILSECT SUB-CMPNT,FR,UPR,X-MBR Price: $14.52 |
