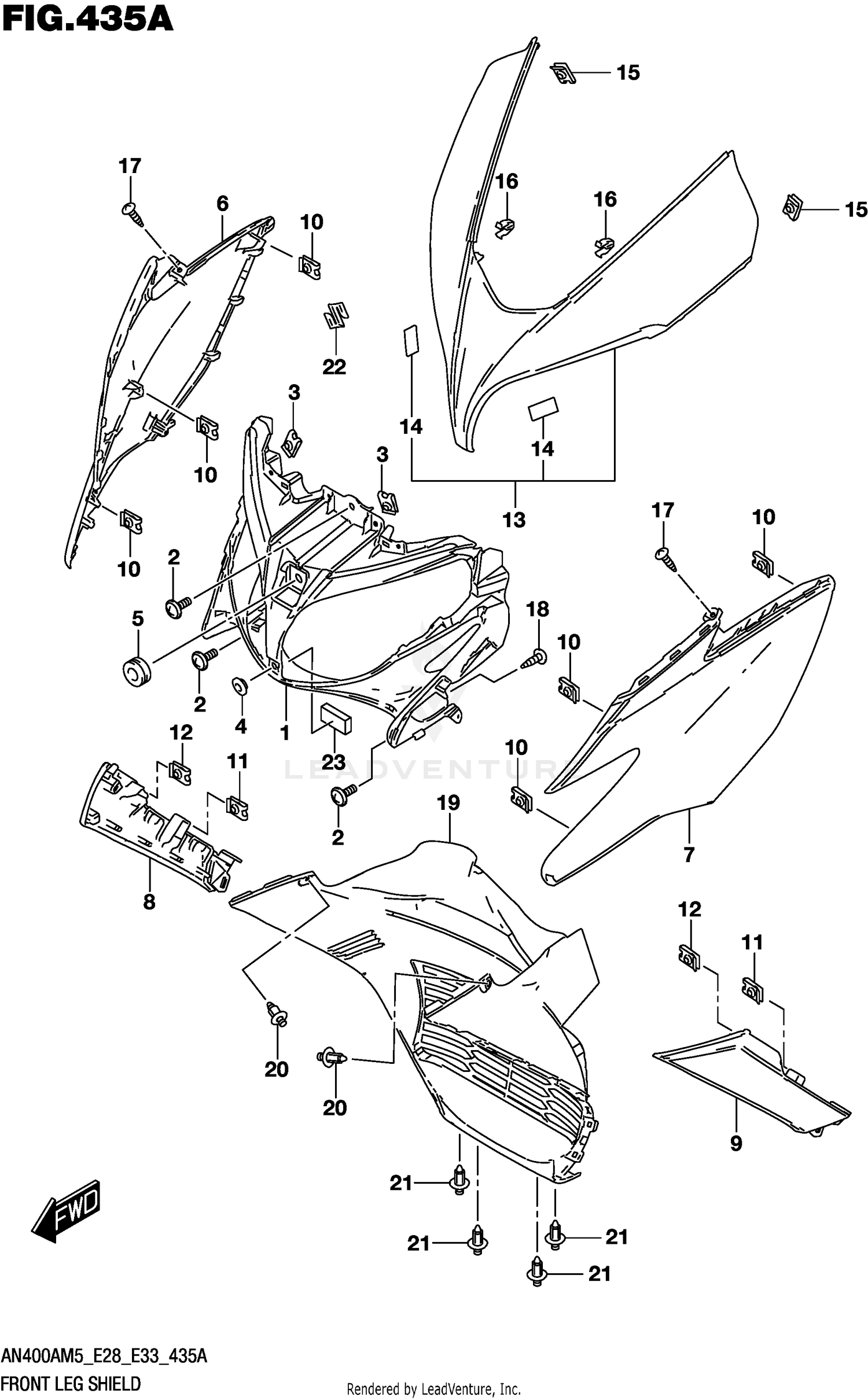

FRONT LEG SHIELD
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 09113-06013 | BOLT (6X16) Price: $2.35 |
| 3 | 09148-05038 | NUT (M5) Price: $2.37 |
| 4 | 09320-06027 | CUSHION (6.5X14X6) Price: $2.56 |
| 5 | 09320-08028 | CUSHION (8X26X7) Price: $3.70 |
| 10 | 09148-05038 | NUT (M5) Price: $2.37 |
| 11 | 09148-05038 | NUT (M5) Price: $2.37 |
| 12 | 09148-05052 | NUT (M5) Price: $4.10 |
| 14 | 44294-14H00 | CUSHION Price: $3.61 |
| 15 | 09148-05052 | NUT (M5) Price: $4.10 |
| 16 | 09409-08326 | CLIP (10.5X14.3) Price: $2.87 |
| 17 | 03541-0516A | SCREW Price: $1.65 |
| 18 | 03541-0516A | SCREW Price: $1.65 |
| 19 | 48137-19K00 | SHIELD,LEG LOWER Price: $139.08 |
| 20 | 09409-06329 | CLIP Price: $3.41 |
| 21 | 09409-08308 | CLIP (7.6X25.7) Price: $2.79 |
| 22 | 68641-26J00 | EMBLEM,S Price: $29.35 |
