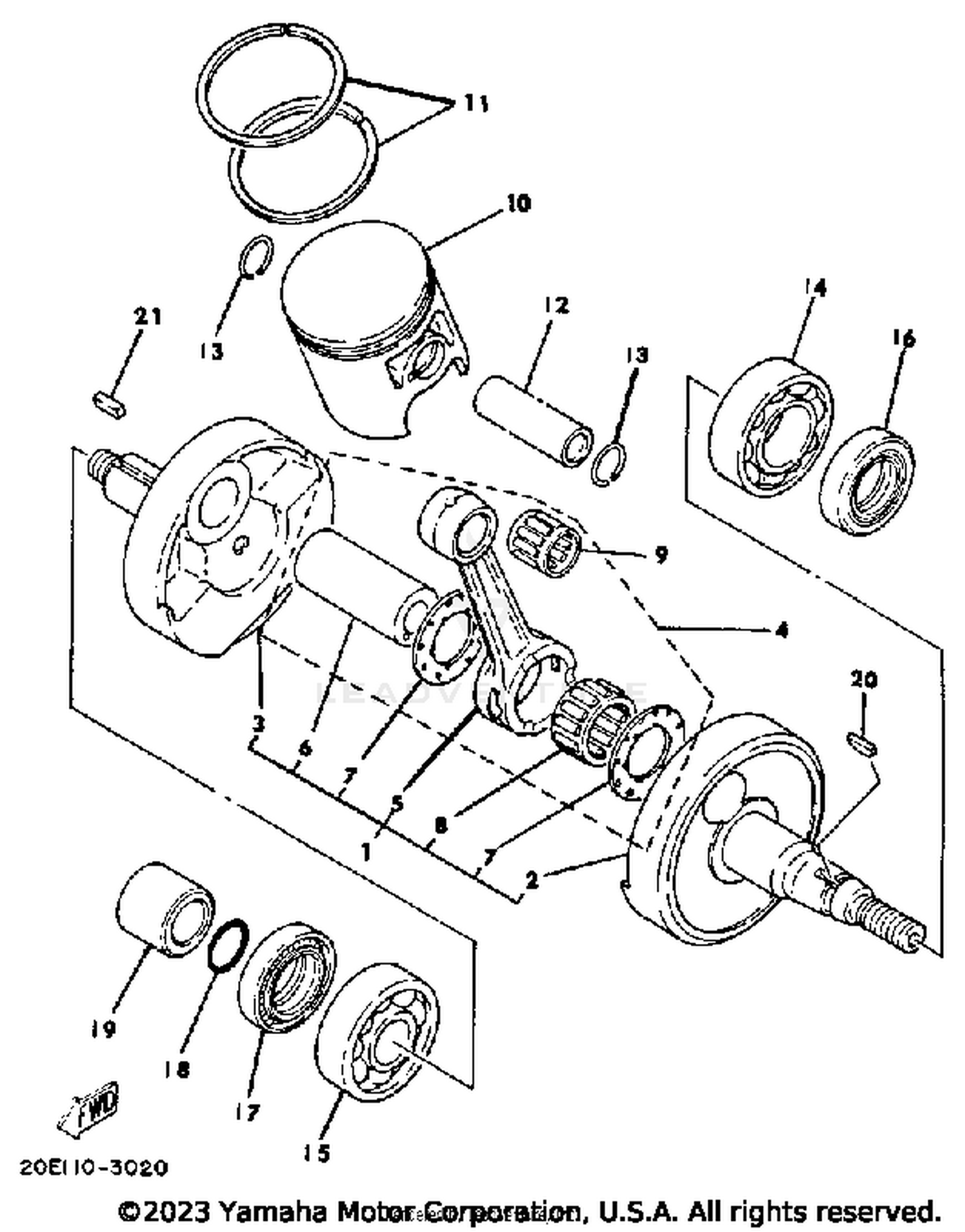

CRANKSHAFT - PISTON
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5V7-11400-00-00 | CRANKSHAFT ASY Price: $293.99 |
| 2 | 5V7-11412-00-00 | CRANK 1 Price: $54.44 |
| 3 | 5V7-11422-00-00 | CRANK 2 Price: $58.50 |
| 4 | 3R2-11650-10-00 | CONNECTING ROD ASSEMBLY Price: $44.68 |
| 5 | 3R2-11651-01-00 | ROD, CONNECTING Price: $127.99 |
| 6 | 3M5-11681-00-00 | PIN, CRANK 1 Price: $26.99 |
| 7 | 90209-22248-00 | WASHER, SPECIAL SHAPE Price: $20.99 |
| 8 | 93310-422H0-00 | BEARING, CYLINDER.#10 Price: $66.99 |
| 9 | 93310-216E1-00 | BEARING Price: $29.99 |
| 10 | 20E-11631-00-97 | PISTON STD Price: $154.99 |
| 10 | 20E-11635-00-00 | PISTON 1 O/S 0.25 Price: $70.99 |
| 10 | 20E-11636-00-00 | PISTON 2 O/S 0.50 Price: $99.99 |
| 11 | 20E-11601-00-00 | PISTON RINGSET STD Price: $50.99 |
| 11 | 20E-11601-10-00 | PISTON RINGSET 1ST Price: $50.99 |
| 11 | 20E-11601-20-00 | PISTON RINGSET 2ND Price: $42.12 |
| 12 | 251-11633-00-00 | PIN, PISTON Price: $32.99 |
| 13 | 93450-17044-00 | CIRCLIP Price: $9.49 |
| 14 | 93306-20529-00 | BEARING (B6205C4) Price: $44.99 |
| 15 | 93306-30421-00 | BEARING (B6304C3) Price: $71.99 |
| 16 | 93103-25125-00 | OIL SEAL, SW-TYPE Price: $29.99 |
| 17 | 93103-28011-00 | OIL SEAL, SW-TYPE (93103-28100) Price: $16.49 |
| 18 | 93210-180A6-00 | O-RING Price: $8.49 |
| 19 | 90387-20488-00 | COLLAR Price: $27.99 |
| 20 | 90280-03017-00 | KEY, WOODRUFF This part replaces 90280-03004-00. Price: $8.49 |
