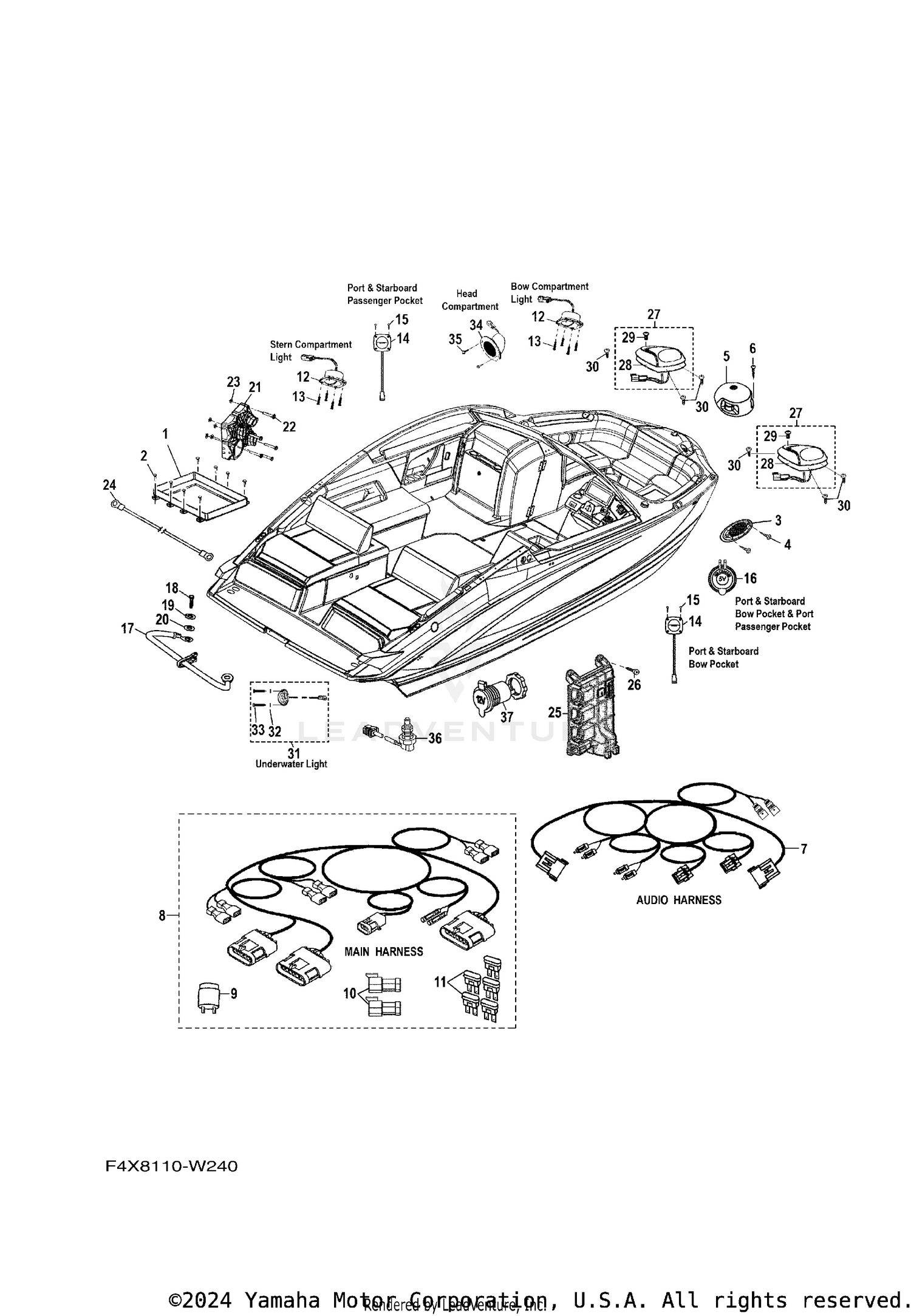

| Ref | Part Number | Description |
|---|
| 1 |
F2D-U8210-01-00 |
BATTERY CASE ASSY Price: $20.99 |
| 2 |
90167-08S12-00 |
SCREW, TAPPING Price: $5.99 |
| 3 |
F3H-U8304-10-00 |
SINGLE HORN ASSY. Price: $69.99 |
| 4 |
90167-08S16-00 |
SCREW, TAPPING Price: $0.25 |
| 5 |
F3H-U8130-01-00 |
BOW LIGHT ASSY. Price: $102.99 |
| 6 |
90167-08S10-00 |
SCREW, TAPPING Price: $5.99 |
| 7 |
F4X-U827K-20-00 |
WIRE HARNESS 8 Price: $2,063.99 |
| 9 |
F3S-U8341-10-00 |
BUZZER Price: $44.99 |
| 10 |
F5K-U8248-00-00 |
RESISTOR Price: $77.99 |
| 11 |
F5V-U8248-10-00 |
RESISTOR Price: $30.99 |
| 12 |
F4X-U8124-00-00 |
LIGHT, ROOM 1 Price: $41.99 |
| 13 |
90169-06SA6-00 |
TAPPING SCREW Price: $5.99 |
| 14 |
F4X-U8124-10-00 |
LIGHT, ROOM 1 Price: $39.99 |
| 15 |
90161-06S12-00 |
SCREW, COUTERSUNK Price: $5.99 |
| 16 |
F5V-U8284-00-00 |
RECEPTACLE, ACCESSOR Price: $66.99 |
| 17 |
F4X-U827J-01-00 |
WIRE HARNESS 7 Price: $102.99 |
| 18 |
90101-08SA3-00 |
BOLT Price: $5.99 |
| 19 |
90204-08800-00 |
WASHER, SPRING Price: $5.99 |
| 20 |
9299R-08600-00 |
WASHER Price: $6.99 |
| 21 |
F3F-U8314-00-00 |
SWITCH,BATTERY Price: $380.99 |
| 22 |
90167-08S24-00 |
SCREW, TAPPING Price: $5.99 |
| 23 |
90204-10S00-00 |
WASHER, SPRING Price: $6.99 |
| 24 |
F2A-U827J-10-00 |
WIRE HARNESS 7 Price: $86.99 |
| 25 |
F4Y-U8353-02-00 |
SWITCH, CONTROL This part replaces F4Y-U8353-01-00. Price: $688.99 |
| 26 |
90169-10SA4-00 |
SCREW, TAPPING Price: $5.99 |
| 27 |
F3F-U8130-00-00 |
BOW LIGHT ASSY. Price: $248.99 |
| 28 |
F3F-U8132-00-00 |
GASKET, LIGHT Price: $56.99 |
| 29 |
90149-06S06-00 |
SCREW Price: $4.99 |
| 30 |
90167-08S12-00 |
SCREW, TAPPING Price: $5.99 |
| 31 |
F4X-U812C-00-00 |
LIGHT, UNDER WATER Price: $572.99 |
| 33 |
90167-10S20-00 |
SCREW, TAPPING Price: $5.99 |
| 34 |
F2A-U8124-00-00 |
LIGHT, ROOM 1 Price: $50.99 |
| 35 |
90167-08S20-00 |
SCREW, TAPPING Price: $5.99 |
| 36 |
F1C-6834B-00-00 |
SWITCH, ENGINE STOP Price: $164.99 |
