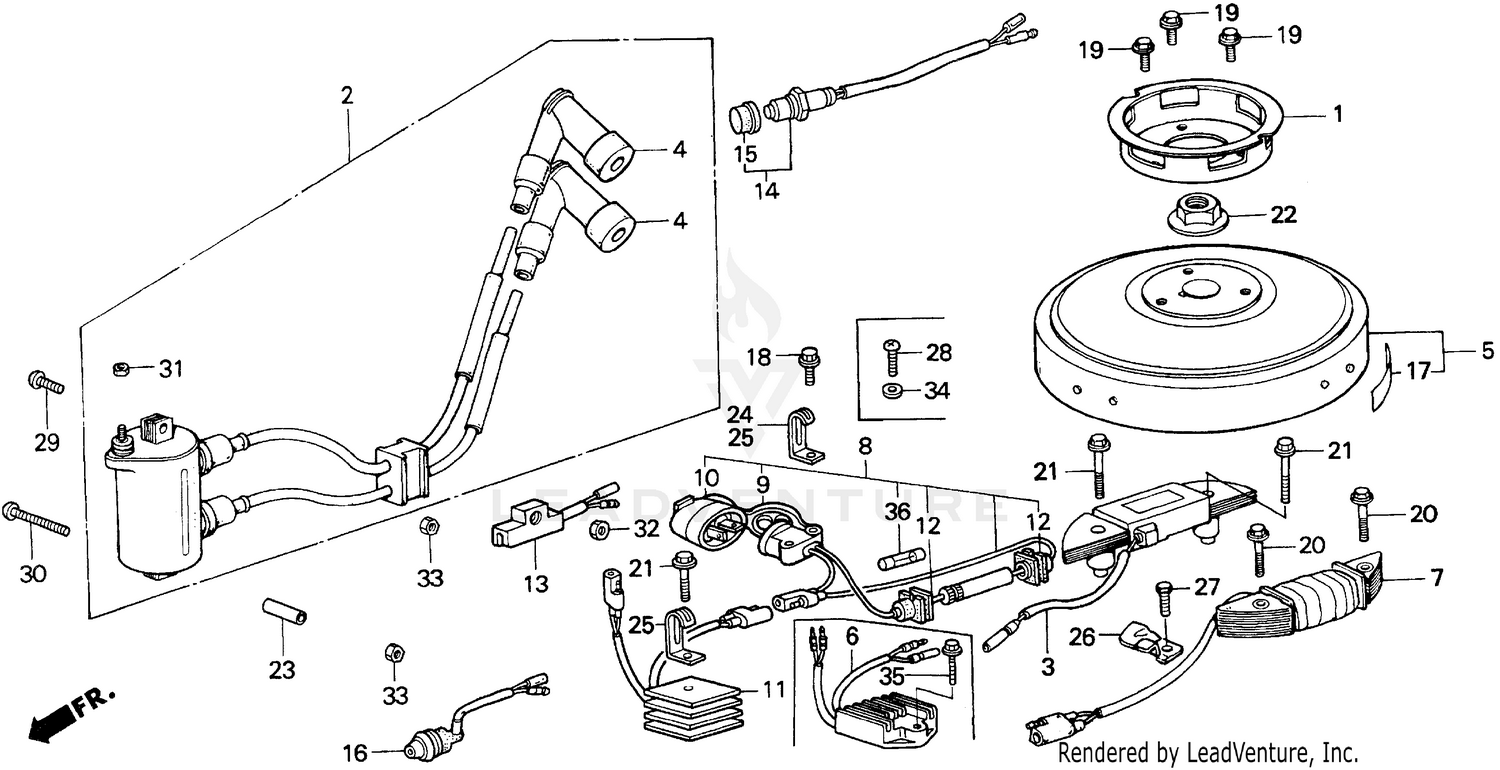

| Ref | Part Number | Description |
|---|
| 1 |
28570-881-003 |
PULLEY, STARTER Price: Call Us |
| 2 |
30500-ZV8-G01 |
SEE PART DETAILS - PRI; COIL ASSY., C.D.I. IGNITION Price: $120.64 |
| 3 |
30540-881-732 |
COIL ASSY., EXCITER Price: $91.64 |
| 4 |
30700-881-010 |
SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR Price: $14.40 |
| 5 |
31100-881-000ZA |
FLYWHEEL *R8* (BRIGHT RED) (NA USE ALT:31100-881-010ZC) Price: Call Us |
| 7 |
31630-881-004 |
COIL ASSY., CHARGE (NOT AVAILABLE) Price: $41.44 |
| 8 |
31650-881-014 |
RECEPTACLE ASSY., CHARGE (NOT AVAILABLE) Price: Call Us |
| 9 |
31651-881-014 |
RECEPTACLE (NOT AVAILABLE) Price: $9.24 |
| 10 |
31652-881-024 |
SEE PART DETAILS - PRI; PLUG, RECEPTACLE This part replaces 31652-881-014. Price: $23.08 |
| 11 |
31700-881-000 |
RECTIFIER ASSY. (Honda Code 0498683). Price: $70.72 |
| 13 |
35100-881-003 |
SWITCH ASSY., NEUTRAL Price: $97.12 |
| 14 |
36100-881-842 |
SWITCH ASSY., ENGINE STOP (NOT AVAILABLE) Price: $26.04 |
| 15 |
36101-881-013 |
SEE PART DETAILS - PRI; CAP, BUTTON (N/A: SEE ASSEMBLY) Price: Call Us |
| 16 |
37210-ZV4-003 |
SEE PART DETAILS - PRI; LAMP ASSY., INDICATOR Price: $51.50 |
| 17 |
87541-896-000 |
MARK, FLYWHEEL CAUTION (Honda Code 0929711). Price: $2.92 |
| 19 |
90016-920-000 |
BOLT, FLANGE (6X12) Price: $2.46 |
| 20 |
90123-881-000 |
BOLT, FLANGE (6X28) Price: $1.74 |
| 21 |
90124-881-000 |
BOLT, FLANGE (6X35) Price: $2.62 |
| 22 |
90201-881-000 |
NUT, SPECIAL (14MM) Price: $7.08 |
| 23 |
90742-881-000 |
SEE PART DETAILS - SUP; COLLAR, DISTANCE Price: Call Us |
| 25 |
91403-881-000 |
CLIP B, CORD Price: $7.06 |
| 26 |
91404-881-000 |
SEE PART DETAILS - PRI; CLIP, WIRE Price: $11.32 |
| 27 |
93500-06012-0B |
SCREW, PAN (6X12) Price: $1.24 |
| 28 |
93500-05022-0B |
SEE PART DETAILS - PRI; SCREW, PAN (5X22) Price: $1.64 |
| 29 |
93500-06028-0B |
SCREW, PAN (6X28) Price: $1.00 |
| 30 |
93500-06050-0B |
SCREW, PAN (6X50) Price: $1.16 |
| 31 |
94001-05330-0S |
NUT, HEX. (5MM) (NOT AVAILABLE) Price: $1.16 |
| 32 |
94001-05490-0S |
NUT, HEX. (5MM) Price: $1.26 |
| 33 |
94001-06020-0S |
SEE PART DETAILS - PRI; NUT, HEX. (6MM) Price: $1.72 |
| 34 |
94101-05200 |
WASHER, PLAIN (5MM) Price: $1.54 |
