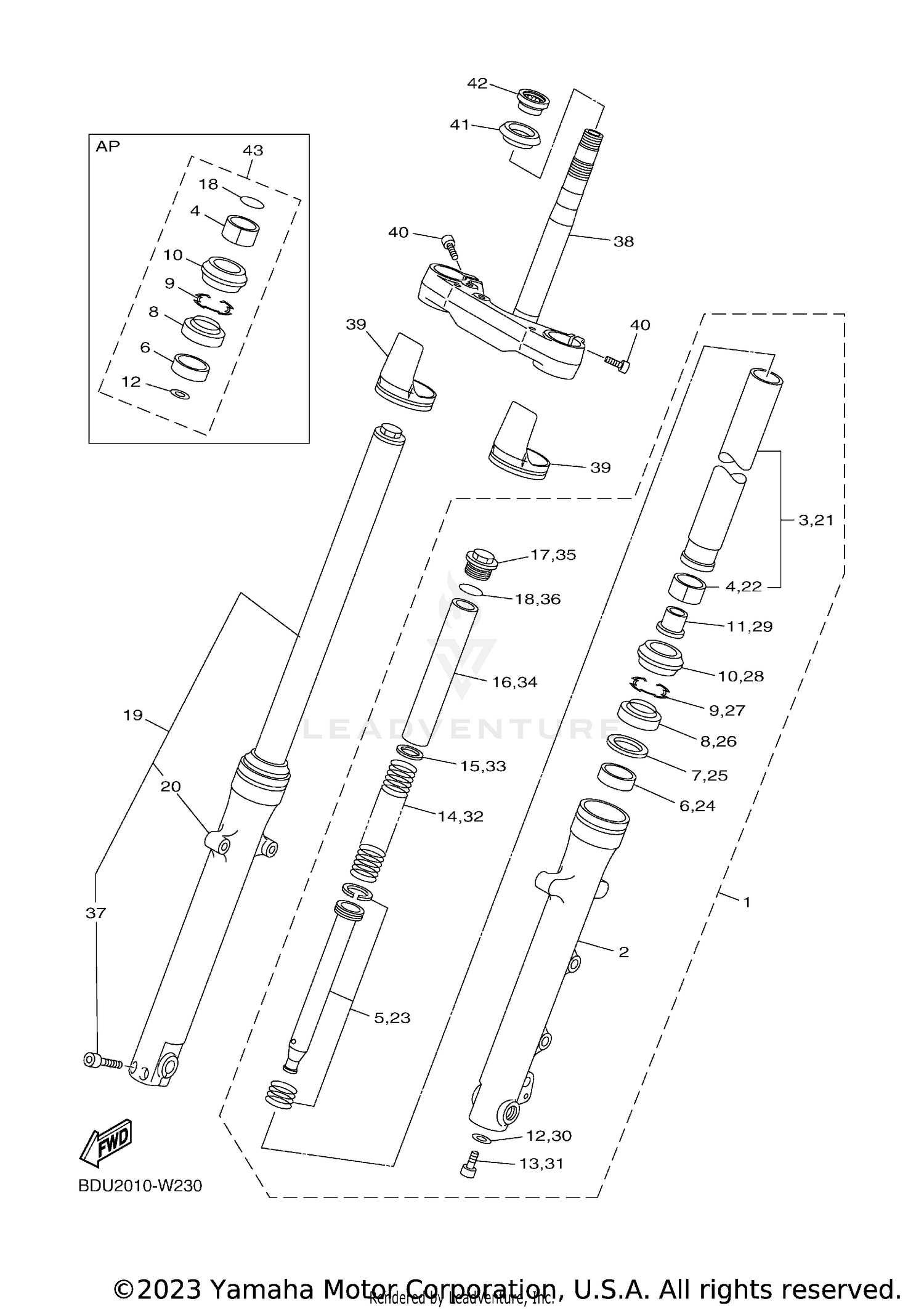

| Ref | Part Number | Description |
|---|
| 1 |
1TP-23102-03-00 |
FRONT FORK ASSY (L.H) Price: $785.99 |
| 2 |
1TP-23126-01-00 |
TUBE, OUTER (L.H) Price: $374.99 |
| 3 |
1TP-23110-01-00 |
INNER TUBE COMP. 1 Price: $441.99 |
| 4 |
4FM-23171-40-00 |
METAL, SLIDE Price: $25.99 |
| 5 |
1TP-23170-01-00 |
CYLINDER COMP., FRONT FORK Price: $63.99 |
| 6 |
4FM-23125-40-00 |
METAL, SLIDE 1 Price: $36.99 |
| 7 |
36Y-23146-10-00 |
WASHER, OIL SEAL Price: $30.99 |
| 8 |
4EB-23145-01-00 |
OIL SEAL Price: $31.99 |
| 9 |
26H-23156-00-00 |
CLIP, OIL SEAL Price: $8.49 |
| 10 |
4EB-23144-00-00 |
SEAL, DUST Price: $24.99 |
| 11 |
1TP-23173-00-00 |
SPINDLE, TAPER Price: $31.99 |
| 13 |
3D8-23181-00-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 278-23181-50-00. Price: $9.49 |
| 14 |
1TP-23141-02-00 |
SPRING, FRONT FORK Price: $35.99 |
| 15 |
4DW-23149-40-00 |
WASHER, SPRING UPPER Price: $7.49 |
| 16 |
1TP-23118-00-00 |
SPACER Price: $31.99 |
| 17 |
1D0-23111-00-00 |
BOLT, CAP Price: $51.99 |
| 19 |
1TP-23103-03-00 |
FRONT FORK ASSY (R.H) Price: $580.99 |
| 20 |
1TP-23136-01-00 |
TUBE, OUTER 2 Price: $492.99 |
| 21 |
1TP-23110-01-00 |
INNER TUBE COMP. 1 Price: $441.99 |
| 22 |
4FM-23171-40-00 |
METAL, SLIDE Price: $25.99 |
| 23 |
1TP-23170-01-00 |
CYLINDER COMP., FRONT FORK Price: $63.99 |
| 24 |
4FM-23125-40-00 |
METAL, SLIDE 1 Price: $36.99 |
| 25 |
36Y-23146-10-00 |
WASHER, OIL SEAL Price: $30.99 |
| 26 |
4EB-23145-01-00 |
OIL SEAL Price: $31.99 |
| 27 |
26H-23156-00-00 |
CLIP, OIL SEAL Price: $8.49 |
| 28 |
4EB-23144-00-00 |
SEAL, DUST Price: $24.99 |
| 29 |
1TP-23173-00-00 |
SPINDLE, TAPER Price: $31.99 |
| 31 |
3D8-23181-00-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 278-23181-50-00. Price: $9.49 |
| 32 |
1TP-23141-02-00 |
SPRING, FRONT FORK Price: $35.99 |
| 33 |
4DW-23149-40-00 |
WASHER, SPRING UPPER Price: $7.49 |
| 34 |
1TP-23118-00-00 |
SPACER Price: $31.99 |
| 35 |
1D0-23111-00-00 |
BOLT, CAP Price: $51.99 |
| 37 |
91314-08035-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.70 |
| 38 |
1TP-23340-01-00 |
UNDER BRACKET COMP. Price: $431.99 |
| 39 |
4PU-2331G-00-00 |
COVER Price: $14.49 |
| 40 |
91314-10020-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 41 |
3FV-23462-00-00 |
SEAL, STEERING Price: $26.99 |
| 42 |
93399-99932-00 |
BEARING Price: $69.99 |
