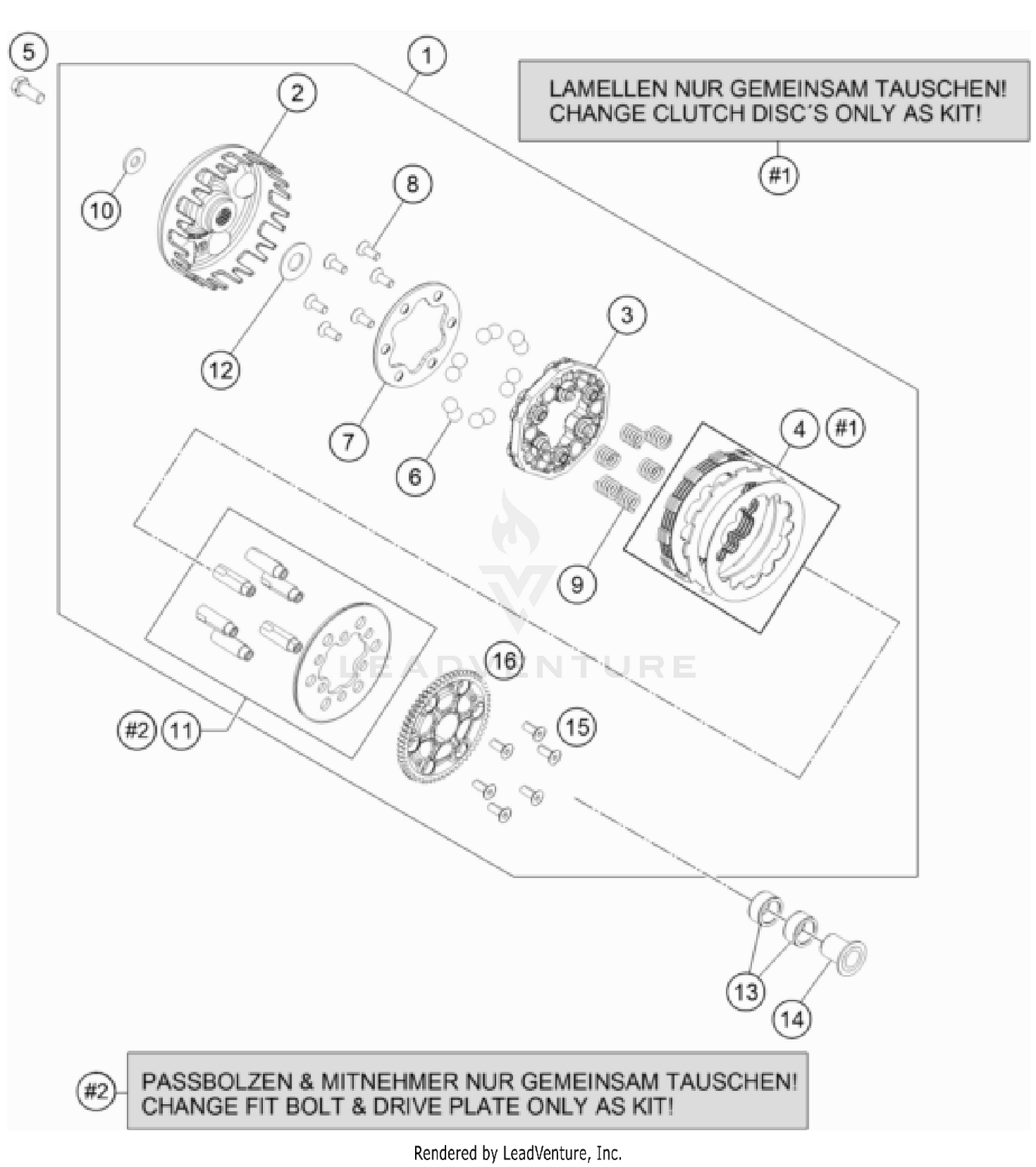

| Ref | Part Number | Description |
|---|
| 1 |
45232100144 |
AXIAL CLUTCH ASSEMBLY Price: $961.50 |
| 2 |
45232101000 |
CLUTCH BASKET Price: $69.29 |
| 3 |
A40032039944 |
Spherical Basket kit This part replaces 45232139044. Price: $261.59 |
| 4 |
45232110033 |
CLUTCH DISC KIT Price: $189.63 |
| 5 |
0035080206S |
SHCS M8x20 TX45 Price: $6.26 |
| 6 |
0401110000 |
BALL D=11MM Price: $2.99 |
| 7 |
45232103000 |
PRESSURE PLATE Price: $44.21 |
| 8 |
010642060166S |
Hex screw ISO10642-M6x16 self-locking This part replaces 0991060166S. Price: $1.99 |
| 9 |
45232105000 |
CLUTCH SPRING 15,9MM Price: $4.99 |
| 10 |
0340084234 |
WASHER DIN 6340 8,4X23X4 Price: $1.99 |
| 11 |
45232107244 |
FIT BOLT WITH DRIVE PLATE Price: $103.94 |
| 12 |
75034050000 |
STOP DISK 14X30X1,5 STEEL Price: $4.99 |
| 13 |
0402182412 |
NEEDLE BEARING 18X24X12A Price: $10.44 |
| 14 |
45232013100 |
Inner ring This part replaces 45232013000. Price: $24.63 |
| 15 |
0106420601602S |
Hex screw ISO10642-M6x16 self-locking This part replaces 09910601661S. Price: $0.99 |
