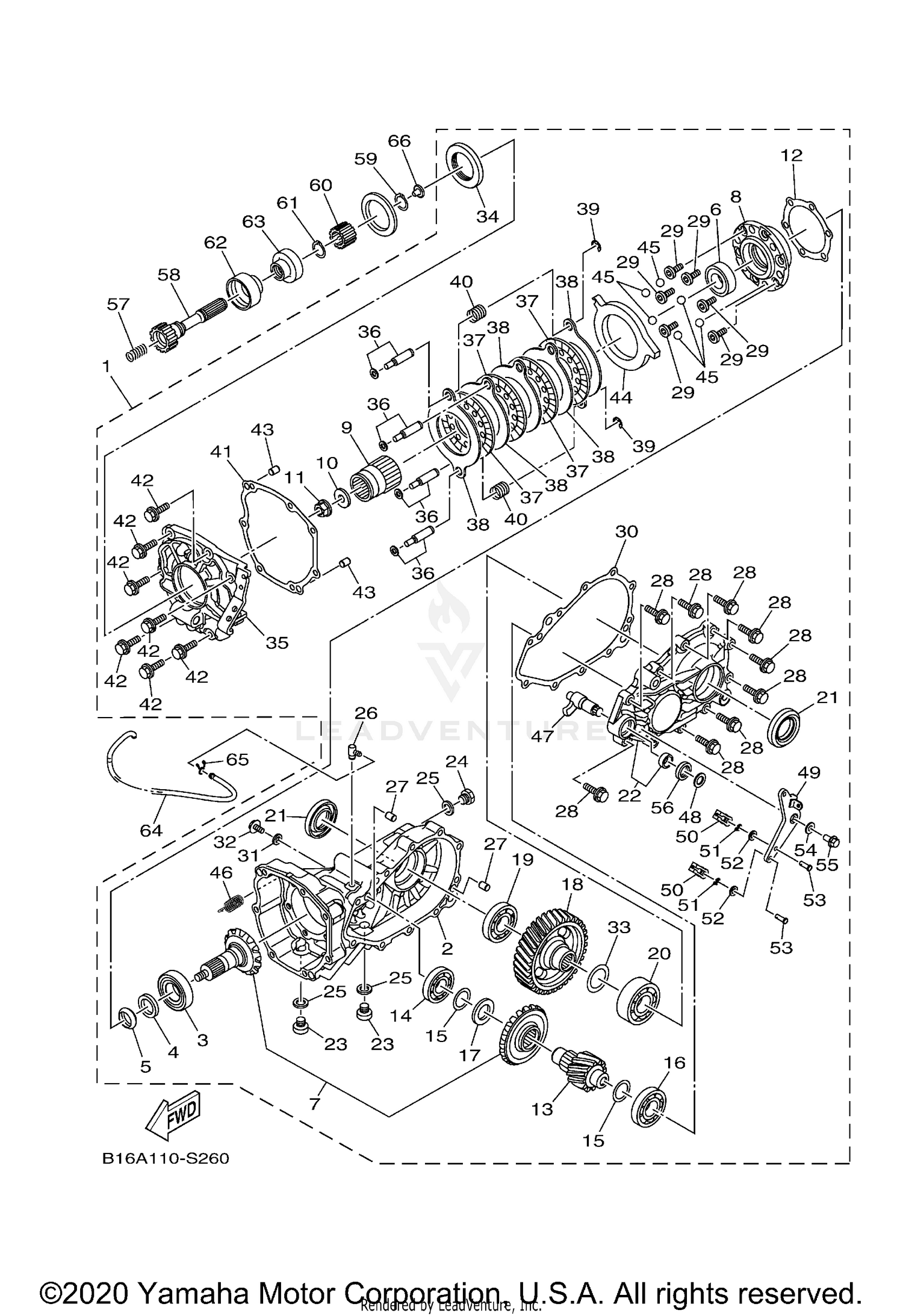

| Ref | Part Number | Description |
|---|
| 1 |
B16-46101-10-00 |
REAR AXLE GEAR CASE ASSY Price: $2,382.99 |
| 2 |
B16-46540-00-00 |
REAR AXLE HOUSING COMP. Price: $212.99 |
| 3 |
93332-00046-00 |
BEARING Price: $58.99 |
| 4 |
90201-25634-00 |
WASHER, PLATE Price: $12.49 |
| 5 |
3B4-46129-00-00 |
SPACER, EXPANSION Price: $8.49 |
| 6 |
93332-00053-00 |
BEARING Price: $69.99 |
| 7 |
3B4-461A0-00-00 |
RING GEAR SET Price: $473.99 |
| 8 |
B16-46144-00-00 |
HOUSING, PINION BEARING Price: $75.99 |
| 9 |
B16-46126-00-00 |
COUPLING Price: $122.99 |
| 10 |
90201-12029-00 |
WASHER, PLATE Price: $8.49 |
| 11 |
90179-12325-00 |
NUT This part replaces 90179-12005-00. Price: $6.49 |
| 13 |
3B4-46316-00-00 |
GEAR, PINION 1 Price: $142.99 |
| 14 |
93306-205U1-00 |
BEARING This part replaces 93306-205U0-00. Price: $24.99 |
| 16 |
93306-30560-00 |
BEARING This part replaces 93306-30534-00. Price: $85.99 |
| 18 |
3B4-46326-01-00 |
GEAR, WHEEL 1 Price: $214.99 |
| 19 |
93306-00702-00 |
BEARING This part replaces 93306-00704-00. Price: $66.99 |
| 20 |
93306-207U0-00 |
BEARING Price: $37.99 |
| 21 |
93102-35031-00 |
OIL SEAL Price: $24.99 |
| 22 |
B16-46550-00-00 |
REAR AXLE HOUSING COMP. 2 Price: $127.99 |
| 23 |
90340-14002-00 |
PLUG, STRAIGHT SCREW Price: $22.99 |
| 24 |
90340-14029-00 |
PLUG, STRAIGHT SCREW Price: $4.60 |
| 25 |
214-11198-01-00 |
GASKET Price: $3.17 |
| 26 |
5UG-15371-00-00 |
BREATHER Price: $44.99 |
| 27 |
93610-14002-00 |
PIN, DOWEL Price: $4.55 |
| 28 |
95822-08035-00 |
BOLT, FLANGE Price: $4.50 |
| 29 |
90109-08237-00 |
BOLT Price: $1.95 |
| 30 |
B16-4631A-00-00 |
GSKT., CASE Price: $16.49 |
| 31 |
90201-08087-00 |
WASHER, PLATE Price: $3.95 |
| 32 |
95022-08012-00 |
BOLT, FLANGE Price: $13.49 |
| 34 |
93105-45007-00 |
OIL SEAL Price: $32.99 |
| 35 |
B16-4613F-00-00 |
COVER 1 Price: $78.99 |
| 36 |
B16-46155-00-00 |
BOLT 1 Price: $8.49 |
| 37 |
B16-42525-00-00 |
PLATE, FRICTION Price: $50.99 |
| 38 |
B16-46336-00-00 |
PLATE 1 Price: $34.99 |
| 39 |
99080-09600-00 |
CIRCLIP (E) (99001-09600-00) This part replaces 99002-09600-00. Price: $3.20 |
| 40 |
90501-180A2-00 |
SPRING, COMPRESSION Price: $2.75 |
| 41 |
B16-4631E-00-00 |
GASKET, COVER Price: $13.49 |
| 42 |
95822-08035-00 |
BOLT, FLANGE Price: $4.50 |
| 43 |
93610-14002-00 |
PIN, DOWEL Price: $4.55 |
| 44 |
B16-4582E-00-00 |
CAM, PLATE Price: $60.99 |
| 45 |
93515-32029-00 |
BALL Price: $4.55 |
| 46 |
B16-46375-00-00 |
SPRING, RETURN Price: $2.80 |
| 47 |
B16-46265-00-00 |
SHAFT Price: $57.99 |
| 48 |
90201-13015-00 |
WASHER, PLATE Price: $3.85 |
| 49 |
B16-25355-00-00 |
LEVER, CAMSHAFT Price: $36.99 |
| 50 |
B16-26374-00-00 |
END, CABLE 3 Price: $6.49 |
| 51 |
91490-20015-00 |
PIN. COTTER This part replaces 91402-20012-00. Price: $2.20 |
| 52 |
92990-06600-00 |
WASHER, PLATE This part replaces 92902-06600-00. Price: $2.85 |
| 53 |
91701-06018-00 |
PIN This part replaces 91702-06018-00. Price: $5.49 |
| 54 |
92902-08200-00 |
WASHER Price: $0.30 |
| 55 |
95814-08016-00 |
BOLT, FLANGE This part replaces 95822-08016-00. Price: $10.49 |
| 56 |
93102-17008-00 |
OIL SEAL Price: $18.49 |
| 57 |
90501-20361-00 |
SPRING, COMPRESSION Price: $14.49 |
| 58 |
1HP-G6172-00-00 |
SHAFT, DRIVE Price: $63.99 |
| 59 |
99009-19400-00 |
CIRCLIP Price: $9.49 |
| 60 |
5KM-46126-00-00 |
COUPLING Price: $71.99 |
| 61 |
93410-22039-00 |
CIRCLIP Price: $9.49 |
| 62 |
5KM-46137-00-00 |
SEAL 2 Price: $17.99 |
| 63 |
5KM-46136-00-00 |
SEAL 1 Price: $9.49 |
| 64 |
90445-070G6-00 |
HOSE (L1700) This part replaces 90445-074F6-00. Price: $44.99 |
| 65 |
90467-07029-00 |
CLIP Price: $2.60 |
