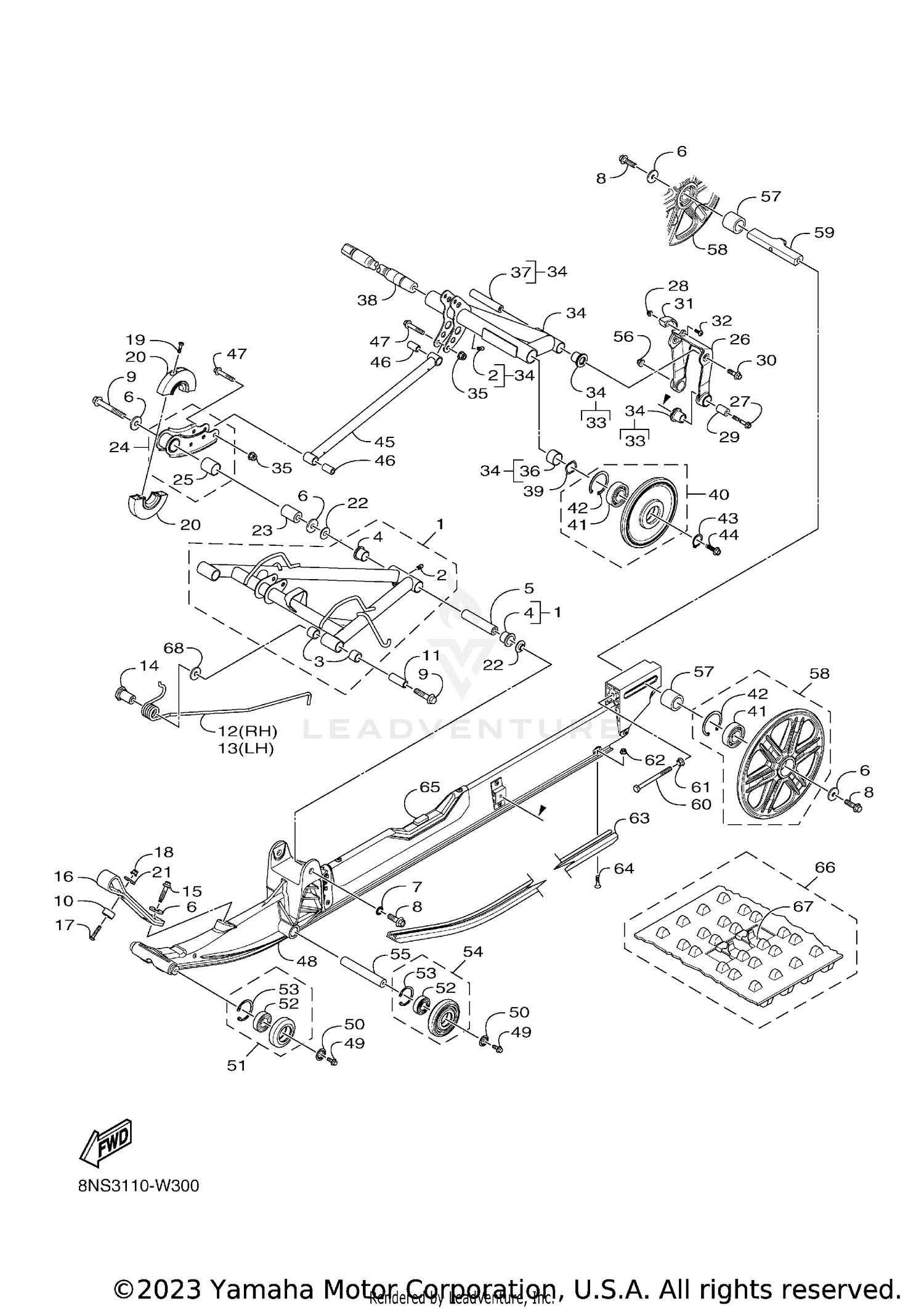

| Ref | Part Number | Description |
|---|
| 1 |
8NS-G7331-10-00 |
ARM, PIVOT 1 This part replaces 8NS-G7331-00-00. Price: $234.99 |
| 3 |
8JP-RA814-00-00 |
BUSH, 5 Price: $5.49 |
| 4 |
8JP-RA812-00-00 |
BUSH, 0.751 Price: $4.85 |
| 5 |
8NS-G7486-20-00 |
SHAFT 4 Price: $29.99 |
| 6 |
8JP-RA453-00-00 |
WASHER, M10X29 Price: $2.30 |
| 7 |
8JP-RA457-00-00 |
WASHER, TOOTH M10 Price: $0.65 |
| 8 |
8ND-RA121-00-00 |
BOLT, FLANGE Price: $3.50 |
| 9 |
8NS-RA102-00-00 |
BOLT, FLANGE Price: $5.99 |
| 10 |
8NS-G2659-00-00 |
BUMPER Price: $4.85 |
| 11 |
8JP-RA733-00-00 |
COLLAR, 16 Price: $26.99 |
| 12 |
8NS-G381D-10-00 |
SCRAPER Price: $43.99 |
| 13 |
8NS-G381D-00-00 |
SCRAPER Price: $43.99 |
| 14 |
8NS-G7371-00-00 |
BUSH, PIVOT Price: $26.99 |
| 15 |
8NS-RA104-00-00 |
BOLT, FLANGE Price: $2.45 |
| 16 |
8NS-G6432-00-00 |
STOPPER Price: $21.99 |
| 17 |
8JP-RA265-00-00 |
SCREW, M6X1.0X30 Price: $1.55 |
| 18 |
8JM-RA322-00-00 |
NUT, FLANGE M6-1.0 Price: $1.15 |
| 19 |
8JP-RA276-00-00 |
SCREW, TAPPING This part replaces 8JP-RA2A1-00-00. Price: $0.85 |
| 20 |
8JR-G7513-00-00 |
RIM, GUIDE WHEEL 1 Price: $10.49 |
| 21 |
8JP-RA450-00-00 |
WASHER, 6.87X25.4X2.32 Price: $0.95 |
| 22 |
8JP-RA725-00-00 |
COLLAR, 13 Price: $4.50 |
| 23 |
8NS-G7465-00-00 |
SHAFT 1 Price: $16.99 |
| 24 |
8NS-G7349-00-00 |
BRACKET, ARM PIVOT Price: $66.99 |
| 25 |
8NS-RA800-00-00 |
BUSH Price: $13.49 |
| 26 |
8NS-G7417-00-00 |
BRACKET 3 Price: $99.99 |
| 27 |
8NS-RA106-00-00 |
BOLT, FLANGE Price: $26.99 |
| 28 |
8JP-RA363-00-00 |
NUT, FLANGE LOCKING M5X0.8 Price: $1.35 |
| 29 |
8NS-G7475-00-00 |
SHAFT 2 Price: $12.49 |
| 30 |
8JP-RA186-00-00 |
BOLT, FLANGE M8X1.25X25 Price: $0.65 |
| 31 |
8NS-G7441-00-00 |
SLIDER 1 Price: $5.99 |
| 32 |
8LJ-RA239-00-00 |
SCREW, 5 Price: $0.80 |
| 34 |
8NS-G7332-00-00 |
ARM, PIVOT 2 Price: $235.99 |
| 35 |
8JP-RA360-10-00 |
NUT, FLANGE LOCKING Price: $1.25 |
| 38 |
8JR-G7475-30-00 |
SHAFT 2 Price: $64.99 |
| 39 |
8JP-RA463-00-00 |
WASHER, WAVE Price: $4.65 |
| 40 |
8JR-G7312-00-00 |
WHEEL, SUSPENSION 2 Price: $91.99 |
| 43 |
8JP-RAH11-00-00 |
CIRCLIP, 5 Price: $1.75 |
| 44 |
8JP-RA1A0-00-00 |
BOLT, FLANGE M10X1.25X40 Price: $1.70 |
| 45 |
8JR-G7494-10-00 |
ROD, RELAY Price: $64.99 |
| 46 |
8JP-RA724-10-00 |
COLLAR, 12 Price: $4.50 |
| 47 |
8JP-RA1A2-00-00 |
BOLT, FLANGE Price: $2.65 |
| 48 |
8NR-G741A-20-00 |
FRAME, SLIDING Price: $609.99 |
| 49 |
8JP-RA180-00-00 |
BOLT, FLANGE M6X1.0X16 Price: $1.90 |
| 50 |
8JP-RA466-00-00 |
WASHER, 9 Price: $2.00 |
| 51 |
8JR-G7310-10-00 |
SUSPENSION WHEEL ASSY Price: $72.99 |
| 54 |
8NS-G7311-00-00 |
WHEEL, SUSPENSION Price: $43.99 |
| 55 |
8NS-G7486-00-00 |
SHAFT 4 Price: $19.99 |
| 56 |
8KG-RA301-00-00 |
NUT, SELF-LOCKING M8-1.25 Price: $1.40 |
| 57 |
8NS-G7319-00-00 |
COLLAR Price: $8.49 |
| 58 |
8NS-G7310-00-00 |
SUSPENSION WHEEL A Price: $98.99 |
| 59 |
8NS-G7534-00-00 |
WHEEL, GUIDE 1 Price: $61.99 |
| 60 |
8JP-RA1B1-00-00 |
BOLT, HEX. M8X1.25X100 Price: $2.65 |
| 61 |
8NS-RA300-00-00 |
NUT, SELF-LOCKING Price: $1.20 |
| 62 |
8JP-RA357-00-00 |
NUT, FLANGE LOCKING 1/4-20 Price: $0.65 |
| 63 |
8NR-G7421-00-00 |
RUNNER, SLIDING 1 Price: $50.99 |
| 64 |
8JM-RA206-00-00 |
SCREW, 1/4-20X1.125 Price: $1.70 |
| 65 |
8NS-G7457-10-00 |
DAMPER 2 Price: $21.99 |
| 66 |
8NR-G7110-10-00 |
TRACK ASSY This part replaces 8NR-G7110-00-00. Price: $1,523.99 |
| 67 |
8NS-G7113-00-00 |
PLATE, REINFORCEME Price: $14.49 |
