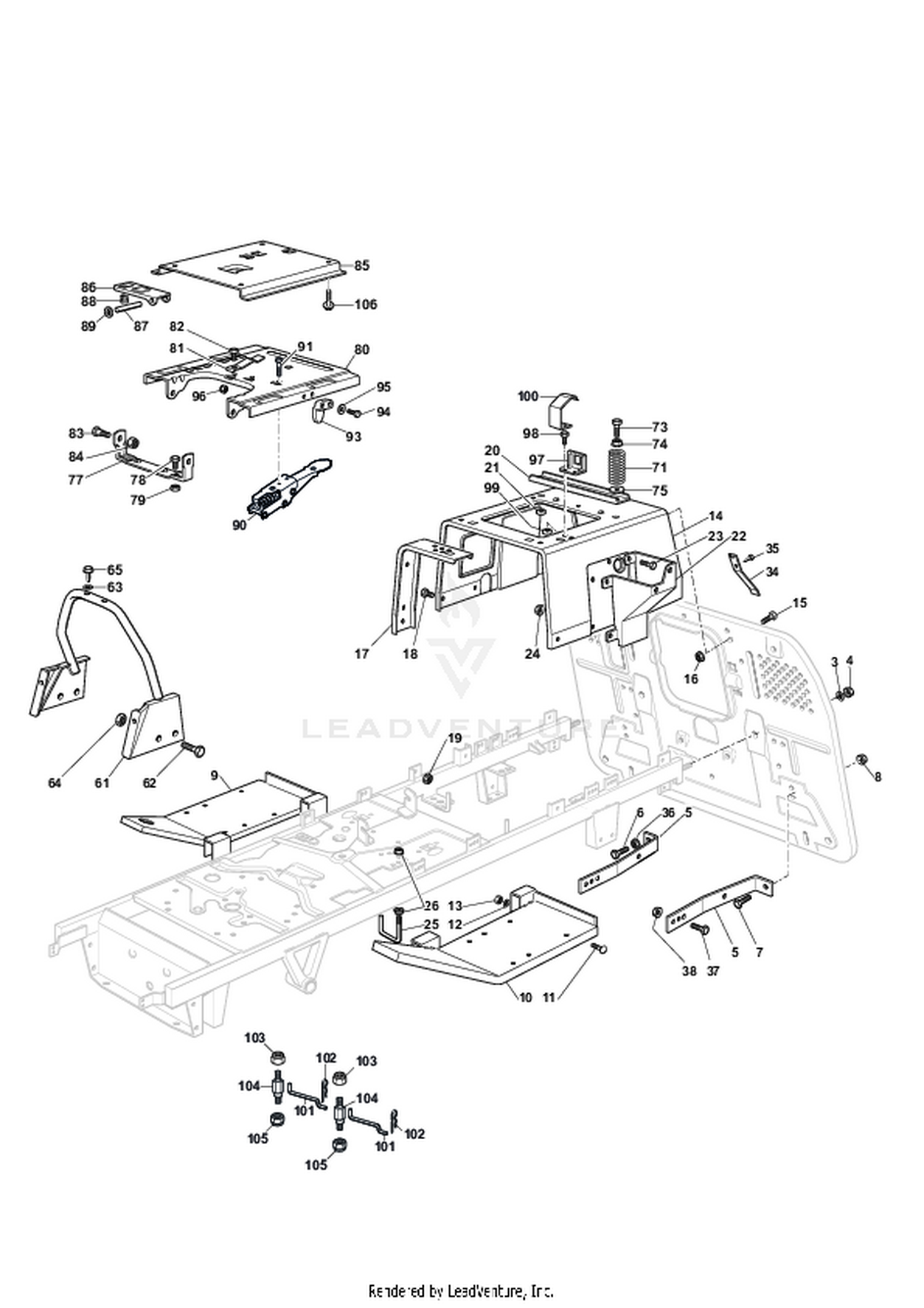

Frame
Parts (66)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 112523060/0 | Washer Price: Call Us |
| 4 | 9739-1031-22 | Nut Price: Call Us |
| 5 | 325774273/2 | Stiffening Price: Call Us |
| 6 | 112691100/0 | Screw Price: Call Us |
| 7 | 112793102/0 | Screw Price: Call Us |
| 8 | 112154220/0 | Nut Price: Call Us |
| 9 | 382510041/2 | Right Footboard Support Price: Call Us |
| 10 | 382510043/2 | Left Footboard  Support Price: Call Us |
| 11 | 112815245/0 | Screw Price: Call Us |
| 12 | 112523040/0 | Washer Price: Call Us |
| 13 | 112154510/0 | Nut Price: Call Us |
| 14 | 325785133/5 | Seat Support Price: Call Us |
| 15 | 112791011/0 | Screw Price: Call Us |
| 16 | 112292102/0 | Nut Price: Call Us |
| 17 | 325650065/1 | Pulley Stiffening Price: Call Us |
| 18 | 112791400/0 | Screw Price: Call Us |
| 19 | 112292102/0 | Nut Price: Call Us |
| 20 | 325650067/1 | Pulley Stiffening Price: Call Us |
| 21 | 112360420/0 | Nut Price: Call Us |
| 22 | 325785137/1 | Support Price: Call Us |
| 23 | 112791400/0 | Screw Price: Call Us |
| 24 | 112292102/0 | Nut Price: Call Us |
| 25 | 125580019/1 | Belt Guide (Hydro) Price: Call Us |
| 26 | 112292102/0 | Nut Price: Call Us |
| 34 | 125430238/1 | Spring Price: Call Us |
| 35 | 112731580/0 | Screw Price: Call Us |
| 36 | 112154220/0 | Nut Price: Call Us |
| 37 | 112800815/0 | Screw Price: Call Us |
| 38 | 112154220/0 | Nut Price: Call Us |
| 61 | 382650045/0 | Central Stiffening Support Frame Price: Call Us |
| 62 | 112791011/0 | Screw Price: Call Us |
| 63 | 112521330/0 | Washer Price: Call Us |
| 64 | 112292102/0 | Nut Price: Call Us |
| 65 | 112731350/0 | Screw Price: Call Us |
| 71 | 125430205/1 | Spring Price: Call Us |
| 73 | 125943001/1 | Screw Price: Call Us |
| 74 | 112154220/0 | Nut Price: Call Us |
| 75 | 112523070/0 | Washer Price: Call Us |
| 77 | 382774305/0 | Seat Clamp Support Price: Call Us |
| 78 | 112792611/0 | Screw Price: Call Us |
| 79 | 112293201/0 | Nut Price: Call Us |
| 80 | 382785301/0 | Fixed Seat Support Price: Call Us |
| 81 | 125430203/1 | Spring Price: Call Us |
| 82 | 112731580/0 | Screw Price: Call Us |
| 83 | 122524970/3 | Pin Price: Call Us |
| 84 | 112155010/0 | Nut Price: Call Us |
| 85 | 325785147/2 | Seat Support Price: Call Us |
| 86 | 325318109/1 | Stop Lever Price: Call Us |
| 87 | 125510000/0 | Pin Price: Call Us |
| 88 | 125430202/1 | Spring Price: Call Us |
| 89 | 112604897/0 | Elastic Washer Price: Call Us |
| 90 | 382318316/1 | OPC Spring and Lever Assy Price: Call Us |
| 91 | 112735661/0 | Screw Price: Call Us |
| 93 | 325060049/0 | Seat Switch Cam Price: Call Us |
| 94 | 112815050/0 | Screw Price: Call Us |
| 95 | 112523020/0 | Washer Price: Call Us |
| 96 | 112154330/0 | Nut Price: Call Us |
| 97 | 325755025/3 | Bracket Price: Call Us |
| 98 | 112727796/0 | Screw Price: Call Us |
| 99 | 9739-0531-22 | Nut Price: Call Us |
| 100 | 325430255/0 | Spring Price: Call Us |
| 101 | 125510119/0 | Tie Rod Price: Call Us |
| 102 | 124487997/0 | Cotter Pin Price: Call Us |
| 103 | 112155000/0 | Nut Price: Call Us |
| 104 | 125510168/0 | Pin Price: Call Us |
| 105 | 112155000/0 | Nut Price: Call Us |
