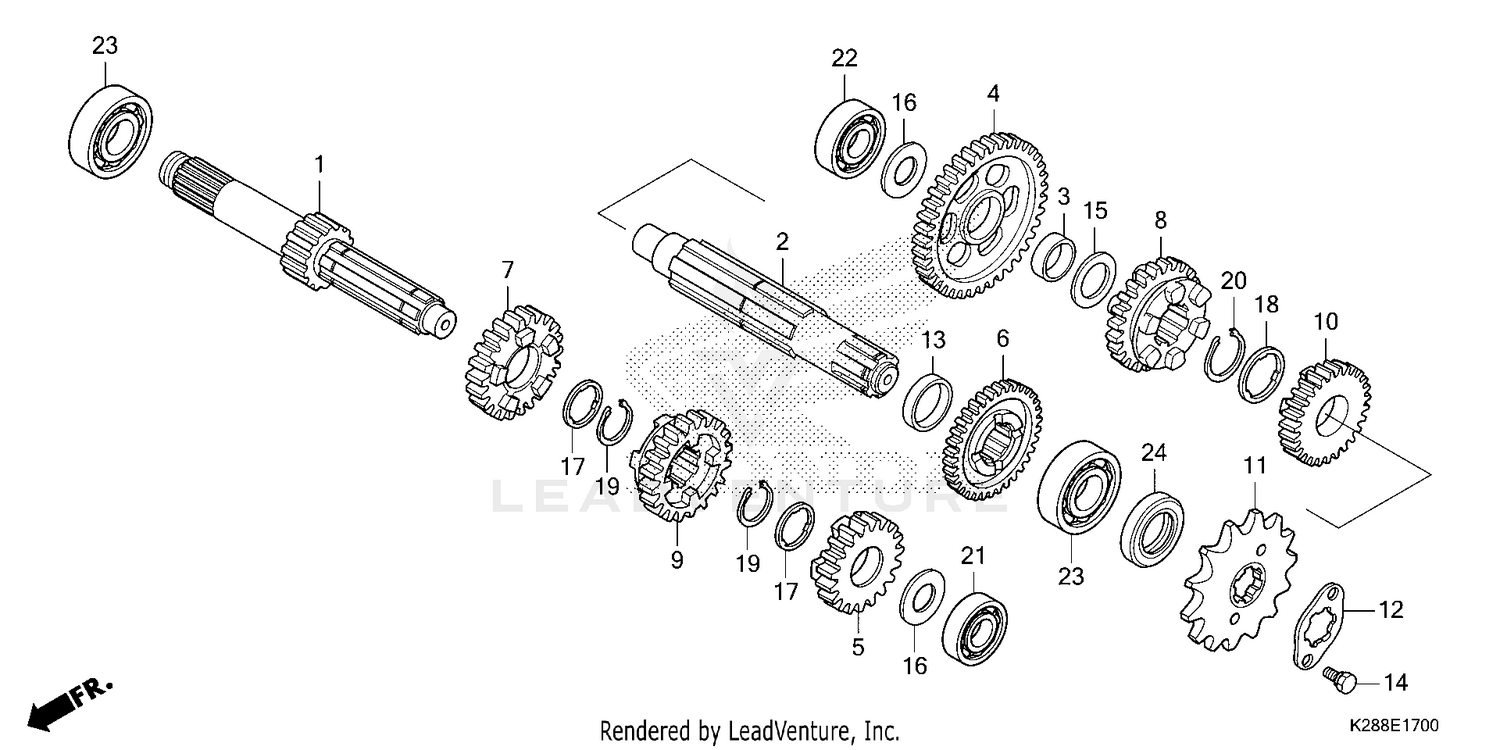

| Ref | Part Number | Description |
|---|
| 1 |
23211-KYY-900 |
MAINSHAFT (11T) Price: $125.23 |
| 2 |
23221-KYY-900 |
COUNTERSHAFT Price: $103.86 |
| 3 |
23415-KPH-900 |
BUSH (15MM) Price: $5.93 |
| 4 |
23421-KYY-900 |
GEAR, COUNTERSHAFT FIRST (35T) Price: $94.73 |
| 5 |
23431-KYY-900 |
GEAR, MAINSHAFT SECOND (17T) Price: $72.29 |
| 6 |
23441-KYY-900 |
GEAR, COUNTERSHAFT SECOND (29T) Price: $80.61 |
| 7 |
23451-KYY-901 |
GEAR, MAINSHAFT THIRD (21T) Price: $80.33 |
| 8 |
23461-KYY-901 |
GEAR, COUNTERSHAFT THIRD (26T) Price: $95.83 |
| 9 |
23471-KYY-901 |
GEAR, MAINSHAFT FOURTH (24T) Price: $87.51 |
| 10 |
23481-KYY-901 |
GEAR, COUNTERSHAFT FOURTH (22T) Price: $85.85 |
| 11 |
23801-K28-910 |
SPROCKET, DRIVE (13T) Price: $24.45 |
| 12 |
23802-K28-910 |
PLATE, FIXING Price: $4.76 |
| 13 |
23911-KWS-900 |
COLLAR (20MM) Price: $4.41 |
| 14 |
90084-041-000 |
BOLT, DRIVE SPROCKET FIXING Price: $5.80 |
| 15 |
90412-187-000 |
WASHER, THRUST (15MM) Price: $2.45 |
| 16 |
90412-KPH-900 |
WASHER, SPECIAL (12X23) Price: $0.80 |
| 17 |
90461-035-000 |
WASHER, SPLINE (17MM) Price: $2.95 |
| 18 |
90461-459-010 |
WASHER, SPLINE (20MM) Price: $6.33 |
| 19 |
90601-KYY-900 |
CIRCLIP (17MM) Price: $3.56 |
| 20 |
90602-KYY-900 |
CIRCLIP (20MM) Price: $4.02 |
| 21 |
96100-60010-00 |
BEARING, RADIAL BALL (6001) This part replaces 91013-KZV-J01. Price: $9.64 |
| 22 |
91014-KZV-J01 |
BEARING, RADIAL BALL (6201) Price: $18.20 |
| 23 |
91015-KZV-J01 |
BEARING, RADIAL BALL (6203) (NA USE ALT:96100-62030-00) Price: $15.14 |
