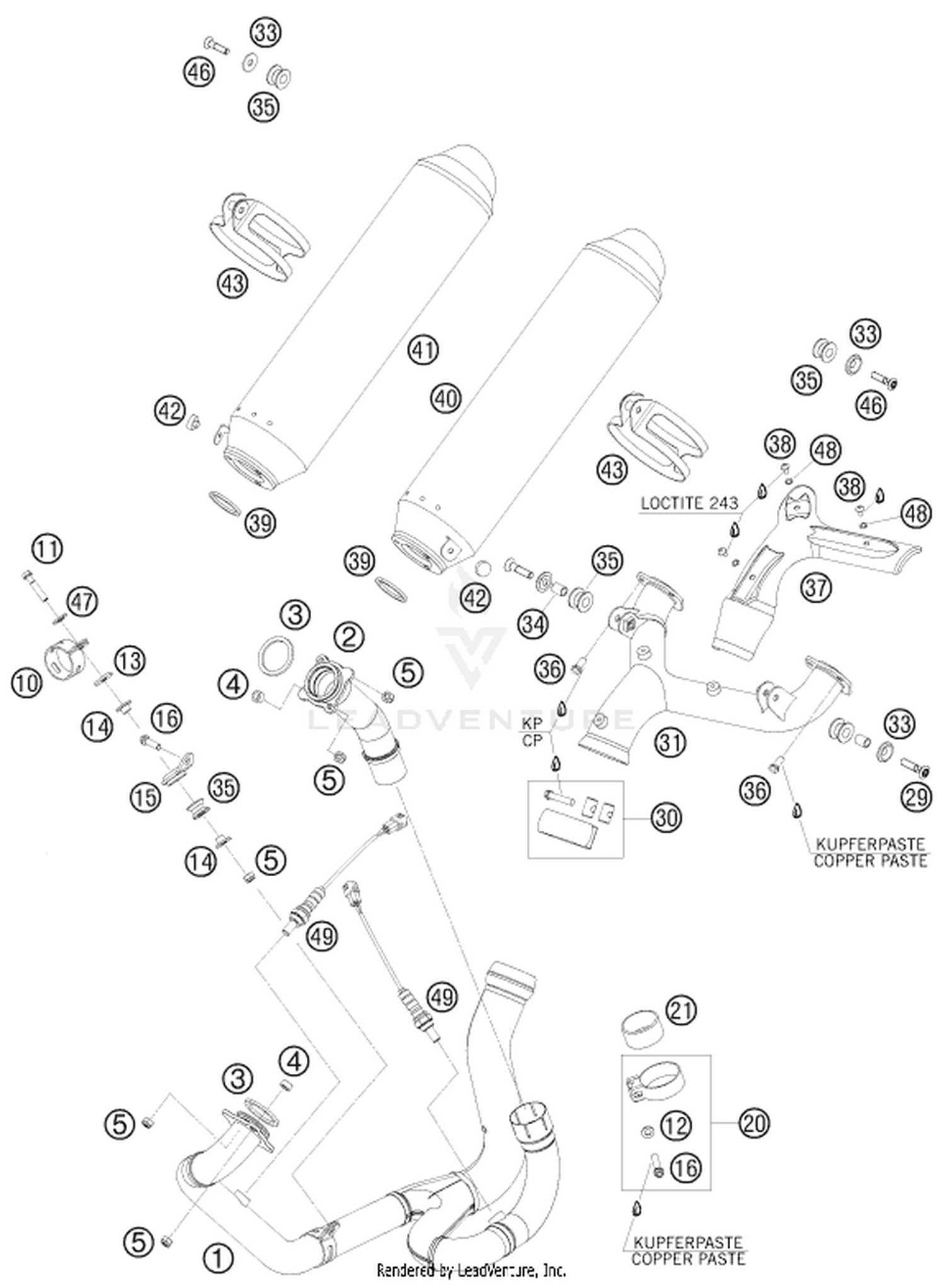

05 EXHAUST SYSTEM

05 EXHAUST SYSTEM

Parts (28)

RefPart NumberDescription
1 62605007000 EXHAUST MANIFOLD Not Available Price:
2 61105008000 EXHAUST PIPE REAR 07 Price: Call Us
3 61005005000 Exhaust gasket 05 Price: Call Us
4 61005009000 SPACER BUSH. 8,5X15X7,5 05 Price: Call Us
10 61005007049 CLAMP EXHAUST PIPE 05 Price: Call Us
11 0025080406 HH COLLAR SCREW M8X40 TX40 Price: Call Us
13 51005067000 INSOLATE WASHER 8,5X28X3 Price: Call Us
15 62505015150 EXHAUST PIPE BRACKET FRONT 07 Price: Call Us
16 0025080356 HH collar screw M8x35 TX40 Price: Call Us
20 61105051000 EXHAUST CLAMP 52,2MM 07 Price: Call Us
21 58405005001 Graphite ring 45X50X25 Price: Call Us
29 0019080356 COUNTERSUNK SCREW ISA45 M8X35 Price: Call Us
30 61005052000 EXHAUST CLAMP CPL. 05 Price: Call Us
31 62505048100 DISTRIBUTOR TUBE 05 Price: Call Us
32 0025080306 HH collar screw M8x30 Price: Call Us
33 62603061000 Special washer 8X24 ALU H=4.2 Price: Call Us
34 62505069000 SPACER BUSH. 8,5X12X18MM 05 Price: Call Us
36 0025080166 HH COLLAR SCREW M8X16 TX40 Price: Call Us
37 62505047000 THERMAL SHIELD 05 Price: Call Us
38 78105081010 SCREW TORX M5X10 Price: Call Us
39 60005005002 EXHAUST GASKET 03 Price: Call Us
40 62605082000 SILENCER L/S 08 Price: Call Us
41 62605083000 SILENCER R/S 08 Price: Call Us
42 54308042000 RUBBER BUFFER Price: Call Us
43 60005095000 CLAMP FOR SILENCER CPL. 03 Price: Call Us
46 0019080306S COUNTER-SUNK SCREW ISA45 M8X30 Price: Call Us
47 0021080003 WASHER DIN9021-A 8,4 Price: Call Us
48 0797050000 TOOTH LOCK WASHER DIN6797-J Price: Call Us
