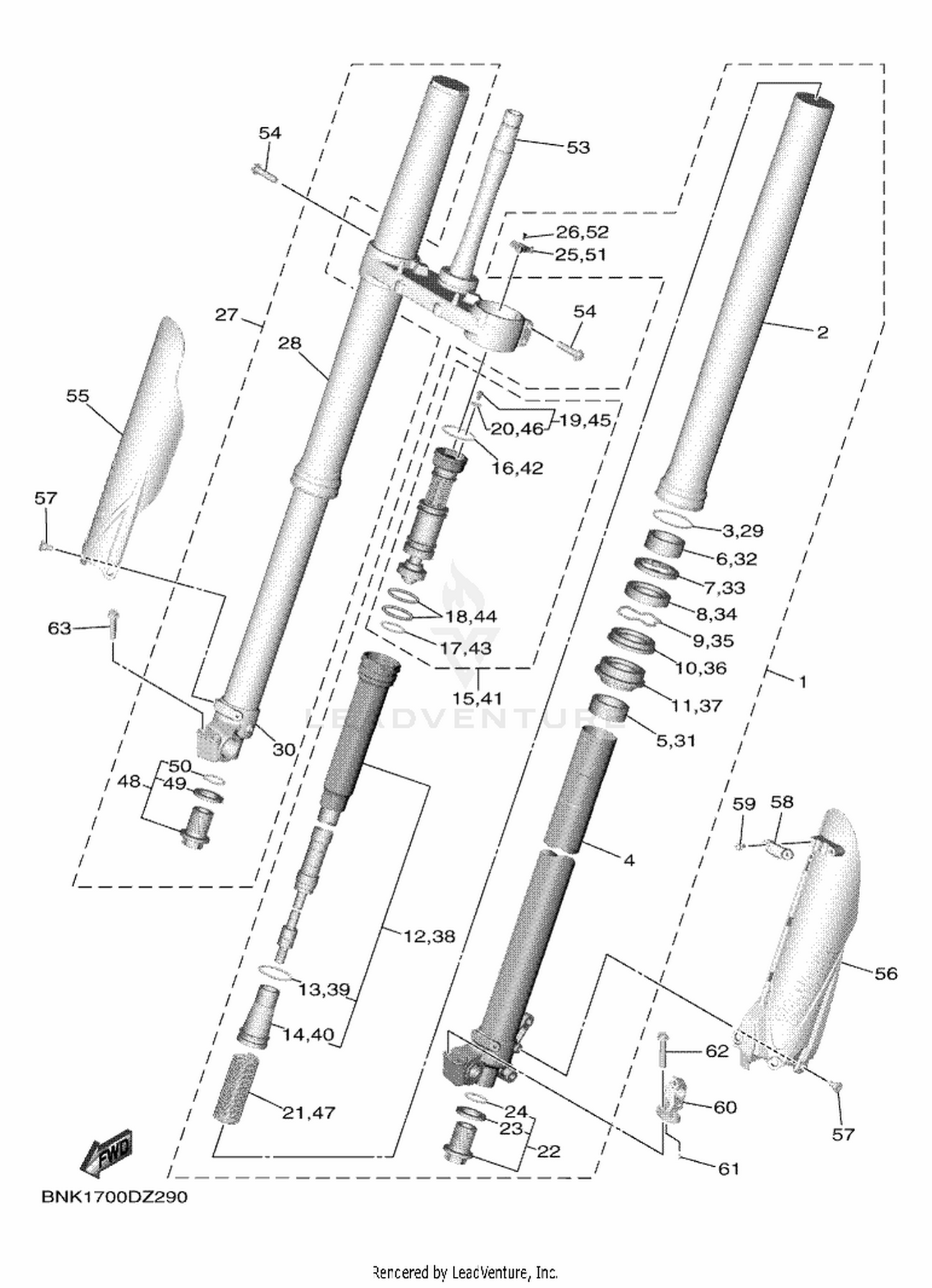

29 FRONT FORK
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BNK-23102-00 | FRONT FORK ASSY (L.H) Price: Call Us |
| 21 | BR9-23141-50 | SPRING, FRONT FORK (K=4.8) Price: Call Us |
| 27 | BNK-23103-00 | DAMPER ASSY. (R) Price: Call Us |
| 47 | BR9-23141-50 | SPRING, FRONT FORK (K=4.8) Price: Call Us |
| 53 | B7R-23340-00 | UNDER BRACKET COMP. Price: Call Us |
| 54 | 95E34-08035 | BOLT, FLANGE DEEP RECESS Price: Call Us |
| 55 | 17D-2315J-J0 | PROTECTOR 2 Price: Call Us |
| 56 | B7R-2315H-20 | PROTECTOR 1 Price: Call Us |
| 57 | 90109-06232 | BOLT Price: Call Us |
| 58 | B7R-23466-00 | CLAMP Price: Call Us |
| 60 | B7R-83955-00 | BRACKET 1 Price: Call Us |
| 61 | 93603-07073 | PIN, DOWEL Price: Call Us |
| 62 | 95E34-08045 | BOLT, FLANGE DEEP RECESS Price: Call Us |
