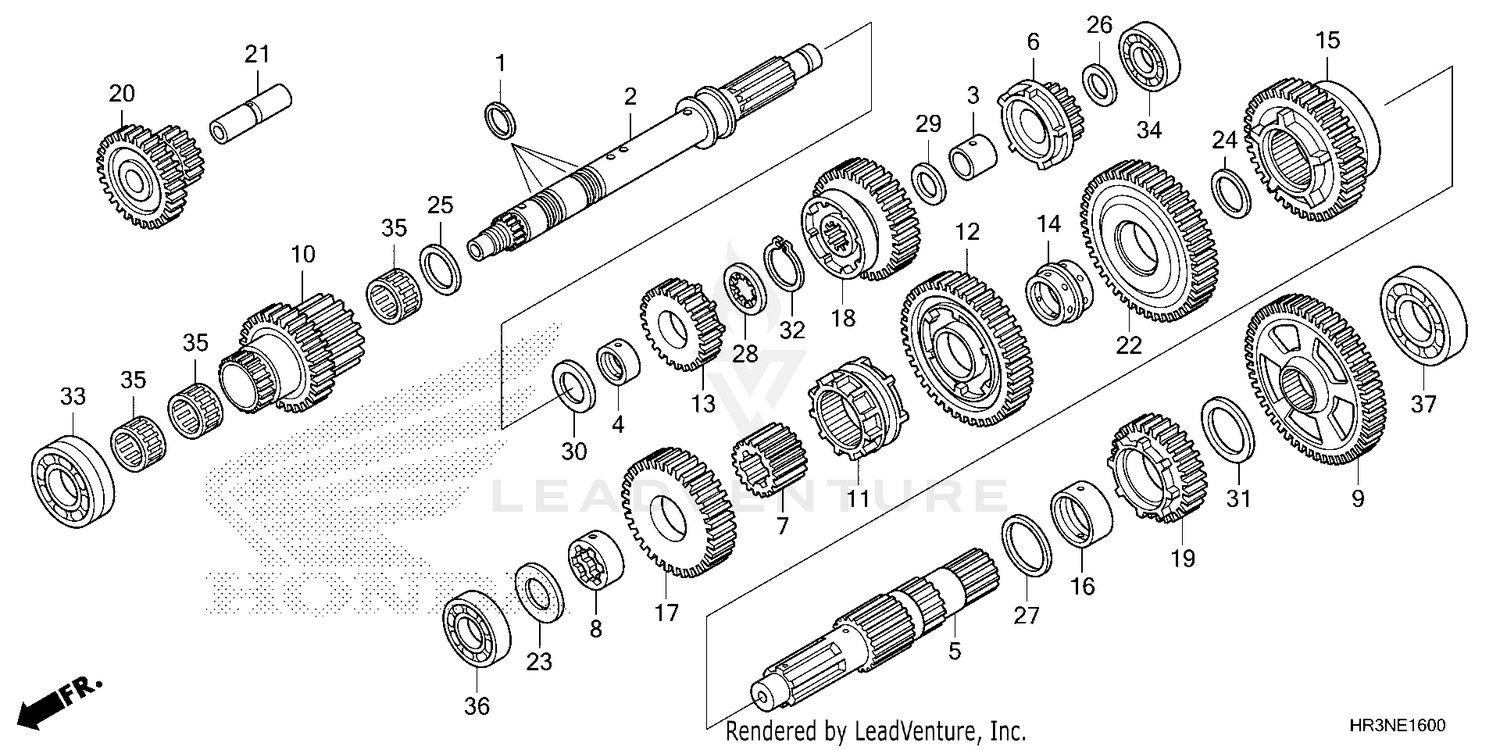

| Ref | Part Number | Description |
|---|
| 1 |
22814-HP7-A01 |
RING, SEALING (23MM) Price: $3.47 |
| 2 |
23210-HP7-A00 |
MAINSHAFT Price: $255.93 |
| 3 |
23212-HP7-A00 |
BUSH (17MM) Price: $12.75 |
| 4 |
23214-HA0-000 |
BUSH A (22MM) Price: $19.45 |
| 5 |
23221-HP7-A00 |
COUNTERSHAFT Price: $138.45 |
| 6 |
23411-HP7-A00 |
GEAR, MAINSHAFT FIRST (17T) Price: $122.40 |
| 7 |
23413-HP7-A00 |
COLLAR A, SPLINE Price: $26.58 |
| 8 |
23414-HA0-000 |
BUSH, SPLINE (25MM) Price: $27.60 |
| 9 |
23421-HP7-A00 |
GEAR, COUNTERSHAFT FIRST (52T) Price: $100.67 |
| 10 |
23431-HP7-A00 |
GEAR, MAINSHAFT SECOND & FOURTH (19T/28T) Price: $137.85 |
| 11 |
23432-HP7-A00 |
SHIFTER, COUNTERSHAFT SECOND &FOURTH GEAR (5AT) Price: $73.69 |
| 12 |
23441-HP7-A00 |
GEAR, COUNTERSHAFT SECOND (41T) Price: $104.07 |
| 13 |
23451-HP7-A00 |
GEAR, MAINSHAFT THIRD (24T) Price: $97.13 |
| 14 |
23454-HN2-000 |
BUSH, REVERSE GEAR (HIGH) Price: $21.89 |
| 15 |
23461-HP7-A00 |
GEAR, COUNTERSHAFT THIRD (37T) Price: $110.64 |
| 16 |
23472-MT3-000 |
COLLAR (28MM) Price: $31.62 |
| 17 |
23481-HP7-A00 |
GEAR, COUNTERSHAFT FOURTH (33T) Price: $102.49 |
| 18 |
23491-HP7-A00 |
GEAR, MAINSHAFT FIFTH (33T) Price: $116.05 |
| 19 |
23511-HP7-A00 |
GEAR, COUNTERSHAFT FIFTH (28T) Price: $98.84 |
| 20 |
23721-HR6-MF0 |
GEAR (27T/16T) Price: $69.64 |
| 21 |
23731-HP7-A00 |
SHAFT, REVERSE IDLE Price: $17.65 |
| 22 |
23751-HP7-A00 |
GEAR, REVERSE COUNTER (45T) Price: $112.44 |
| 23 |
90401-HP0-A00 |
WASHER, THRUST (20MM) Price: $5.49 |
| 24 |
90401-HP1-670 |
WASHER (25X32X1.0) Price: $3.27 |
| 25 |
90401-HP7-A00 |
WASHER, THRUST (23MM) Price: $3.24 |
| 26 |
90403-HN8-000 |
WASHER, SPECIAL (17MM) Price: $3.31 |
| 27 |
90405-HP7-A00 |
WASHER, THRUST (28MM) Price: $3.24 |
| 28 |
90451-KY1-000 |
WASHER, SPLINE (22MM) Price: $4.80 |
| 29 |
90454-KF0-000 |
WASHER, THRUST (17MM) Price: $5.51 |
| 30 |
90455-ML7-000 |
WASHER B, THRUST (22MM) (BLUE) Price: $6.11 |
| 31 |
90554-MCA-000 |
WASHER, THRUST (28MM) Price: $2.73 |
| 32 |
90601-329-000 |
CIRCLIP (OUTER) (22MM) Price: $3.05 |
| 33 |
91005-HP7-A01 |
BEARING, RADIAL BALL (35X62X18) Price: $38.31 |
| 34 |
91006-HP7-A01 |
BEARING, RADIAL BALL (6203) Price: $19.05 |
| 35 |
91021-HP7-A01 |
BEARING, NEEDLE (23X27X13) Price: $8.22 |
| 36 |
96100-62040-00 |
BEARING, RADIAL BALL (6204) Price: $14.82 |
