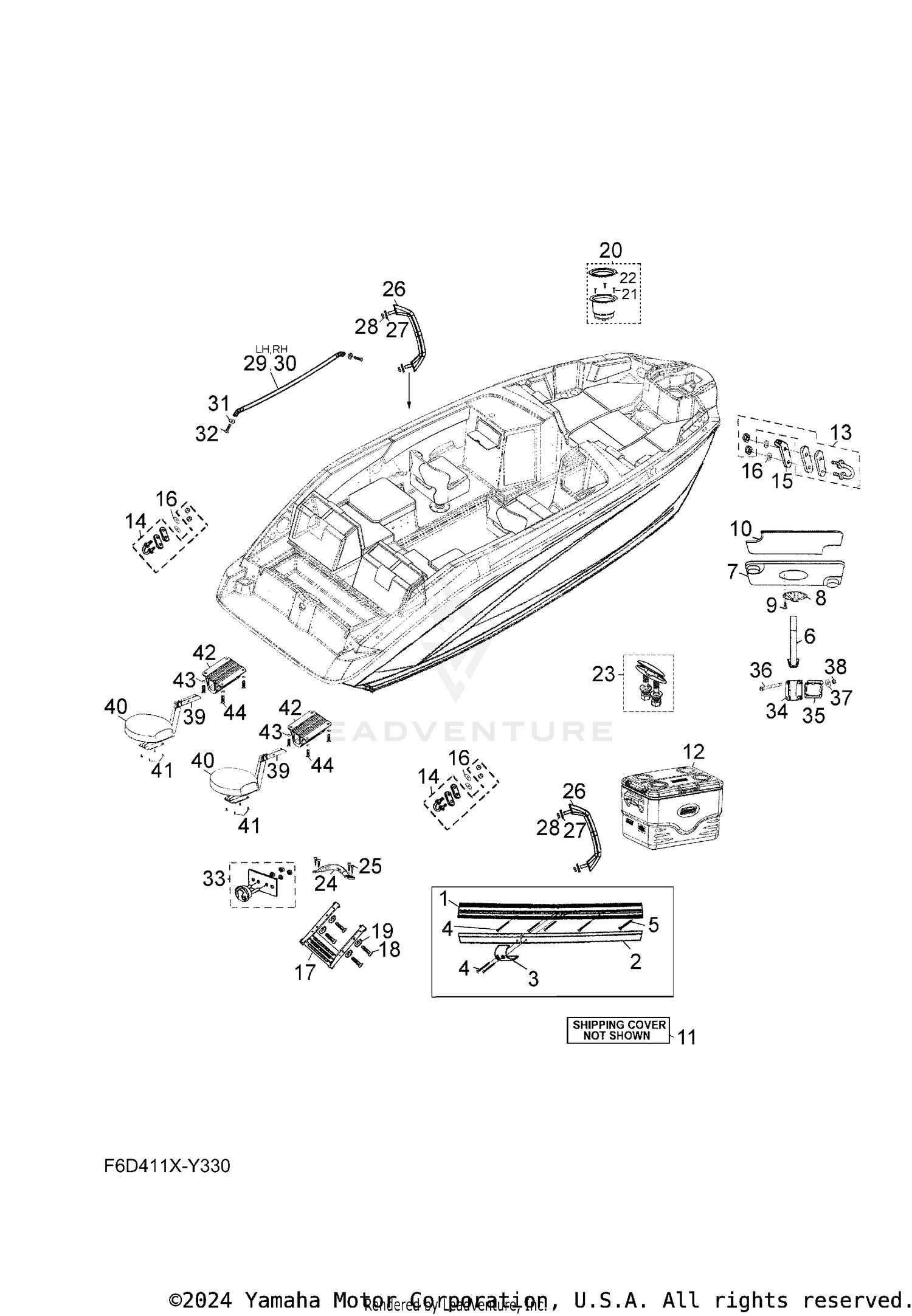

| Ref | Part Number | Description |
|---|
| 1 |
F2D-U2557-00-00 |
GUNWALE Price: $56.99 |
| 2 |
F2A-U2519-10-00 |
INNER,GUNWALE This part replaces F2A-U2519-00-00. Price: $370.99 |
| 3 |
F2A-U2518-00-00 |
COVER,GUNWALE Price: $20.99 |
| 5 |
90161-10S20-00 |
SCREW, #10 X 1-1/4 Price: $5.99 |
| 6 |
F3H-U4814-01-00 |
STANCHION,TABLE 1 Price: $335.99 |
| 7 |
F3F-U4811-00-00 |
TABLE Price: $263.99 |
| 8 |
F3H-U4826-00-00 |
BRKT., TABLE 2 Price: $39.99 |
| 9 |
90169-10SA1-00 |
TAPPING SCREW Price: $5.99 |
| 11 |
F6D-U3280-00-00 |
BOAT COVER ASSY. Price: $637.99 |
| 12 |
F3F-U4360-11-00 |
ICE BOX COMP. This part replaces F3F-U4360-10-00. Price: $100.99 |
| 13 |
F3F-U1624-00-00 |
BOW EYE 1 Price: $35.99 |
| 14 |
F3A-U1624-00-00 |
BOW EYE 1 Price: $40.99 |
| 15 |
F1C-U1794-00-00 |
BRACKET Price: $15.49 |
| 16 |
90204-18S00-00 |
WASHER, SPRING Price: $4.99 |
| 17 |
F6B-U2425-01-00 |
LADDER, TRANSOM Price: $338.99 |
| 18 |
90101-08802-00 |
BOLT Price: $1.15 |
| 19 |
9299R-08600-00 |
WASHER Price: $6.99 |
| 20 |
F2J-U5633-00-00 |
HOLDER, DRINK Price: $19.99 |
| 21 |
90161-06S12-00 |
SCREW, COUTERSUNK Price: $5.99 |
| 22 |
F2J-U7845-00-00 |
RING, TRIM Price: $6.99 |
| 23 |
F1C-U1616-10-00 |
CLEAT Price: $109.99 |
| 24 |
F1C-U1552-01-00 |
HANDLE Price: $20.99 |
| 25 |
90167-08S12-00 |
SCREW, TAPPING Price: $5.99 |
| 26 |
F4B-U270B-01-00 |
GRIP ASSY Price: $70.99 |
| 27 |
90201-099U1-00 |
WASHER, PLATE Price: $6.99 |
| 28 |
90185-15S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 29 |
F6D-U2767-00-00 |
HAND RAIL Price: $52.99 |
| 30 |
F6D-U2767-10-00 |
HAND RAIL Price: $55.99 |
| 31 |
90201-099U1-00 |
WASHER, PLATE Price: $6.99 |
| 32 |
90101-05S14-00 |
BOLT Price: $5.99 |
| 33 |
F1T-U1629-00-00 |
SKI TOWS Price: $74.99 |
| 34 |
F3H-U4825-10-00 |
BRACKET, TABLE Price: $109.99 |
| 35 |
F4X-U471E-00-00 |
SPACER 1 Price: $75.99 |
| 36 |
90151-14S36-00 |
SCREW, COUNTERSUNK Price: $5.99 |
| 37 |
90201-14S00-00 |
WASHER, PLATE Price: $6.99 |
| 38 |
90185-14S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 39 |
F6D-U3765-00-00 |
SEAT, LEG Price: $345.99 |
| 40 |
F4X-U381A-01-00 |
SEAT, POOL This part replaces F4X-U381A-00-00. Price: $211.99 |
| 41 |
90151-14S12-00 |
SCREW, COUNTERSUNK Price: $5.99 |
| 42 |
F6D-U371F-00-00 |
BRKT., SEAT Price: $90.99 |
| 43 |
9299R-08600-00 |
WASHER Price: $6.99 |
