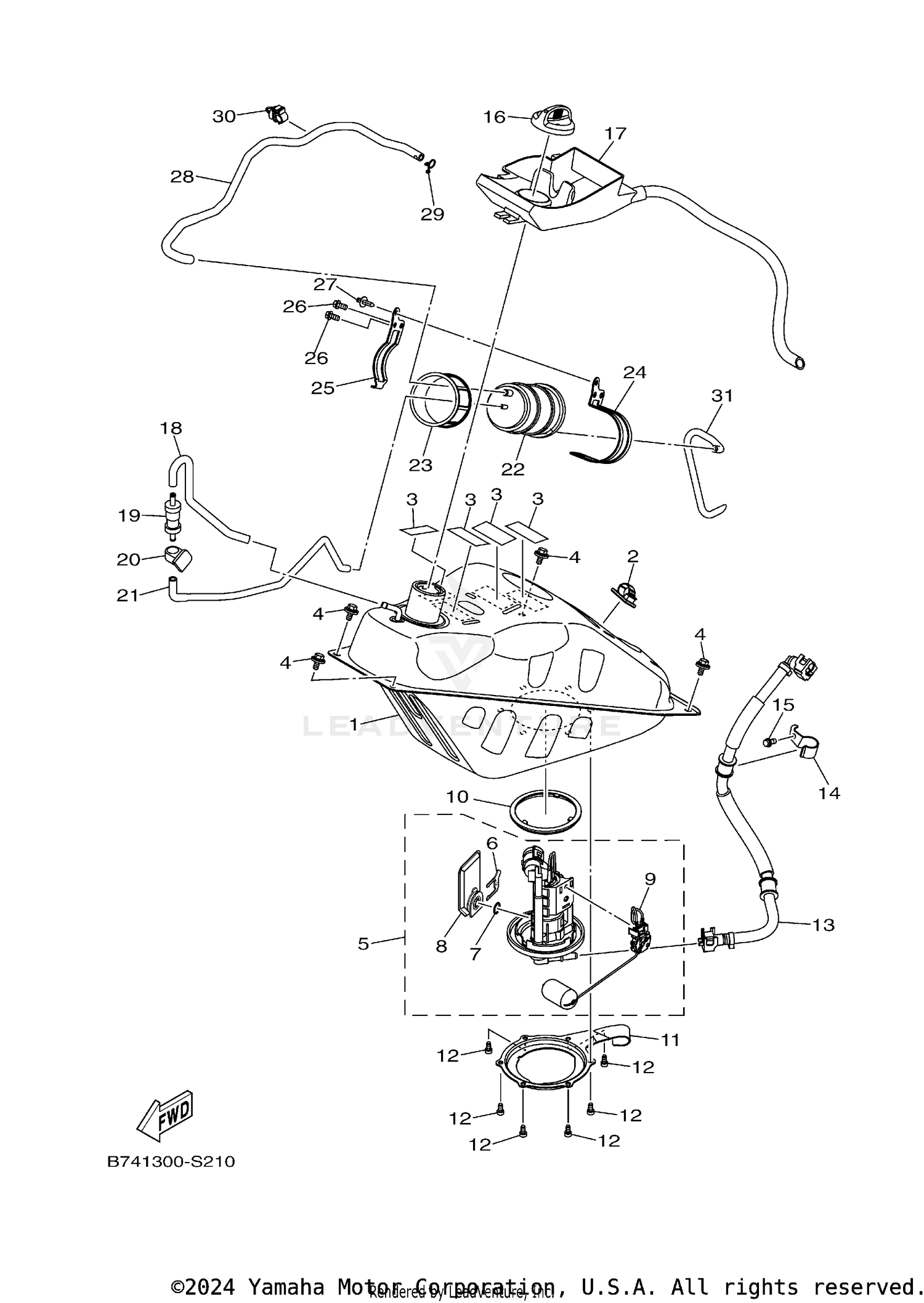

FUEL TANK
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B74-F4110-03-00 | FUEL TANK COMP. This part replaces B74-F4110-01-00. Price: $116.99 |
| 2 | 90464-13185-00 | CLAMP Price: $6.49 |
| 3 | 5D9-F414G-00-00 | SEAL Price: $1.70 |
| 4 | 90119-068A2-00 | BOLT, WITH WASHER Price: $0.80 |
| 5 | B74-E3907-01-00 | FUEL PUMP COMP. This part replaces B74-E3907-00-00. Price: $255.99 |
| 6 | 3C1-F4519-00-00 | CLIP Price: $4.85 |
| 7 | 3C1-24512-00-00 | GASKET Price: $24.99 |
| 8 | 3C1-E3915-00-00 | FILTER Price: $19.49 |
| 9 | B74-H5752-00-00 | SENDER UNIT ASSY, FUEL METER Price: $22.99 |
| 10 | 3C1-F4486-00-00 | O-RING Price: $37.99 |
| 11 | B74-F4425-00-00 | BRACKET, FUEL PUMP 1 Price: $11.49 |
| 12 | 91312-05010-00 | BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 13 | B74-E3971-01-00 | PIPE, FUEL 1 This part replaces B74-E3971-00-00. Price: $58.99 |
| 14 | B74-F419A-00-00 | HOLDER Price: $3.00 |
| 15 | 95022-06012-00 | BOLT, FLANGE Price: $3.55 |
| 16 | B74-F4610-00-00 | CAP ASSY Price: $29.99 |
| 17 | B74-F414A-00-00 | COVER, FILLER Price: $17.99 |
| 18 | B74-F4313-00-00 | PIPE 3 Price: $14.99 |
| 19 | 1DW-F4180-02-00 | ROLL OVER VALVE ASSY Price: $78.99 |
| 20 | B74-F4135-00-00 | CLAMP 1 Price: $1.95 |
| 21 | B74-F4314-10-00 | PIPE 4 Price: $26.99 |
| 22 | B74-F4170-00-00 | CANISTER ASSY Price: $73.99 |
| 23 | B74-F483H-00-00 | BAND Price: $2.05 |
| 24 | B74-F452E-00-00 | STAY Price: $3.55 |
| 25 | B74-F454E-00-00 | STAY 2 Price: $2.45 |
| 26 | 95022-06012-00 | BOLT, FLANGE Price: $3.55 |
| 27 | 90269-06816-00 | RIVET Price: $1.70 |
| 28 | B74-F4315-10-00 | PIPE 5 Price: $29.99 |
| 29 | 90467-090A2-00 | CLIP This part replaces 90467-09006-00. Price: $4.75 |
| 30 | 90464-10008-00 | CLAMP Price: $3.80 |
