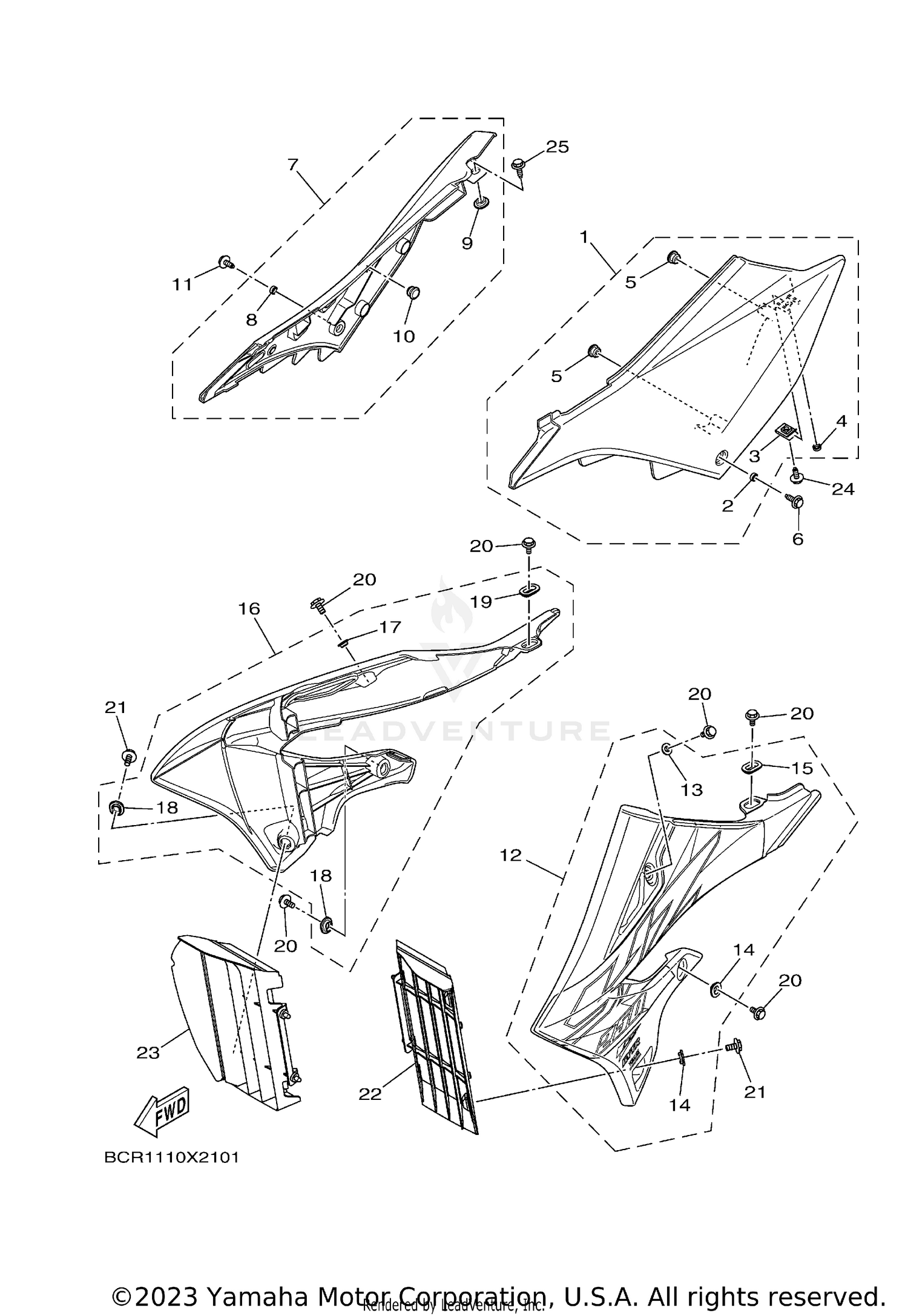

SIDE COVER
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BCR-21710-00-00 | SIDE COVER ASSY 1 Price: $35.99 |
| 2 | 90387-07015-00 | COLLAR Price: $2.75 |
| 3 | 90183-060A7-00 | NUT, SPRING Price: $9.49 |
| 4 | 90387-06069-00 | COLLAR Price: $9.49 |
| 5 | 90480-10068-00 | GROMMET Price: $9.49 |
| 6 | 90105-06178-00 | BOLT, FLANGE Price: $5.49 |
| 7 | BCR-21720-00-00 | SIDE COVER ASSY 2 Price: $34.99 |
| 8 | 90387-07015-00 | COLLAR Price: $2.75 |
| 9 | 17D-14449-00-00 | COLLAR Price: $8.49 |
| 10 | 90480-10068-00 | GROMMET Price: $9.49 |
| 11 | 90105-06178-00 | BOLT, FLANGE Price: $5.49 |
| 13 | 90387-06009-00 | COLLAR Price: $11.49 |
| 14 | 5TA-21749-00-00 | COLLAR Price: $12.99 |
| 15 | 1SL-21748-00-00 | COLLAR Price: $12.99 |
| 17 | 90387-06009-00 | COLLAR Price: $11.49 |
| 18 | 5TA-21749-00-00 | COLLAR Price: $12.99 |
| 19 | 1SL-21748-00-00 | COLLAR Price: $12.99 |
| 20 | 90105-06064-00 | BOLT, FLANGE Price: $3.45 |
| 21 | 90119-06166-00 | BOLT, WITH WASHER Price: $6.49 |
| 22 | BCR-2172A-00-00 | PANEL 1 Price: $23.99 |
| 23 | BCR-2172F-00-00 | PANEL 2 Price: $23.99 |
| 24 | 90119-06322-00 | BOLT, WITH WASHER Price: $3.50 |
