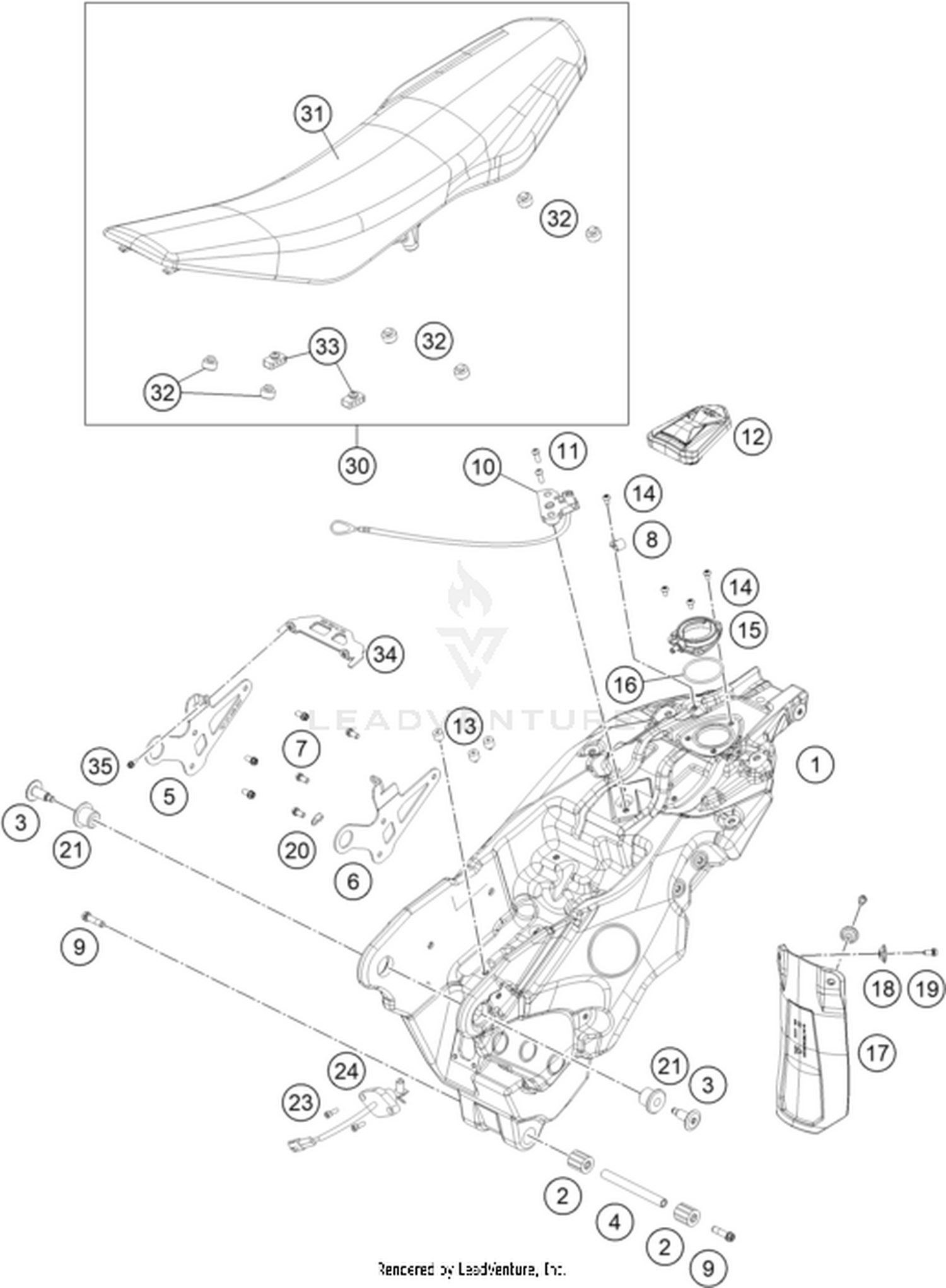

07 TANK, SEAT
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 76107013000 | Fuel tank Price: Call Us |
| 2 | 76507065100 | RUBBER BUSHING 11,7X24,7 L=26 Price: Call Us |
| 3 | 76507060200 | Attachement bolt top This part replaces 76507060100. Price: Call Us |
| 4 | 76507061100 | Bearing sleeve, bottom Price: Call Us |
| 5 | 76107028000 | Tank retaining plate, right, c Price: Call Us |
| 6 | 76107027000 | Tank retaining plate, left, cm Price: Call Us |
| 7 | 0025080166 | HH COLLAR SCREW M8X16 TX40 Price: Call Us |
| 8 | 57013070000 | PVC-CLAMP 7/16'' HEYCO 3377 Price: Call Us |
| 9 | 0025080306S | HH COLLAR SCREW M8X30 TX40 Price: Call Us |
| 10 | 61707052000 | Rider seat lock cpl. Price: Call Us |
| 11 | 0738060185S | Ovl. hd. scr. TX M6x16 A2-70 S Price: Call Us |
| 12 | 76907008000 | Fuel tank cap Price: Call Us |
| 14 | 58605083010 | SCREW TORX M5X10 05 Price: Call Us |
| 15 | 76507108050 | Closure flange Price: Call Us |
| 16 | 0770050030 | O-ring 50.00X3.00 VITON Price: Call Us |
| 17 | 76506010100 | Splash protection Price: Call Us |
| 18 | 72210079100 | Supporting shell This part replaces 72210079000. Price: Call Us |
| 19 | 0025060106 | HH collar screw M6x10 TX30 Price: Call Us |
| 20 | 0800001300600 | Clamp for cable, SB lock M5 Price: Call Us |
| 21 | 76507066000 | RUBB.BEAR.BOX 12x24x35 L=24,5 Price: Call Us |
| 23 | 0912050163 | AH collar screw DIN 912 M5x16 Price: Call Us |
| 24 | 58207080100 | GAS-LEVEL SENSOR ADV. 2006 Price: Call Us |
| 30 | 76107040000EBA | Seat Price: Call Us |
| 31 | 76907040050EBA | Seat cover Price: Call Us |
| 32 | 76907040045 | Seat rubber Price: Call Us |
| 33 | 28503002010 | Rubber support Price: Call Us |
| 34 | 76111056044 | Retaining bracket battery cmpl Price: Call Us |
