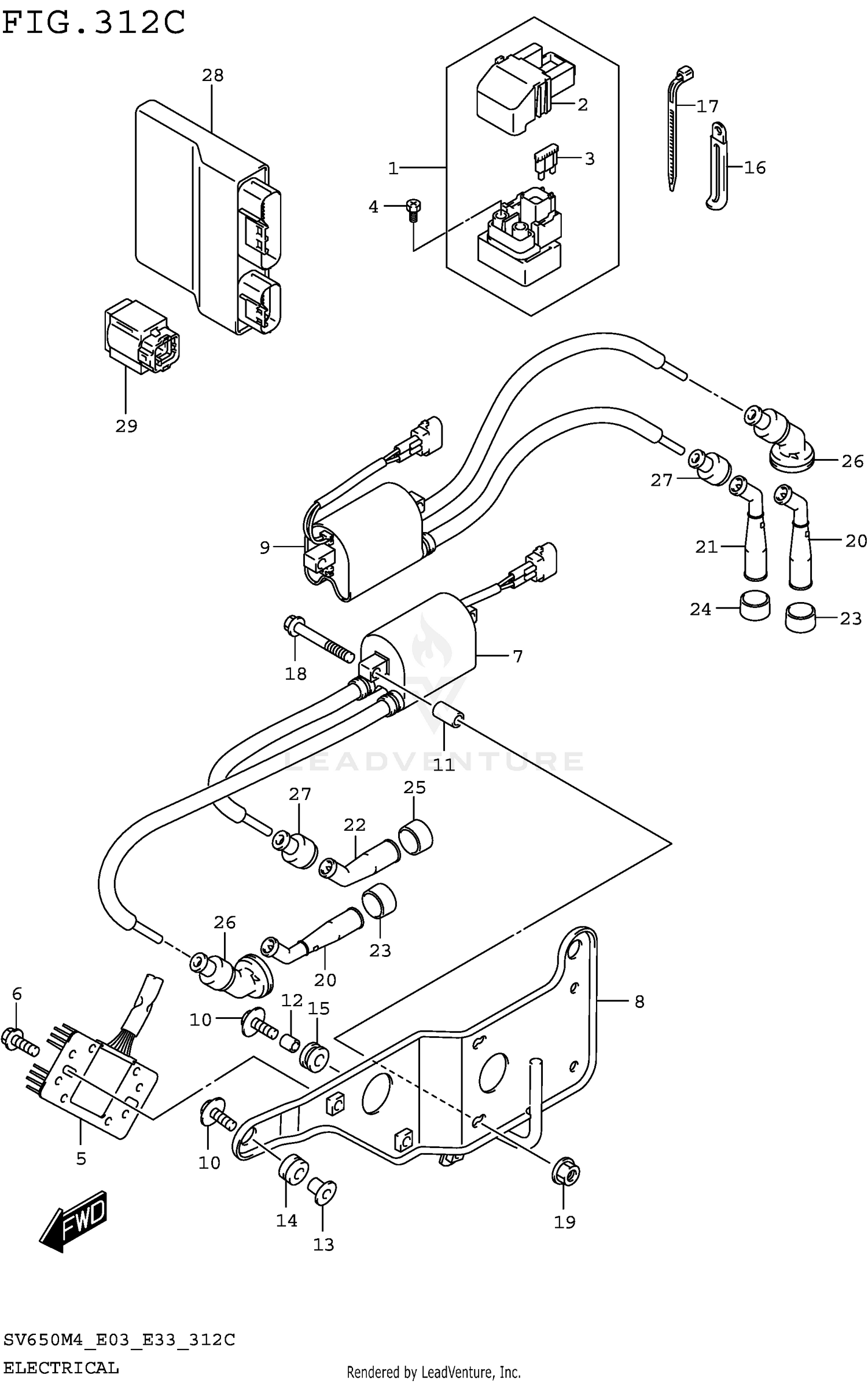

ELECTRICAL (SV650AM4 E28)
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 31800-06G02 | RELAY ASSY, STARTING MOTOR Price: $83.16 |
| 4 | 09128-06013 | SCREW (6X8) Price: $1.50 |
| 5 | 32800-47H00 | RECTIFIER ASSY Price: $325.09 |
| 6 | 02162-0616B | SCREW (6X16) This part replaces 02162-0616A. Price: $2.48 |
| 7 | 33410-18K00 | COIL ASSY,IGNITION FRONT Price: $143.12 |
| 8 | 33414-44H01 | BRACKET,IGN COIL REAR Price: $34.58 |
| 9 | 33420-18K00 | COIL ASSY,IGNITION REAR Price: $143.12 |
| 10 | 09116-06188 | BOLT (6X20) Price: $2.29 |
| 11 | 09180-06195 | SPACER (6.4X10X18) Price: $4.54 |
| 12 | 09180-06263 | SPACER (6.5X9X9) Price: $2.48 |
| 13 | 09180-06331 | SPACER (6.2X8.4X10.9) Price: $5.01 |
| 14 | 09320-08501 | CUSHION (8X18X10) Price: $3.99 |
| 15 | 09320-09016 | CUSHION (9X18X9.5) Price: $2.37 |
| 16 | 09404-06030 | CLAMP (L:80) Price: Call Us |
| 17 | 09407-18402 | CLAMP (L:165) Price: $2.68 |
| 18 | 09103-06531 | BOLT (6X40) Price: $2.50 |
| 19 | 08316-1006A | NUT (6X12) Price: $2.64 |
| 20 | 33510-17G00 | CAP ASSY,SPARK PLUG Price: $41.33 |
| 23 | 33541-23E10 | SEAL,SPARK PLUG Price: $8.32 |
| 26 | 33542-17G01 | SEAL,HIGH TENSION CORD CTR Price: $8.78 |
| 27 | 33542-38B00 | SEAL, HIGH TENSION Price: $5.36 |
| 28 | 32920-18K51 | CONTROL UNIT,FI Price: Call Us |
