| Ref | Part Number | Description |
|---|
| 1 |
50100-HS0-A00 |

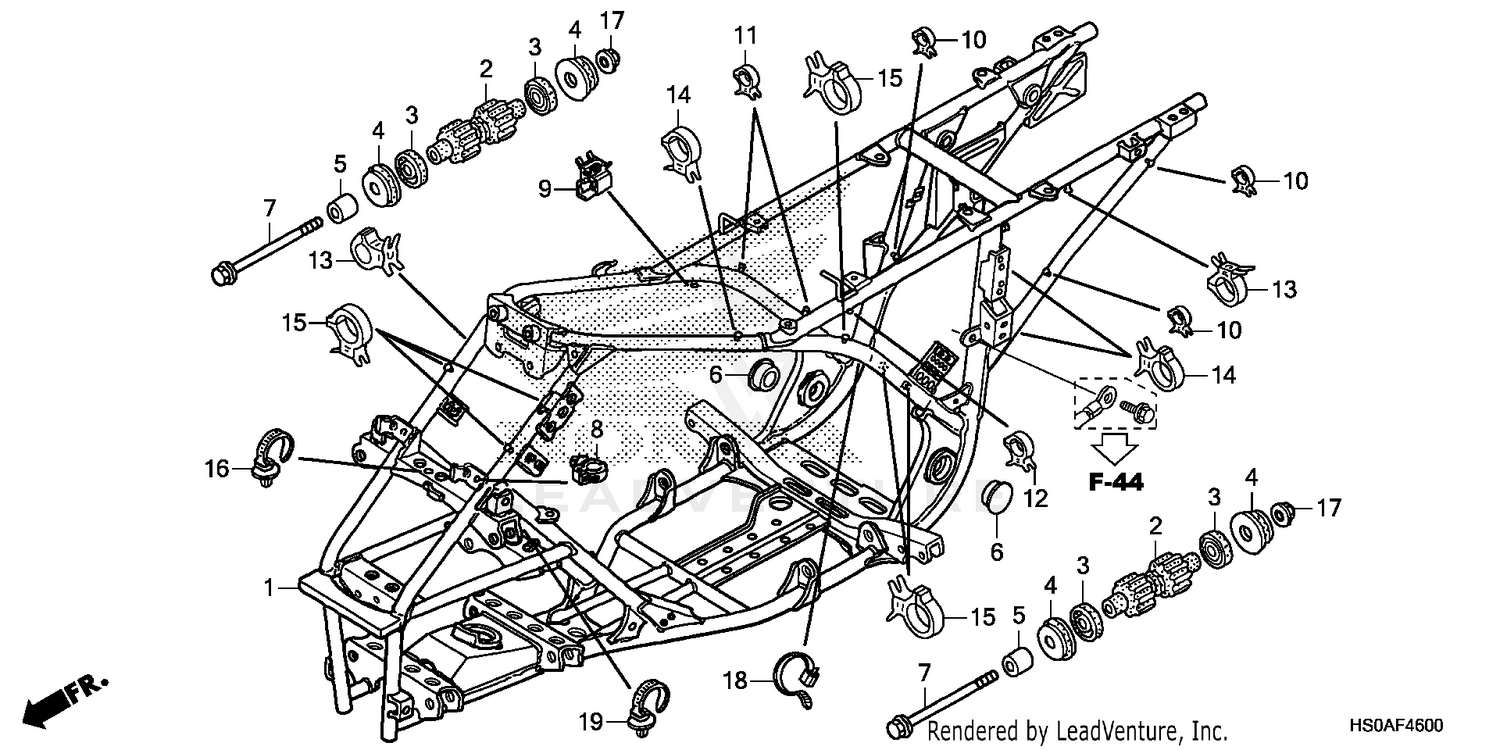

FRAME Price: $1,031.33 |
| 2 |
50202-HM8-B41 |
RUBBER, ENGINE MOUNTING (LOWER) Price: $22.31 |
| 3 |
50203-HM7-003 |
DUST SEAL, ENGINE MOUNTING Price: $24.73 |
| 4 |
50204-HM8-000 |
RUBBER C, MOUNTING Price: $8.76 |
| 5 |
50205-HM8-000 |
COLLAR, ENGINE HANGER Price: $10.25 |
| 6 |
50750-MB0-000 |
CAP, MAIN STAND PIPE Price: $7.42 |
| 7 |
90115-HM8-003 |
BOLT, FLANGE (10X145) Price: $8.27 |
| 8 |
90652-HC4-003 |
CLAMP, HARNESS Price: $7.47 |
| 9 |
90662-MGS-D81 |
CLAMP, BRAKE PIPE (7.0) Price: $3.47 |
| 10 |
90690-GHB-631 |
CLIP, CABLE (8MM) Price: $2.49 |
| 11 |
90690-GHB-641 |
CLIP, CABLE (10MM) CLIP, CABLE (8MM) Price: $2.49 |
| 12 |
90690-GHB-651 |
CLIP, CABLE (15MM) Price: $2.49 |
| 13 |
90690-GHB-661 |
CLIP, CABLE (20MM) Price: $2.49 |
| 14 |
90690-GHB-671 |
CLIP, CABLE (25MM) Price: $2.49 |
| 15 |
90690-GHB-681 |
CLIP, CABLE (30MM) Price: $3.65 |
| 16 |
91540-S30-003 |
CLIP, HARNESS BAND (151.5MM) (NATURAL) Price: $3.58 |
| 17 |
94050-10000 |
NUT, FLANGE (10MM) Price: $1.62 |
| 18 |
90651-KV6-003 |
BAND, WIRE (165MM) (BLACK) Price: $3.65 |
