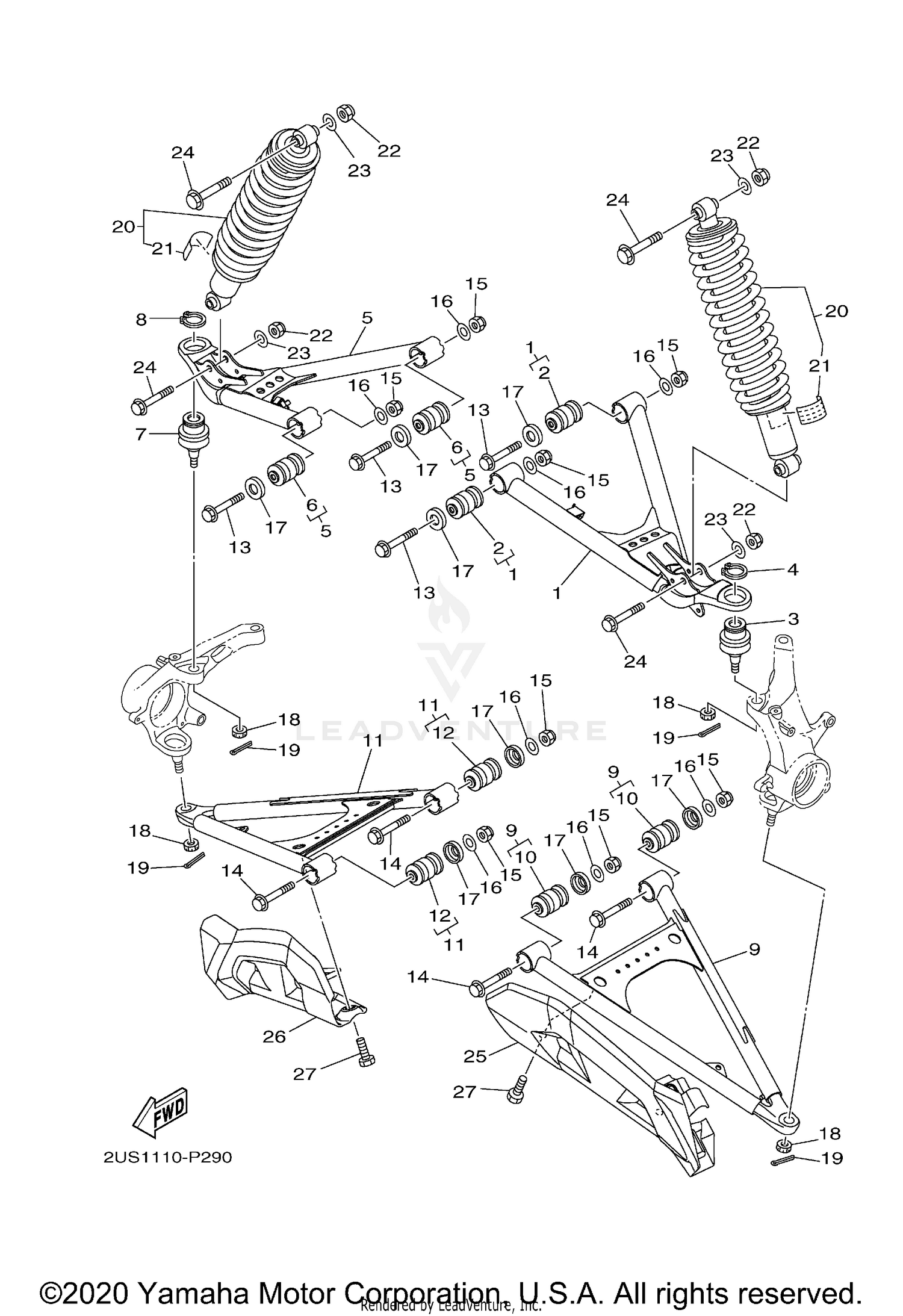

| Ref | Part Number | Description |
|---|
| 1 |
1XD-F3540-02-00 |
FRONT UPPER ARM CO Price: $95.99 |
| 2 |
1HP-F3526-00-00 |
BUSH Price: $24.99 |
| 3 |
1XD-23579-00-00 |
BALL JOINT 2 Price: $83.99 |
| 4 |
93410-32075-00 |
CIRCLIP This part replaces 99009-32400-00. Price: $10.49 |
| 5 |
1XD-F3550-02-00 |
FRONT UPPER ARM CO Price: $95.99 |
| 6 |
1HP-F3526-00-00 |
BUSH Price: $24.99 |
| 7 |
1XD-23579-00-00 |
BALL JOINT 2 Price: $83.99 |
| 8 |
93410-32075-00 |
CIRCLIP This part replaces 99009-32400-00. Price: $10.49 |
| 9 |
2PG-F3570-01-00 |
FRONT LOWER ARM CO Price: $99.99 |
| 10 |
1HP-F3526-00-00 |
BUSH Price: $24.99 |
| 11 |
2PG-F3580-01-00 |
FRONT LOWER ARM CO Price: $95.99 |
| 12 |
1HP-F3526-00-00 |
BUSH Price: $24.99 |
| 13 |
90105-10272-00 |
BOLT, FLANGE Price: $8.49 |
| 14 |
90105-10267-00 |
BOLT, FLANGE Price: $10.49 |
| 15 |
90185-10012-00 |
NUT, SELF-LOCKING Price: $3.60 |
| 16 |
90201-10035-00 |
WASHER, PLATE Price: $4.50 |
| 17 |
BG4-F3517-00-00 |
COVER, THRUST 1 Price: $1.15 |
| 18 |
90171-12001-00 |
NUT, CASTLE Price: $3.55 |
| 19 |
91490-25020-00 |
PIN. COTTER This part replaces 91402-25020-00. Price: $3.45 |
| 20 |
BHE-F3390-00-00 |
SHOCK ABSORBER ASS Price: $209.99 |
| 21 |
B4J-F2259-00-00 |
LABEL, WARNING Price: $1.95 |
| 22 |
90185-10012-00 |
NUT, SELF-LOCKING Price: $3.60 |
| 23 |
90201-10035-00 |
WASHER, PLATE Price: $4.50 |
| 24 |
90105-10199-00 |
BOLT, FLANGE Price: $3.50 |
| 25 |
1XD-F3123-00-00 |
COVER, UNDER 1 Price: $14.49 |
| 26 |
1XD-F3133-00-00 |
COVER, LOWER 2 Price: $12.99 |
