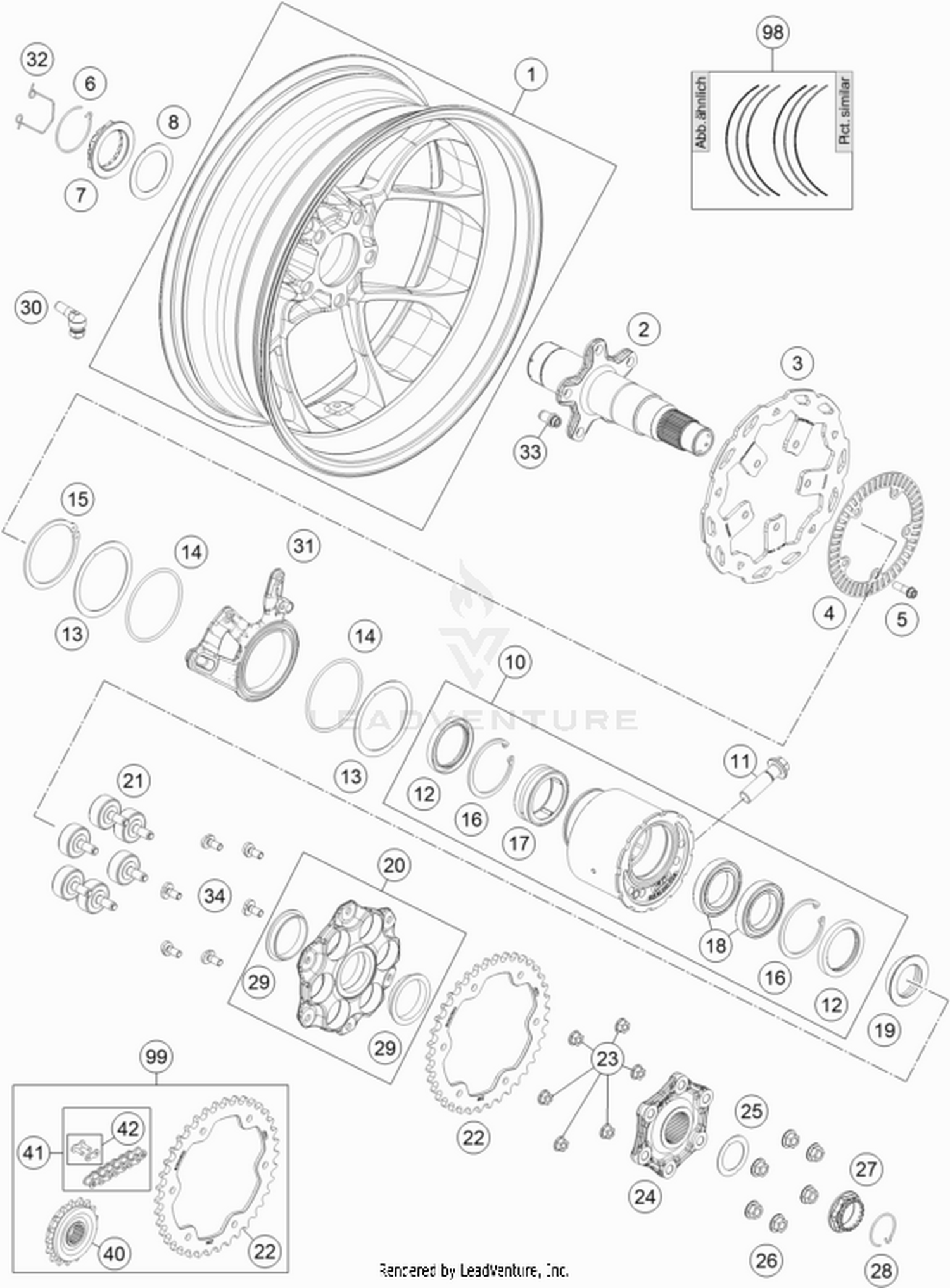

| Ref | Part Number | Description |
|---|
| 2 |
61310385100 |
Rear wheel axle This part replaces 61310085100. Price: Call Us |
| 3 |
76010160000 |
BRAKE DISC 240MM Price: Call Us |
| 4 |
76042121000 |
Phonic wheel, rear Price: Call Us |
| 5 |
0025080256S |
HH COLLAR SCREW M8X25 TX40 Price: Call Us |
| 6 |
61310187000 |
Safety wire, right Price: Call Us |
| 7 |
61310186100 |
AXLE NUT M50X1.5 Price: Call Us |
| 8 |
61310016000 |
WASHER 69X1 Price: Call Us |
| 10 |
61310010044 |
CLUTCH HUB HOUSING CPL. Price: Call Us |
| 11 |
61310021000 |
HH collar screw M16X1.5X55 Price: Call Us |
| 12 |
0760526880 |
Radial shaft seal 52X68X8 Price: Call Us |
| 13 |
61310019000 |
WASHER 94X1 Price: Call Us |
| 14 |
0770840035 |
O-ring 84.00X3.5 NBR70 Price: Call Us |
| 15 |
0471078250 |
CIRCLIP DIN471-78X2.5 Price: Call Us |
| 16 |
0472068250 |
CIRCLIP DIN472-68X2.5 Price: Call Us |
| 17 |
0617456822 |
NEEDLE BEARING RNA4909-2RSR-XL Price: Call Us |
| 18 |
0625061909 |
Grooved ball bearing 61909-2RS Price: Call Us |
| 19 |
61310014100 |
Spacer ring This part replaces 61310014000. Price: Call Us |
| 20 |
6131005404433S |
SPROCKET SUPPORT CPL. Price: Call Us |
| 21 |
61310059100 |
Shock absorber This part replaces 61310059000. Price: Call Us |
| 22 |
61310151038 |
SPROCKET STEEL DUKE 1290 Z38 Price: Call Us |
| 23 |
54310086200 |
Self locking nut M8 10.9 Price: Call Us |
| 24 |
6131005000033S |
JAR DAMPER CARRIER Price: Call Us |
| 25 |
76010116000 |
SHIM 50X1 Price: Call Us |
| 26 |
06923100003 |
Hex. nut DIN6923 M10X1.25-10 Price: Call Us |
| 27 |
61310086000 |
AXLE NUT M35X1.5 Price: Call Us |
| 28 |
76010187000 |
Safety wire, left Price: Call Us |
| 29 |
76010052000 |
IGUS BEARING D=50 Price: Call Us |
| 30 |
61009076100 |
VALVE ANGLED Price: Call Us |
| 31 |
61313075000C1 |
Brake caliper support This part replaces 6131307500033S. Price: Call Us |
| 32 |
61310010011 |
Safety wire, inner Price: Call Us |
| 34 |
61310052100 |
Rear sprocket screw M8x18 S This part replaces 61310052000. Price: Call Us |
| 40 |
60033129017 |
Chain sprocket 17-t, damped 0 Price: Call Us |
| 41 |
61310265118 |
Chain DID 525 VZ2 118 rollers This part replaces 61310165118. Price: Call Us |
| 98 |
61409098000 |
DECAL KIT RIMS SUPERDUKE GT 16 Price: Call Us |
