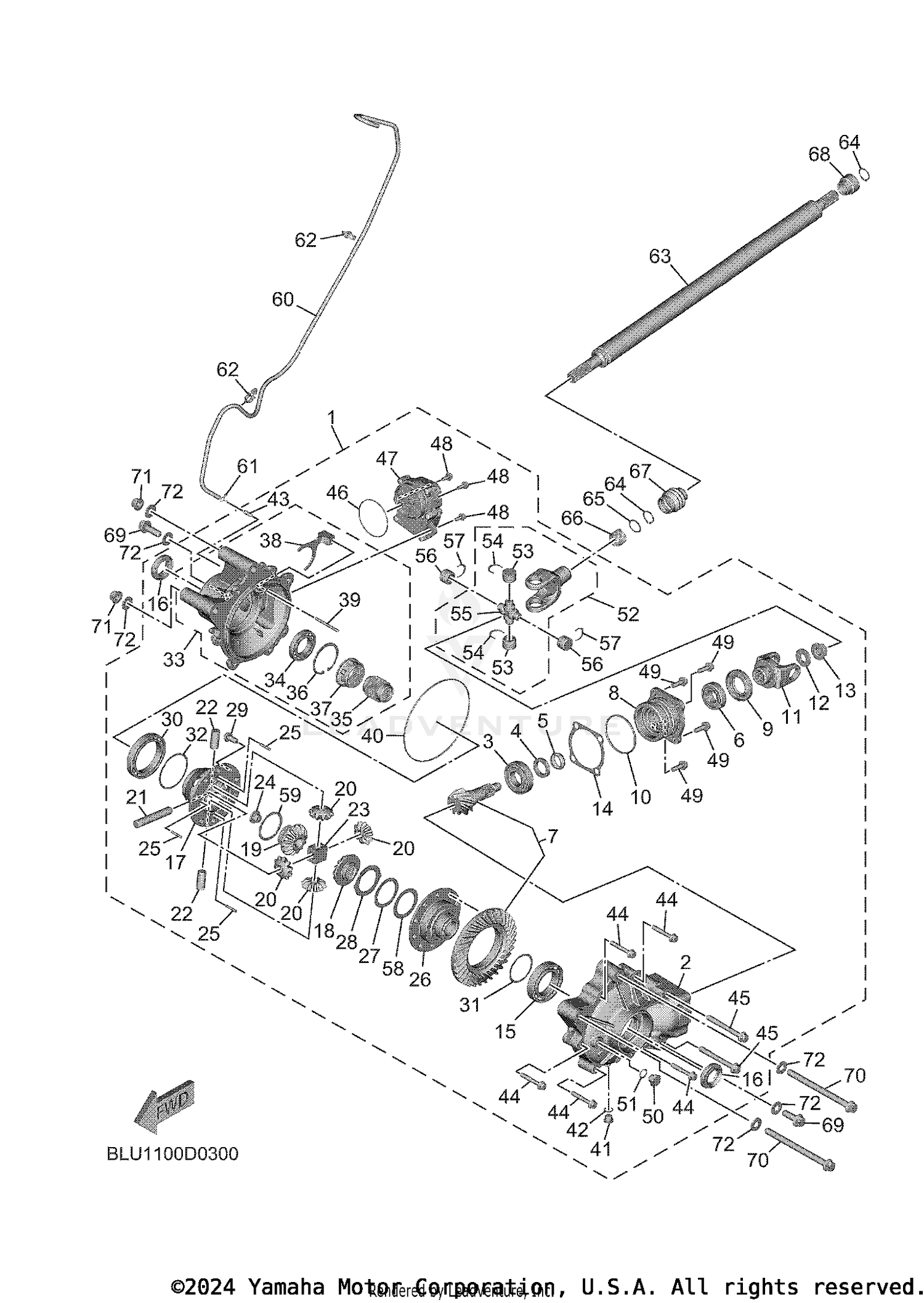

| Ref | Part Number | Description |
|---|
| 1 |
BKP-46160-00-00 |
FRONT AXLE GEAR CASE COMP. Price: $3,371.99 |
| 3 |
93332-00046-00 |
BEARING Price: $58.99 |
| 4 |
90201-25634-00 |
WASHER, PLATE Price: $12.49 |
| 5 |
3B4-46129-00-00 |
SPACER, EXPANSION Price: $8.49 |
| 6 |
93332-00053-00 |
BEARING Price: $69.99 |
| 8 |
B4M-46144-00-00 |
HOUSING, PINION BEAR Price: $146.99 |
| 9 |
93102-35380-00 |
OIL SEAL Price: $24.99 |
| 10 |
93210-626A7-00 |
O-RING Price: $16.49 |
| 11 |
BG4-46146-00-00 |
YOKE, JOINT 2 Price: $193.99 |
| 12 |
90201-165H4-00 |
WASHER, PLATE Price: $10.49 |
| 13 |
90179-16004-00 |
NUT Price: $17.49 |
| 15 |
93306-01006-00 |
BEARING Price: $60.99 |
| 16 |
93102-30017-00 |
OIL SEAL Price: $13.49 |
| 21 |
B4J-46417-00-00 |
PIN, DIFFERENTIAL Price: $41.99 |
| 25 |
91690-40025-00 |
PIN, SPRING (91609-40025-00) This part replaces 91609-40025-00. Price: $0.65 |
| 26 |
BG4-46411-00-00 |
CASE, DIFFERENTIAL Price: $115.99 |
| 27 |
BG4-42524-00-00 |
SPRING Price: $6.49 |
| 28 |
BG4-42525-00-00 |
PLATE, FRICTION Price: $17.49 |
| 29 |
90105-10471-00 |
BOLT, FLANGE This part replaces 90105-10468-00. Price: $3.80 |
| 30 |
93306-91301-00 |
BEARING Price: $129.99 |
| 34 |
93316-00702-00 |
BEARING Price: $72.99 |
| 36 |
99009-62500-00 |
CIRCLIP Price: $9.49 |
| 39 |
BG4-45692-00-00 |
SHAFT, SHIFT Price: $3.80 |
| 40 |
93211-63688-00 |
O-RING Price: $13.49 |
| 41 |
90340-12007-00 |
PLUG, STRAIGHT SCREW Price: $9.49 |
| 42 |
90430-12219-00 |
GASKET Price: $7.49 |
| 43 |
137-13115-01-00 |
CONNECTOR, SUCTION PIPE Price: $4.99 |
| 44 |
95817-08050-00 |
BOLT, FLANGE This part replaces 95812-08050-00. Price: $3.70 |
| 45 |
95812-10100-00 |
BOLT, FLANGE Price: $6.49 |
| 46 |
93210-71462-00 |
O-RING This part replaces 93210-72300-00. Price: $18.49 |
| 47 |
BG4-4616A-00-00 |
SERVO MOTOR COMP Price: $458.99 |
| 48 |
95817-06016-00 |
BOLT, FLANGE This part replaces 95812-06016-00. Price: $1.95 |
| 49 |
95817-08025-00 |
BOLT, FLANGE This part replaces 95812-08025-00. Price: $9.49 |
| 50 |
90340-14029-00 |
PLUG, STRAIGHT SCREW Price: $4.60 |
| 51 |
214-11198-01-00 |
GASKET Price: $3.17 |
| 52 |
BG4-46108-00-00 |
CROSS JOINT COMP. 3 Price: $239.99 |
| 53 |
93399-99965-00 |
BEARING Price: $28.99 |
| 54 |
93440-23197-00 |
CIRCLIP Price: $3.95 |
| 55 |
1YW-46187-10-00 |
SPIDER Price: $83.99 |
| 56 |
93399-99965-00 |
BEARING Price: $28.99 |
| 57 |
93440-23197-00 |
CIRCLIP Price: $3.95 |
| 58 |
90201-46014-00 |
WASHER, PLATE Price: $5.49 |
| 60 |
90445-080K8-00 |
HOSE (L1200) Price: $8.99 |
| 61 |
90467-08021-00 |
CLIP This part replaces 90467-08075-00. Price: $9.49 |
| 62 |
90464-12830-00 |
CLAMP This part replaces 90464-10833-00. Price: $1.60 |
| 63 |
B4J-G6109-00-00 |
DRIVE SHAFT COMP. Price: $97.99 |
| 64 |
99009-22400-00 |
CIRCLIP Price: $9.49 |
| 65 |
90201-22793-00 |
WASHER, PLATE Price: $8.49 |
| 66 |
90501-234F8-00 |
SPRING, COMPRESSION Price: $11.49 |
| 67 |
BG4-46136-00-00 |
SEAL 1 Price: $9.49 |
| 68 |
BG4-42615-00-00 |
SEAL Price: $5.49 |
| 69 |
95812-12035-00 |
BOLT, FLANGE This part replaces 90105-12123-00. Price: $6.49 |
| 70 |
90105-12091-00 |
BOLT, FLANGE Price: $33.99 |
| 71 |
90185-12002-00 |
NUT, SELF-LOCKING Price: $13.49 |
