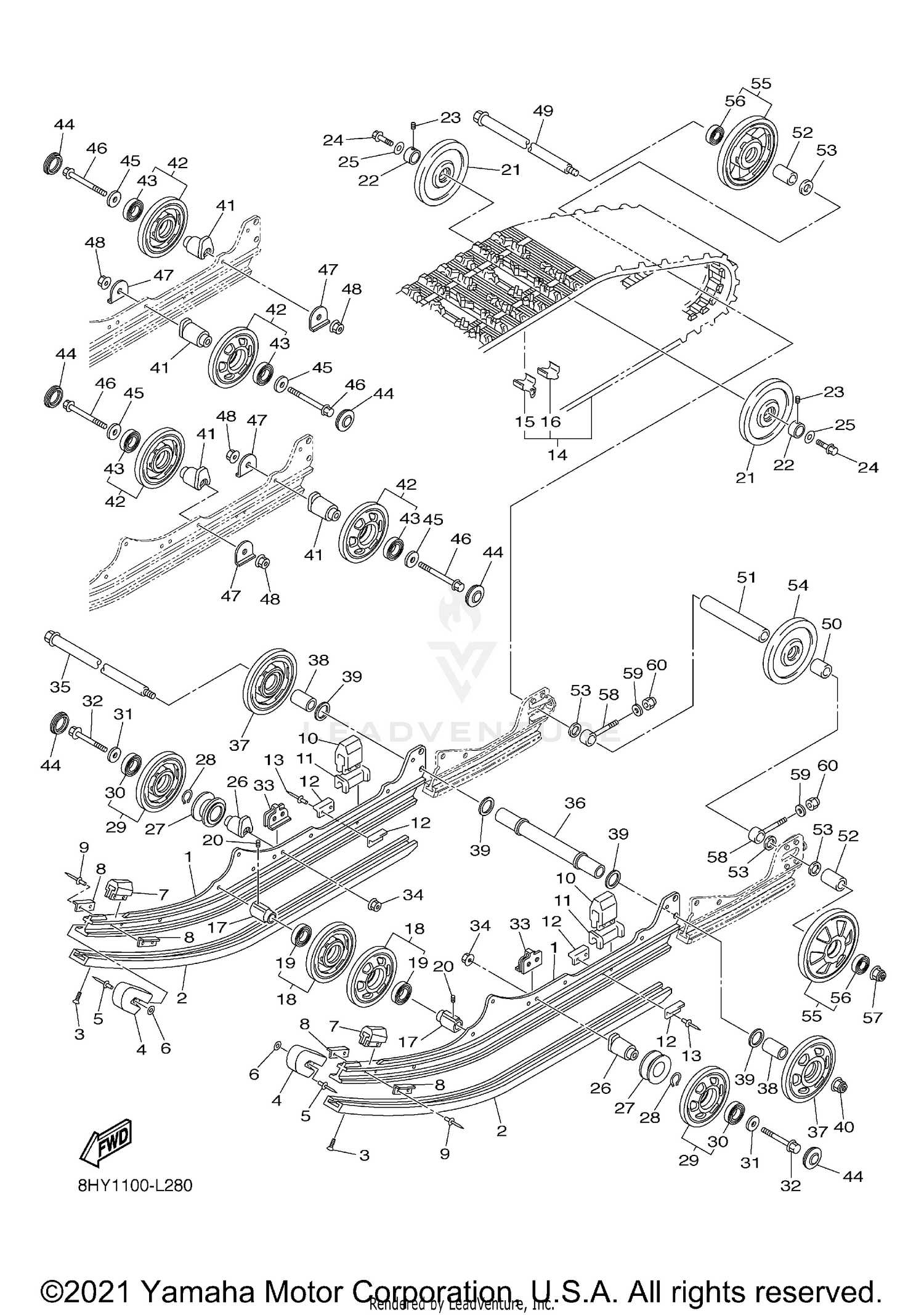

| Ref | Part Number | Description |
|---|
| 1 |
8FM-4741A-01-00 |
FRAME, SLIDING Price: $681.99 |
| 2 |
8FM-47421-00-XX |
RUNNER,SLIDING 1 This part replaces 8FM-47421-10-00. Price: $27.99 |
| 3 |
90151-06005-00 |
SCREW, COUNTERSUNK This part replaces 90151-06010-00. Price: $10.49 |
| 4 |
8ED-47422-00-00 |
RUNNER, SLIDING 2 Price: $50.99 |
| 5 |
90267-48194-00 |
RIVET, BLIND (4.8X28 SILVER) Price: $3.55 |
| 6 |
90201-047R8-00 |
WASHER, PLATE Price: $3.25 |
| 7 |
8ES-47456-00-00 |
DAMPER 1 Price: $7.49 |
| 8 |
8K2-47458-01-00 |
PLATE, DAMPER Price: $4.45 |
| 9 |
90267-48199-00 |
RIVET, BLIND (4.8X28.3) Price: $4.05 |
| 10 |
8CM-47457-00-00 |
DAMPER 2 Price: $10.49 |
| 11 |
8CM-47341-00-00 |
SPACER Price: $8.49 |
| 12 |
8AX-47458-00-00 |
PLATE, DAMPER Price: $11.99 |
| 13 |
90267-48199-00 |
RIVET, BLIND (4.8X28.3) Price: $4.05 |
| 14 |
8FM-47110-20-00 |
TRACK ASSY Price: $1,959.99 |
| 15 |
8HR-47115-09-00 |
METAL, SLIDE Price: $18.49 |
| 16 |
8HR-47113-09-00 |
PLATE, REINFORCEMENT Price: $19.49 |
| 17 |
8ES-47319-01-00 |
COLLAR Price: $35.99 |
| 18 |
SMA-8FP38-01-BK |
WHEEL BLK 130MM This part replaces 8HF-47310-10-00. Price: $41.99 |
| 19 |
93306-00507-00 |
BEARING (B6005) Price: $46.99 |
| 20 |
90113-06039-00 |
BOLT, SET Price: $10.49 |
| 21 |
8CR-47550-00-00 |
GUIDE WHEEL ASSY Price: $28.99 |
| 22 |
8ES-47365-00-00 |
COLLAR 1 Price: $21.99 |
| 23 |
90113-06039-00 |
BOLT, SET Price: $10.49 |
| 24 |
90109-10032-00 |
BOLT This part replaces 90109-10030-00. Price: $9.49 |
| 25 |
90201-10039-00 |
WASHER, PLATE Price: $8.49 |
| 26 |
8ES-47419-10-00 |
BRACKET 7 Price: $28.99 |
| 27 |
8ET-47446-00-00 |
HOOK 1 Price: $19.99 |
| 28 |
93410-35M10-00 |
CIRCLIP (6U2) This part replaces 99009-35400-00. Price: $8.49 |
| 29 |
SMA-8FP38-01-BK |
WHEEL BLK 130MM This part replaces 8HF-47310-10-00. Price: $41.99 |
| 30 |
93306-00507-00 |
BEARING (B6005) Price: $46.99 |
| 31 |
90201-10038-00 |
WASHER, PLATE Price: $6.49 |
| 32 |
95812-10080-00 |
BOLT, FLANGE Price: $10.49 |
| 33 |
8HP-47384-00-00 |
WASHER Price: $17.99 |
| 34 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 35 |
8L8-47520-10-00 |
REAR AXLE COMP. Price: $84.99 |
| 36 |
8FM-47469-00-00 |
COLLAR 1 Price: $30.99 |
| 37 |
8HP-47310-10-00 |
SUSPENSION WHEEL ASSY Price: $142.99 |
| 38 |
90387-20019-00 |
COLLAR Price: $31.99 |
| 39 |
90201-20022-00 |
WASHER, PLATE Price: $9.49 |
| 40 |
95602-14200-00 |
NUT, SELF-LOCKING Price: $12.49 |
| 41 |
8ES-47419-00-00 |
BRACKET 7 Price: $30.99 |
| 42 |
SMA-8FP38-01-BK |
WHEEL BLK 130MM This part replaces 8HF-47310-10-00. Price: $41.99 |
| 43 |
93306-00507-00 |
BEARING (B6005) Price: $46.99 |
| 44 |
8HF-47317-00-00 |
CAP, WHEEL Price: $17.49 |
| 45 |
90201-10038-00 |
WASHER, PLATE Price: $6.49 |
| 46 |
95812-10080-00 |
BOLT, FLANGE Price: $10.49 |
| 47 |
90214-10003-00 |
WASHER, CLAW Price: $23.99 |
| 48 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 49 |
8L8-47520-10-00 |
REAR AXLE COMP. Price: $84.99 |
| 50 |
90387-20015-00 |
COLLAR Price: $31.99 |
| 51 |
90387-20016-00 |
COLLAR Price: $25.99 |
| 52 |
90387-20019-00 |
COLLAR Price: $31.99 |
| 53 |
90201-20022-00 |
WASHER, PLATE Price: $9.49 |
| 54 |
8CR-47550-10-00 |
GUIDE WHEEL ASSY Price: $27.99 |
| 55 |
SMA-8FP38-02-BK |
REAR WHEEL BLK 178MM This part replaces 8HF-47550-10-00. Price: $37.99 |
| 56 |
93306-00444-00 |
BEARING Price: $45.99 |
| 57 |
95602-14200-00 |
NUT, SELF-LOCKING Price: $12.49 |
| 58 |
8DM-47479-00-00 |
COLLAR 3 Price: $18.99 |
| 59 |
92990-10600-00 |
WASHER, PLATE This part replaces 92902-10600-00. Price: $3.00 |
