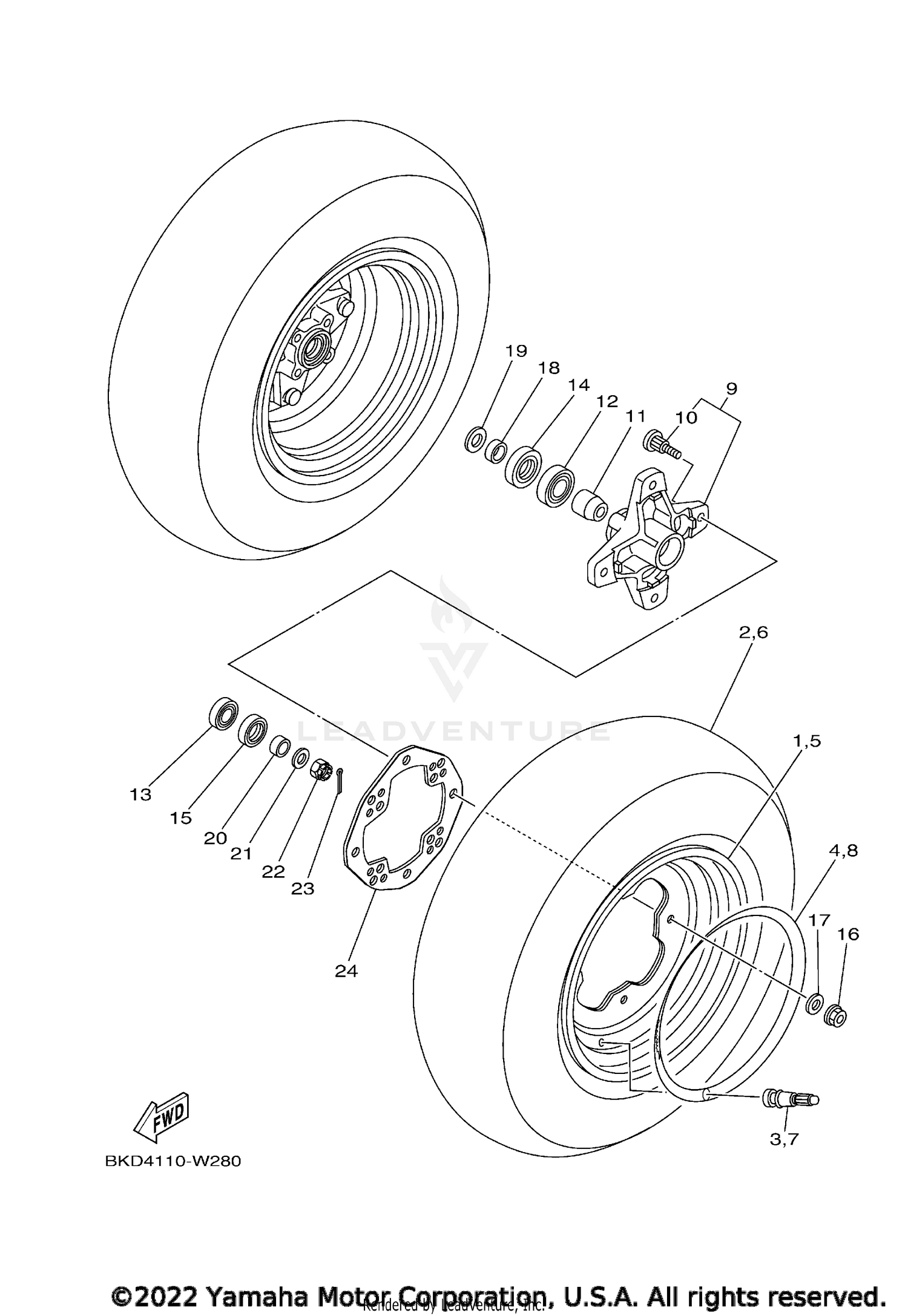

FRONT WHEEL
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1TD-F5180-11-00 | WHEEL COMP. Price: $183.99 |
| 4 | BFK-F51G1-00-00 | GRAPHIC 1 Price: $228.99 |
| 5 | 1TD-F5180-11-00 | WHEEL COMP. Price: $183.99 |
| 8 | BFK-F51G1-00-00 | GRAPHIC 1 Price: $228.99 |
| 9 | 1PE-F510D-00-00 | HUB ASSY 2 Price: $80.99 |
| 10 | 90114-10006-00 | BOLT, SERRATION Price: $6.49 |
| 11 | 5LP-25117-00-00 | SPACER, BEARING Price: $18.99 |
| 12 | 93306-00446-00 | BEARING Price: $47.99 |
| 13 | 93306-20231-00 | BEARING Price: $24.85 |
| 14 | 93105-26026-00 | OIL SEAL Price: $13.49 |
| 15 | 93102-22216-00 | OIL SEAL Price: $12.49 |
| 16 | 95704-10500-00 | NUT, WITH WASHER This part replaces 95702-10500-00. Price: $2.20 |
| 17 | 92990-10200-00 | WASHER, PLAIN This part replaces 92902-10200-00. Price: $3.72 |
| 18 | 90387-20005-00 | COLLAR Price: $28.99 |
| 19 | 90201-20022-00 | WASHER, PLATE Price: $9.49 |
| 20 | 90387-150R1-00 | COLLAR Price: $8.49 |
| 21 | 90201-14220-00 | WASHER, PLATE This part replaces 90201-14586-00. Price: $9.49 |
| 22 | 90171-14002-00 | NUT, CASTLE Price: $10.49 |
| 23 | 91401-30025-00 | PIN, COTTER This part replaces 91402-30025-00. Price: $9.49 |
