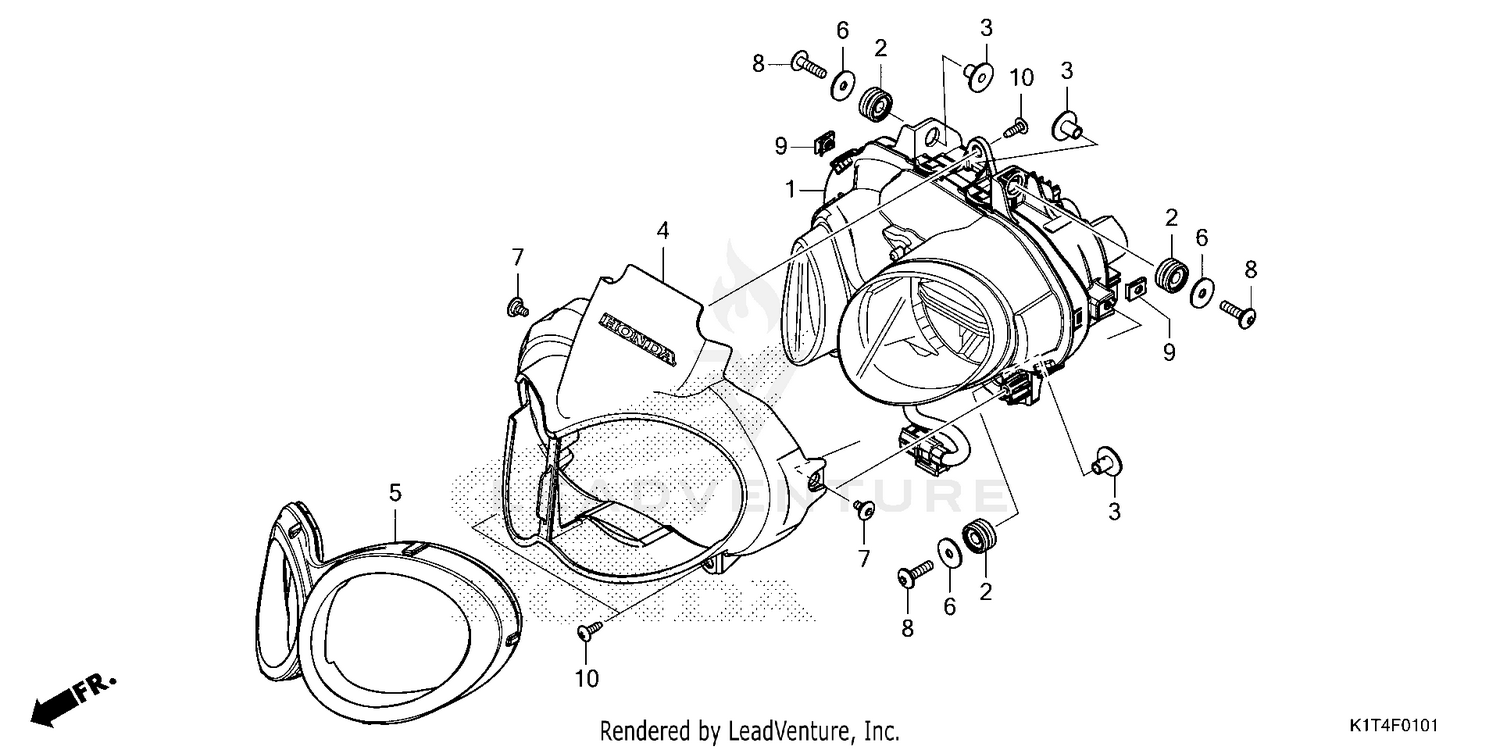

HEADLIGHT (2)
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 33100-KZZ-J01 | HEADLIGHT ASSY. Price: $853.95 |
| 2 | 61103-MKN-D50 | RUBBER, HEADLIGHT Price: $2.93 |
| 3 | 61104-KZZ-900 | COLLAR Price: $2.11 |
| 4 | 61140-KZZ-J00ZA | COVER SET, HEADLIGHT (TYPE1) (WL) Price: $56.38 |
| 5 | 61146-KZZ-J00 | RING, HEADLIGHT Price: $40.22 |
| 6 | 77302-KW7-900 | WASHER, HEADLIGHT BRACKET MOUNTING Price: $1.00 |
| 7 | 90114-KPH-700 | SCREW, SPECIAL (5X11) Price: $1.13 |
| 8 | 90185-KZZ-J00 | BOLT, SPECIAL (6X24) Price: $1.05 |
| 9 | 90677-KAN-961 | NUT, CLIP (5MM) Price: $5.11 |
