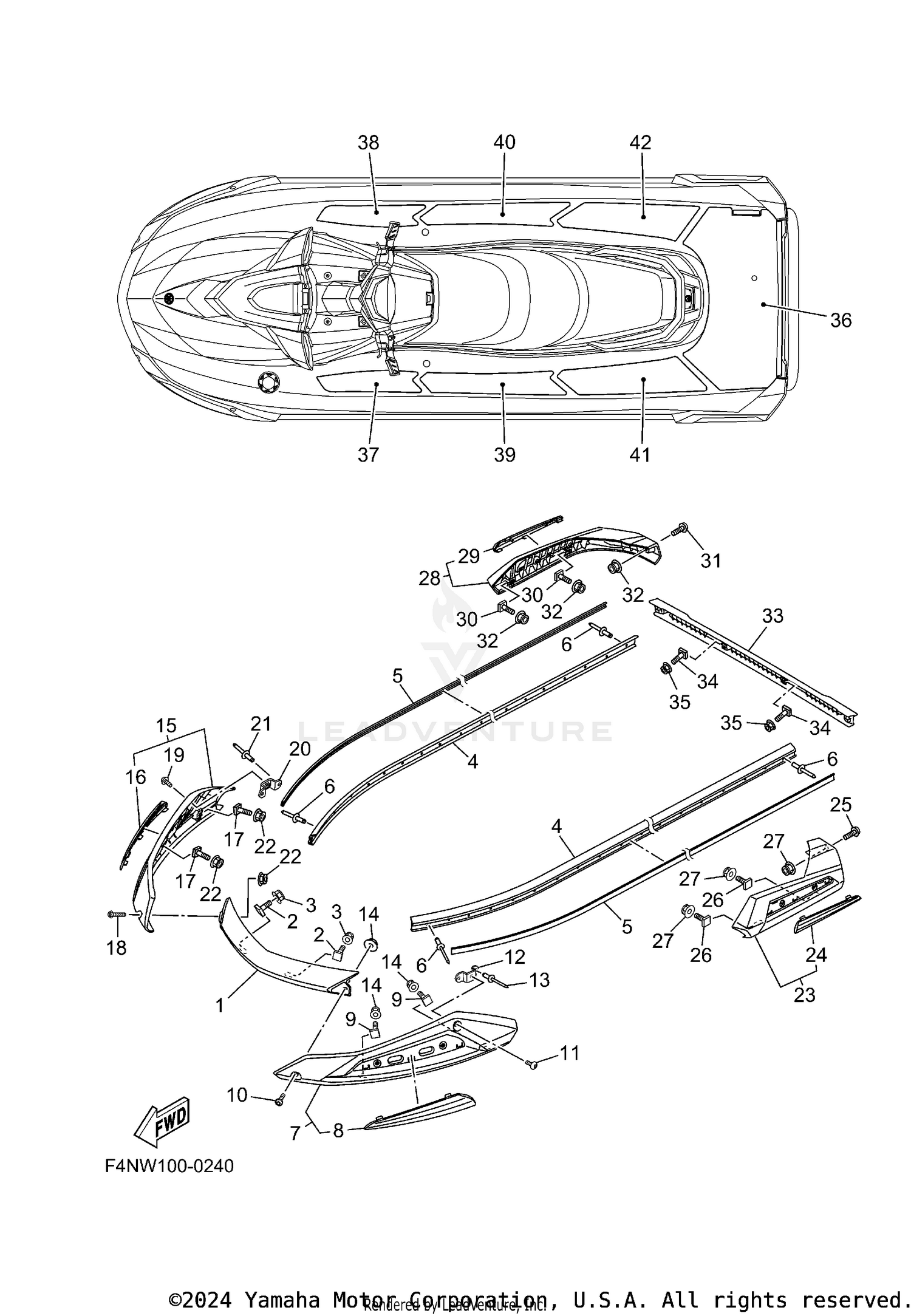

| Ref | Part Number | Description |
|---|
| 2 |
F7K-U491K-00-00 |
BOLT, SPECIAL This part replaces F1W-U491K-01-00. Price: $6.99 |
| 3 |
F2N-U142L-00-00 |
NUT, LOCK Price: $5.99 |
| 6 |
F7K-U1454-00-00 |
RIVET Price: $7.99 |
| 9 |
F7K-U491K-00-00 |
BOLT, SPECIAL This part replaces F1W-U491K-01-00. Price: $6.99 |
| 10 |
F3X-U7823-12-00 |
SCREW Price: $5.99 |
| 11 |
90111-06874-00 |
BOLT,HEX. SOCKET B Price: $5.99 |
| 12 |
F3X-U4949-00-00 |
BRACKET Price: $6.99 |
| 13 |
90267-489U6-00 |
RIVET, BLIND Price: $6.99 |
| 14 |
F2N-U142L-00-00 |
NUT, LOCK Price: $5.99 |
| 17 |
F7K-U491K-00-00 |
BOLT, SPECIAL This part replaces F1W-U491K-01-00. Price: $6.99 |
| 18 |
F3X-U7823-12-00 |
SCREW Price: $5.99 |
| 19 |
90111-06874-00 |
BOLT,HEX. SOCKET B Price: $5.99 |
| 20 |
F3X-U4949-00-00 |
BRACKET Price: $6.99 |
| 21 |
90267-489U6-00 |
RIVET, BLIND Price: $6.99 |
| 22 |
F2N-U142L-00-00 |
NUT, LOCK Price: $5.99 |
| 25 |
F4P-U7823-00-00 |
SCREW Price: $5.99 |
| 26 |
F7K-U491K-00-00 |
BOLT, SPECIAL This part replaces F1W-U491K-01-00. Price: $6.99 |
| 27 |
F2N-U142L-00-00 |
NUT, LOCK Price: $5.99 |
| 30 |
F7K-U491K-00-00 |
BOLT, SPECIAL This part replaces F1W-U491K-01-00. Price: $6.99 |
| 31 |
F4P-U7823-00-00 |
SCREW Price: $5.99 |
| 32 |
F2N-U142L-00-00 |
NUT, LOCK Price: $5.99 |
| 34 |
F7K-U491K-00-00 |
BOLT, SPECIAL This part replaces F1W-U491K-01-00. Price: $6.99 |
| 35 |
F2N-U142L-00-00 |
NUT, LOCK Price: $5.99 |
