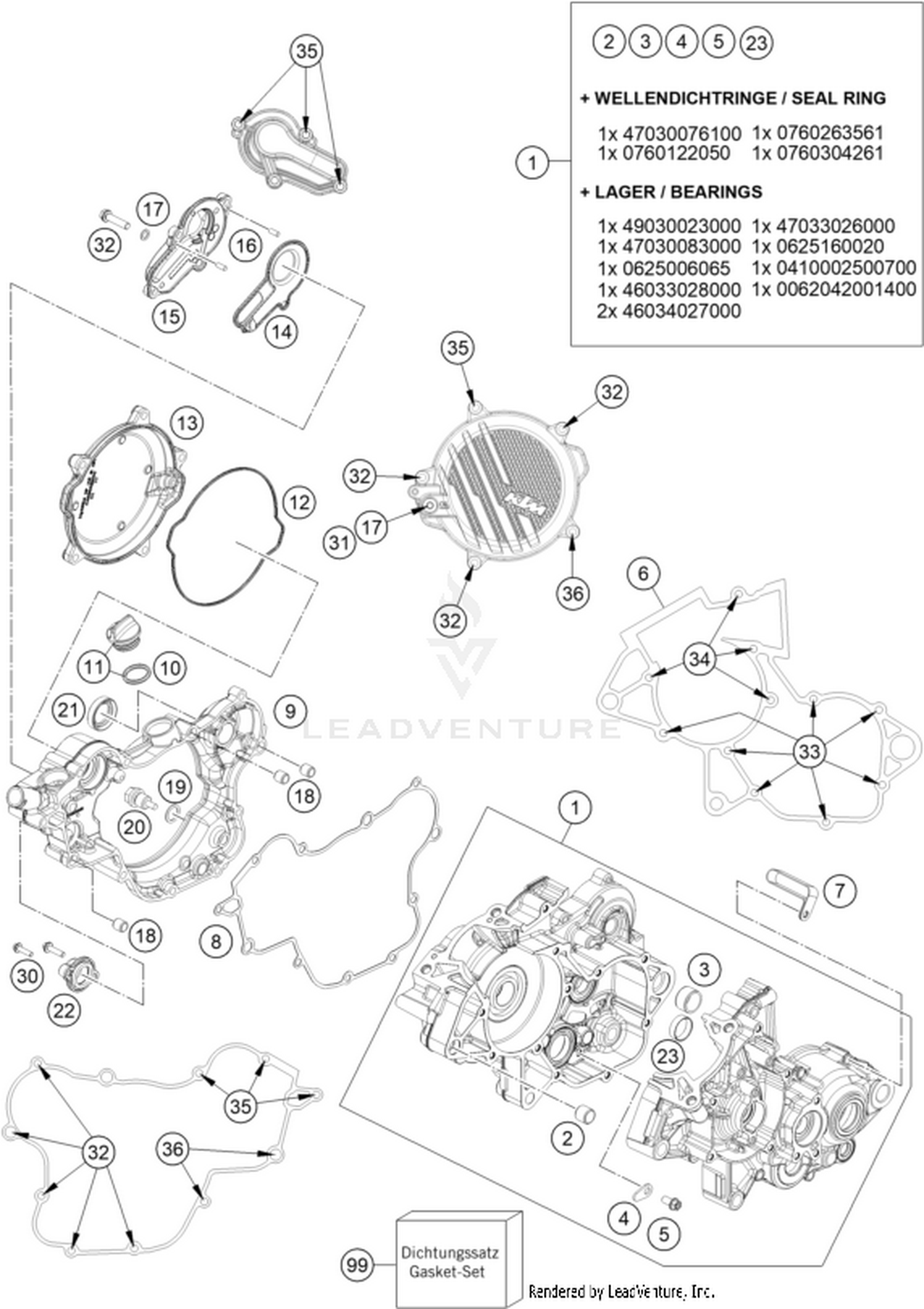

| Ref | Part Number | Description |
|---|
| 1 |
47230000144 |
Engine case cpl. Price: Call Us |
| 2 |
54630027000 |
DOWEL BUSHING 13,8X11X12 Price: Call Us |
| 3 |
54830027100 |
Dowel, 21x12 Price: Call Us |
| 4 |
54634049000 |
RETAINING PLATE Price: Call Us |
| 5 |
0025060126S |
Hex collar screw M6x12 ISA30 s Price: Call Us |
| 6 |
47230039000 |
Crankcase cover gasket Price: Call Us |
| 7 |
55430090000 |
Bracket for bleeding tube Price: Call Us |
| 8 |
47230025000 |
Gasket inner clutch cover Price: Call Us |
| 10 |
0770191015 |
O-RING 19,00X3,00 NBR Price: Call Us |
| 11 |
79430020033 |
Oil filler cap cmpl. M24x3 Price: Call Us |
| 12 |
47230027000 |
Clutchcover gasket Price: Call Us |
| 13 |
A41030026000C1 |
Outer clutch cover Price: Call Us |
| 14 |
47235053100 |
Seal with support plate This part replaces 47235053000. Price: Call Us |
| 15 |
47235052000 |
Waterpump cover Price: Call Us |
| 16 |
0402040980 |
Needle roll.DIN5402 NRB 4X9.8 Price: Call Us |
| 17 |
0603061001 |
CU-SEAL RING DIN7603-6X10X1 Price: Call Us |
| 18 |
49030090100 |
DOWEL 9,8 X7X10 Price: Call Us |
| 19 |
58038022000 |
CU-seal ring DIN7603-12X18X1.5 Price: Call Us |
| 21 |
0760193070 |
SHAFT SEAL RING 19X30X7 B Price: Call Us |
| 22 |
55537035000 |
Closing cover This part replaces 54637070100. Price: Call Us |
| 23 |
50433024050 |
BUSHING IDLER GEAR Price: Call Us |
| 30 |
0014050203 |
HH COLLAR SCREW M 5X20 WS=6 Price: Call Us |
| 31 |
0025060106 |
HH collar screw M6x10 TX30 Price: Call Us |
| 32 |
0025060256 |
HH collar screw M6x25 TX30 Price: Call Us |
| 33 |
0025060456 |
HH COLLAR SCREW M6X45 TX30 Price: Call Us |
| 34 |
0025060506 |
HH collar screw M6x50 TX30 Price: Call Us |
| 35 |
0025060606 |
HH collar screw M6x60 TX30 Price: Call Us |
| 36 |
0025060556 |
HH collar screw M6x55 TX30 Price: Call Us |
