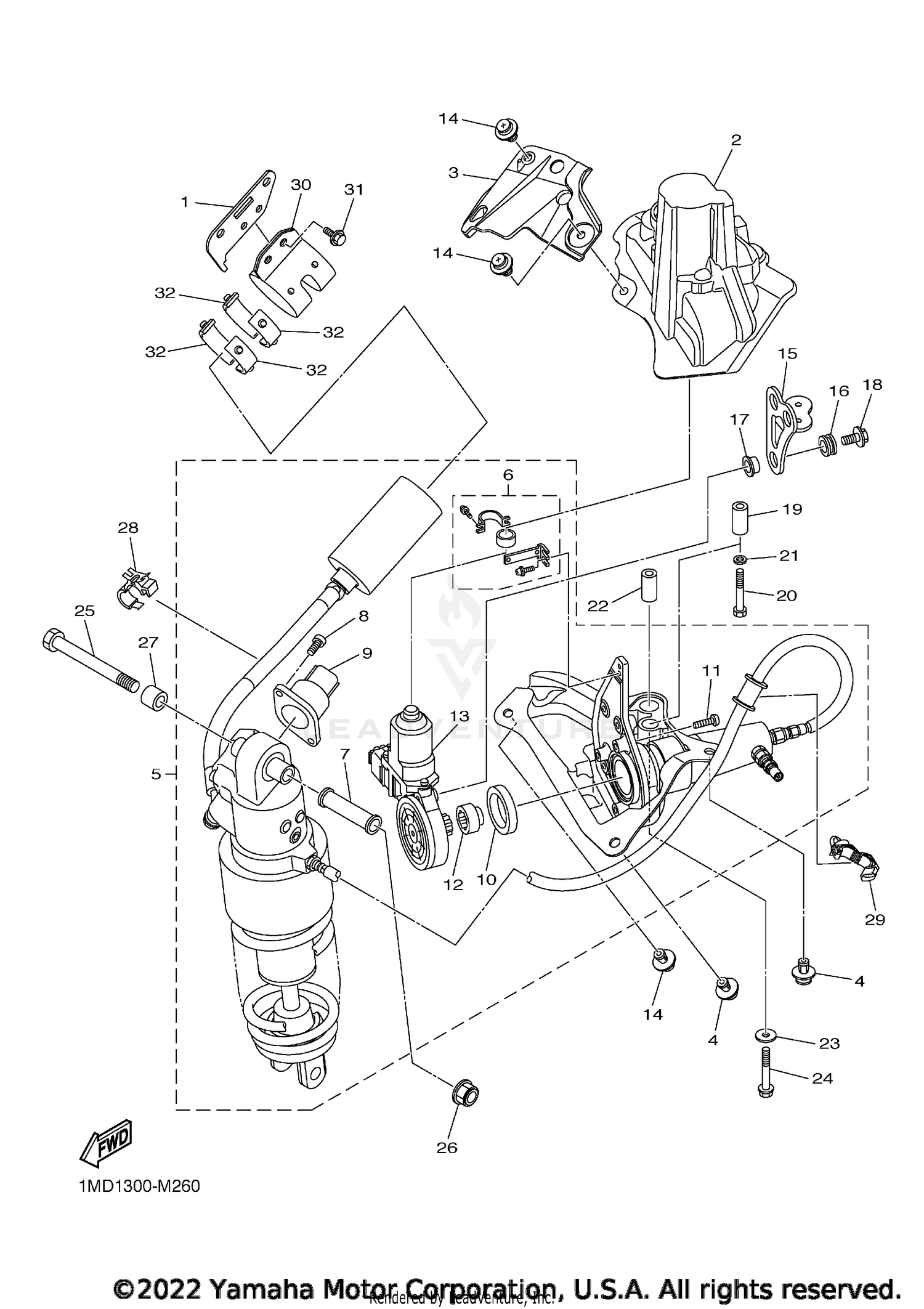

| Ref | Part Number | Description |
|---|
| 1 |
1MD-27333-01-00 |
BRACKET Price: $31.99 |
| 2 |
1MD-2117F-00-00 |
COVER Price: $115.99 |
| 3 |
1MD-2117N-00-00 |
COVER 3 Price: $45.99 |
| 4 |
90269-07076-00 |
RIVET Price: $8.49 |
| 5 |
1MD-22210-12-00 |
SHOCK ABSORBER ASSY, REAR This part replaces 1MD-22210-11-00. Price: $4,285.99 |
| 6 |
1MD-2221A-00-00 |
BOLT STAY SET Price: $95.99 |
| 7 |
1MD-22216-00-00 |
BUSH, REAR SHOCK ABSORBER Price: $79.99 |
| 8 |
1MD-22242-00-00 |
BOLT 2 Price: $1.55 |
| 9 |
1MD-85801-00-00 |
STEPPER MOTOR Price: $445.99 |
| 10 |
1MD-22215-00-00 |
RING, COVER Price: $22.99 |
| 11 |
1MD-22241-00-00 |
BOLT 1 Price: $9.49 |
| 12 |
1MD-2222A-00-00 |
COLLAR Price: $79.99 |
| 13 |
1MD-86231-00-00 |
MOTOR COMP. Price: $304.99 |
| 14 |
90269-07076-00 |
RIVET Price: $8.49 |
| 15 |
1MD-27332-01-00 |
BRACKET Price: $49.99 |
| 16 |
90480-14003-00 |
GROMMET Price: $9.49 |
| 17 |
90387-06125-00 |
COLLAR Price: $6.99 |
| 18 |
90119-06147-00 |
BOLT, WITH WASHER Price: $1.20 |
| 19 |
90387-105G5-00 |
COLLAR This part replaces 90387-063W4-00. Price: $11.49 |
| 20 |
97017-06045-00 |
BOLT This part replaces 97027-06045-00. Price: $4.05 |
| 21 |
92907-06600-00 |
WASHER, PLATE Price: $1.00 |
| 22 |
90387-105G5-00 |
COLLAR This part replaces 90387-063W4-00. Price: $11.49 |
| 23 |
90201-06085-00 |
WASHER, PLATE Price: $3.25 |
| 24 |
95817-06045-00 |
BOLT, FLANGE This part replaces 95822-06045-00. Price: $9.49 |
| 25 |
90101-12044-00 |
BOLT Price: $13.99 |
| 26 |
95602-12200-00 |
NUT, SELF-LOCKING Price: $5.49 |
| 27 |
90387-12028-00 |
COLLAR Price: $8.49 |
| 28 |
90464-15192-00 |
CLAMP Price: $9.49 |
| 29 |
90464-14012-00 |
CLAMP Price: $2.85 |
| 30 |
1MD-22262-01-00 |
HOLDER, SUB TANK Price: $49.99 |
| 31 |
95817-06014-00 |
BOLT, FLANGE This part replaces 95827-06014-00. Price: $2.80 |
