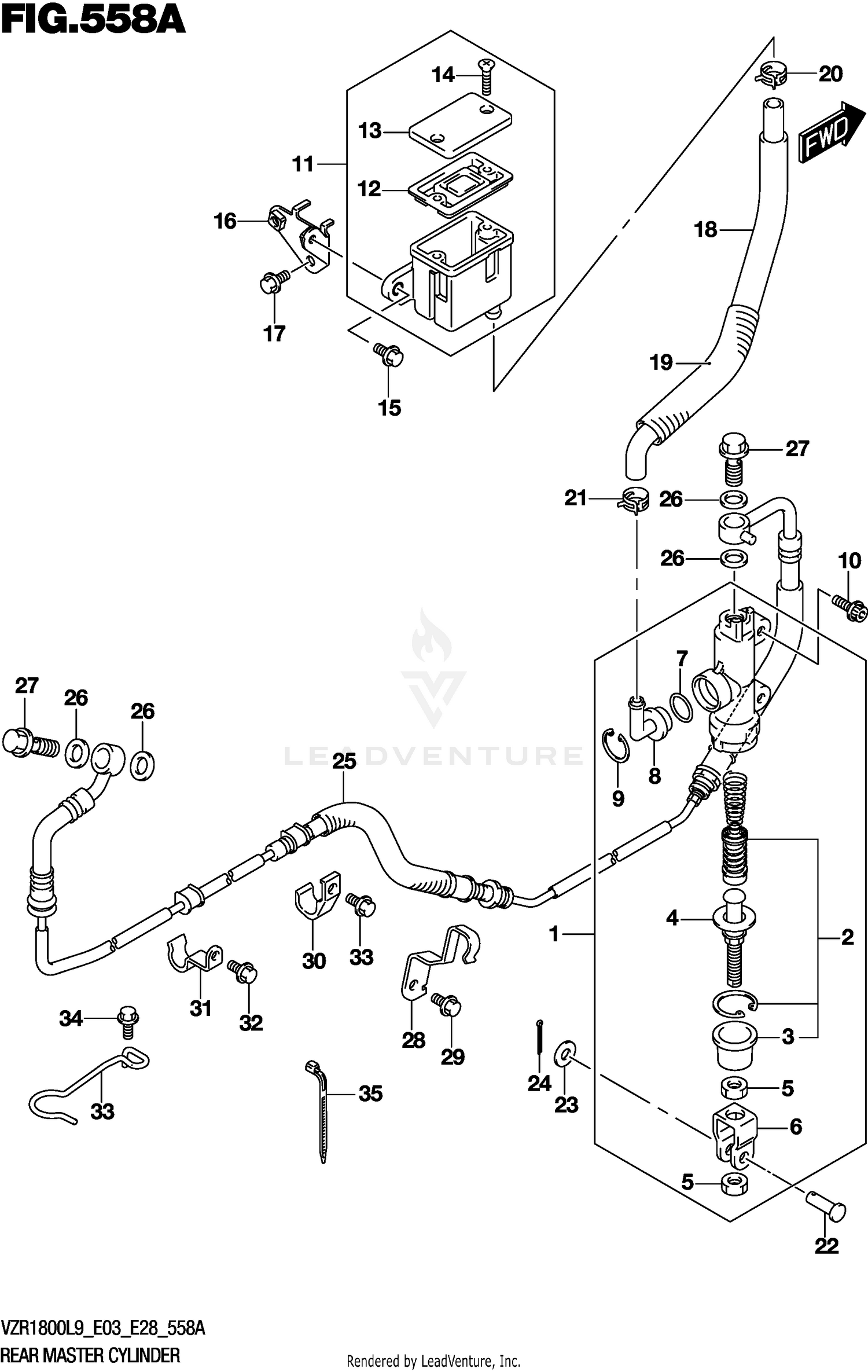

| Ref | Part Number | Description |
|---|
| 1 |
69600-48G00 |
CYLINDER ASSY,REAR MASTER Price: $334.89 |
| 10 |
07120-0625A |
BOLT Price: $3.02 |
| 11 |
69740-48G00 |
TANK ASSY,REAR RESERVOIR Price: $86.43 |
| 15 |
01547-0612A |
BOLT Price: $2.45 |
| 16 |
69750-48G00 |
BRACKET,RR RESERVOIR TANK Price: $17.83 |
| 17 |
01550-0612A |
BOLT Price: $2.37 |
| 18 |
69730-48G00 |
HOSE,RR RESERVOIR TANK Price: $34.43 |
| 19 |
69732-48G01 |
HEATSHIELD,RR RSVR TANK HOSE This part replaces 69732-48G00. Price: $18.38 |
| 20 |
09401-13417 |
CLIP (ID:13.2) Price: $2.72 |
| 21 |
09401-12404 |
CLIP (ID:12) Price: $2.85 |
| 22 |
09200-06068 |
PIN (6X18.2) Price: $5.01 |
| 23 |
08322-0106A |
WASHER Price: $2.22 |
| 24 |
04111-2015A |
PIN Price: $1.48 |
| 25 |
69400-48G21 |
HOSE ASSY,REAR BRAKE This part replaces 69400-48G20. Price: $164.78 |
| 26 |
09161-10009 |
WASHER (10X15X1.5) Price: $2.22 |
| 27 |
09360-10062 |
UNION (10X1.25X22) Price: $7.84 |
| 28 |
69268-48G00 |
CLAMP,RR BRAKE HOSE NO.3 Price: $8.50 |
| 29 |
01550-0612A |
BOLT Price: $2.37 |
| 30 |
69268-29G01 |
CLAMP,RR BRAKE HOSE Price: $19.12 |
| 31 |
69269-48G00 |
CLAMP,RR BRAKE PIPE Price: $13.66 |
| 32 |
01547-0612A |
BOLT Price: $2.45 |
| 33 |
69243-48G00 |
GUIDE,RR BRAKE HOSE Price: $12.00 |
| 34 |
01550-0612A |
BOLT Price: $2.37 |
