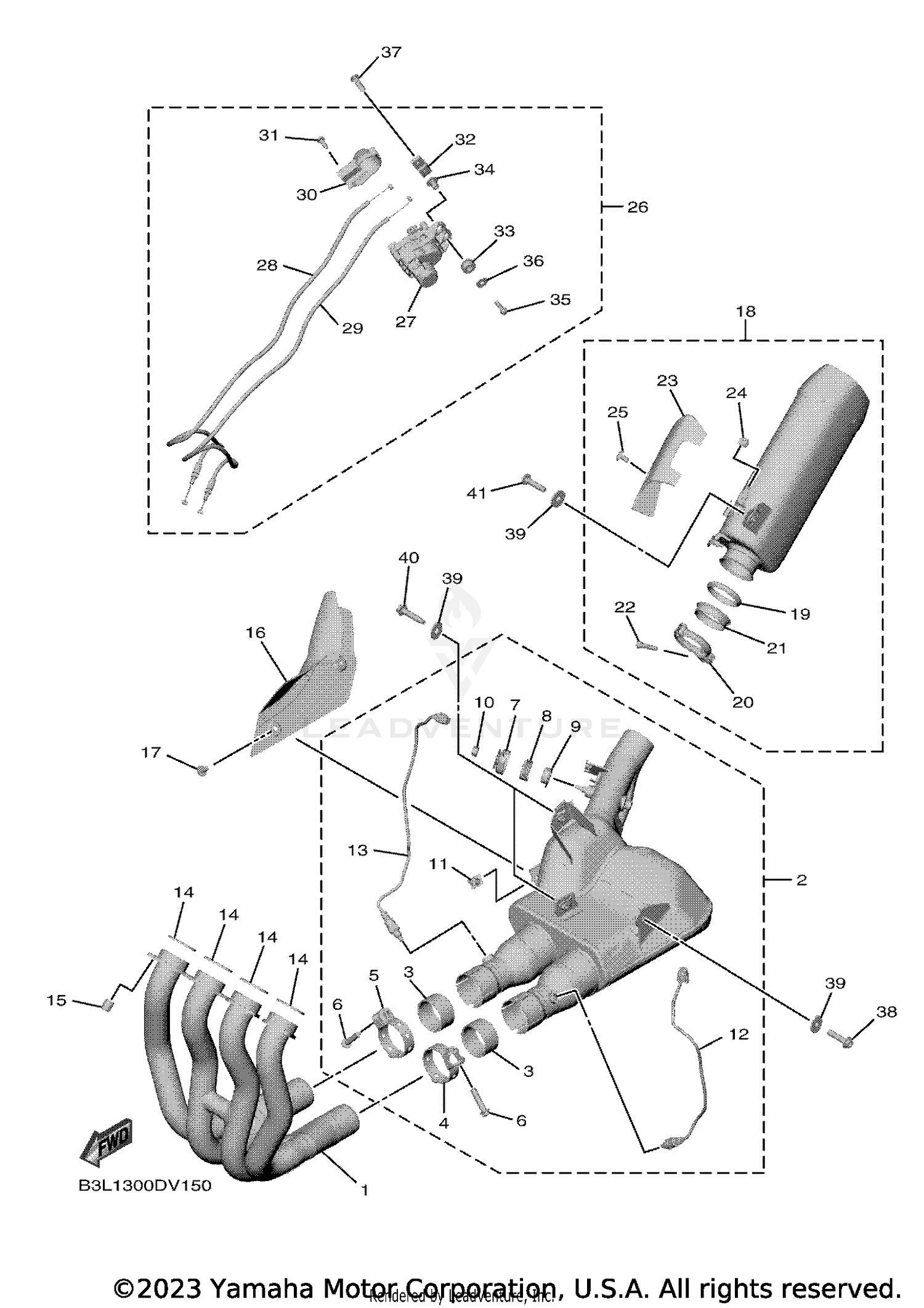

| Ref | Part Number | Description |
|---|
| 1 |
B60-14602-00-00 |
EXHAUST PIPE COMP. Price: $971.99 |
| 2 |
B3L-14730-12-00 |
CHAMBER ASSY Price: $2,148.99 |
| 3 |
5YU-14714-10-00 |
GASKET, MUFFLER Price: $48.99 |
| 4 |
39P-14715-00-00 |
BAND, MUFFLER Price: $39.99 |
| 5 |
2CR-14715-00-00 |
BAND, MUFFLER Price: $36.99 |
| 6 |
95024-08035-00 |
BOLT, FLANGE (SMALL HEAD) Price: $9.49 |
| 7 |
2C0-14865-00-00 |
PULLEY Price: $28.99 |
| 8 |
2C0-14856-00-00 |
SPRING Price: $4.75 |
| 9 |
2D1-14843-00-00 |
SEAT, SPRING Price: $6.99 |
| 10 |
90179-06063-00 |
NUT Price: $4.15 |
| 11 |
90183-060A2-00 |
NUT, SPRING Price: $10.49 |
| 12 |
1WS-8592A-10-00 |
SENSOR, OXYGEN Price: $242.99 |
| 13 |
2CR-8592A-20-00 |
SENSOR, OXYGEN This part replaces 2CR-8592A-10-00. Price: $246.99 |
| 14 |
2CR-14613-00-00 |
GASKET, EXHAUST PIPE Price: $11.99 |
| 15 |
90179-08442-00 |
NUT Price: $9.49 |
| 16 |
2CR-14708-00-00 |
PROTECTOR ASSY Price: $312.99 |
| 17 |
90111-06153-00 |
BOLT, HEX. SOCKET BUTTON Price: $2.70 |
| 18 |
2CR-14750-00-00 |
SILENCER ASSY Price: $1,245.99 |
| 19 |
2CR-14623-00-00 |
GASKET, EXHAUST PIPE Price: $17.99 |
| 20 |
2CR-14725-00-00 |
BAND, MUFFLER Price: $51.99 |
| 21 |
2CR-14618-00-00 |
RING, STOPPER Price: $18.99 |
| 22 |
90110-06343-00 |
BOLT, HEXAGON SOCKET HEAD Price: $4.10 |
| 23 |
2CR-14718-00-00 |
PROTECTOR, MUFFLER 1 Price: $191.99 |
| 24 |
5S7-14737-00-00 |
DAMPER, MUFFLER Price: $5.49 |
| 25 |
90111-06153-00 |
BOLT, HEX. SOCKET BUTTON Price: $2.70 |
| 26 |
2CR-4616A-03-00 |
SERVO MOTOR COMP This part replaces 2CR-4616A-01-00. Price: $367.99 |
| 28 |
2CR-1133E-00-00 |
CABLE, PULLEY 1 Price: $83.99 |
| 29 |
2CR-1133F-00-00 |
CABLE, PULLEY 2 Price: $75.99 |
| 30 |
5VY-85829-01-00 |
COVER, SERVO MOTOR Price: $12.99 |
| 31 |
97780-50514-00 |
SCREW, TAPPING This part replaces 97702-50514-00. Price: $4.15 |
| 32 |
2CR-2116J-00-00 |
BRACKET 7 Price: $31.99 |
| 33 |
90480-14005-00 |
GROMMET Price: $3.85 |
| 34 |
90387-06158-00 |
COLLAR This part replaces 90387-063E6-00. Price: $9.49 |
| 35 |
95022-06020-00 |
BOLT, FLANGE Price: $3.90 |
| 36 |
90201-06M31-00 |
WASHER, PLATE Price: $3.45 |
| 37 |
90110-06106-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06253-00. Price: $9.49 |
| 38 |
90110-08099-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 39 |
90201-087G2-00 |
WASHER, PLATE Price: $4.65 |
| 40 |
90109-08238-00 |
BOLT Price: $3.90 |
