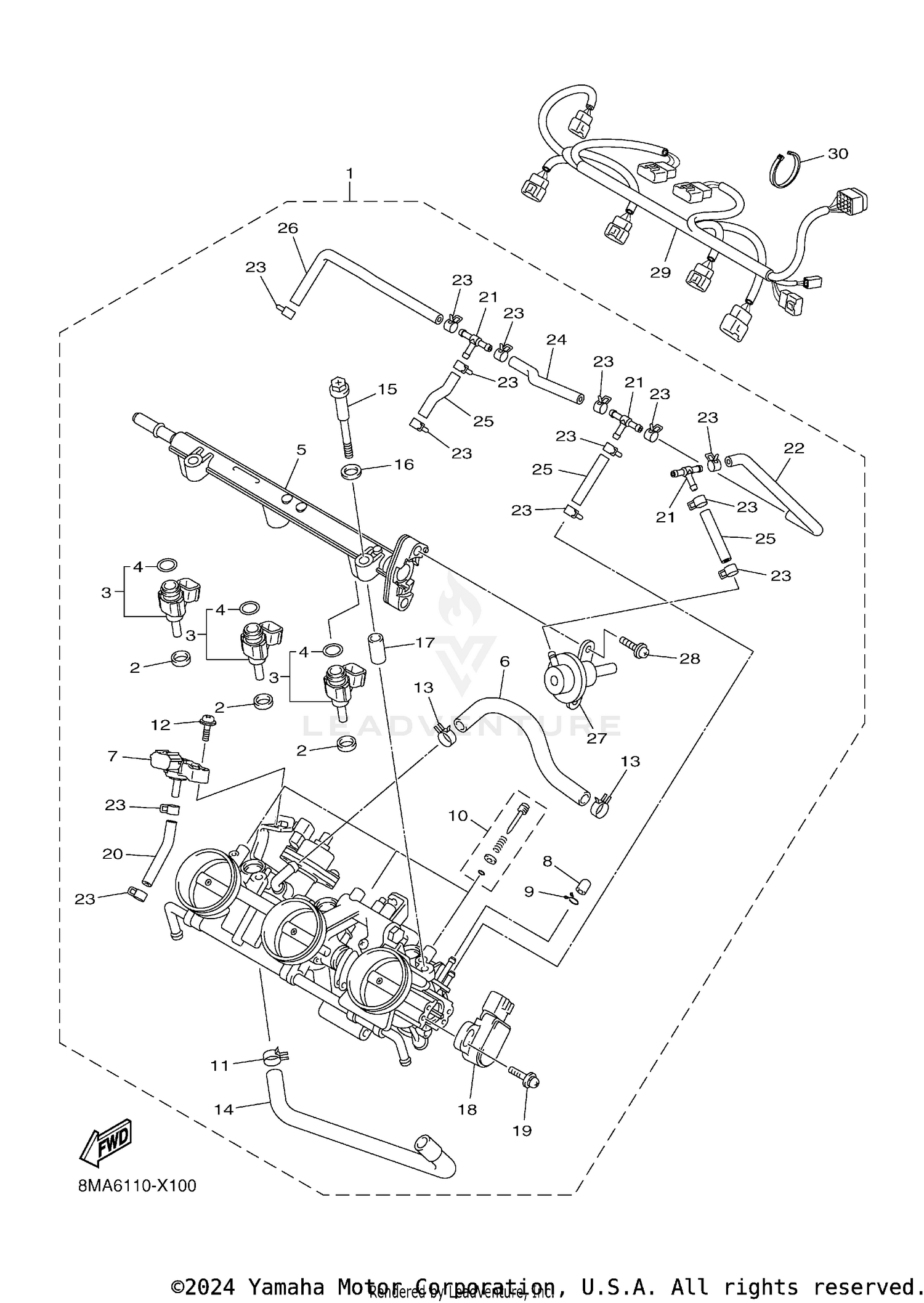

| Ref | Part Number | Description |
|---|
| 1 |
8KJ-13750-02-00 |
THROTTLE BODY ASSY Price: $1,216.99 |
| 2 |
8FP-13556-10-00 |
GASKET, MANIFOLD Price: $7.49 |
| 3 |
8KJ-13761-00-00 |
INJECTOR Price: $129.99 |
| 4 |
8FP-14147-00-00 |
O-RING Price: $25.99 |
| 5 |
8KJ-13938-00-00 |
PIPE Price: $156.99 |
| 6 |
8GL-13895-00-00 |
HOSE, AIR Price: $32.99 |
| 7 |
6BH-82380-00-00 |
SENSOR, PRESSURE Price: $282.99 |
| 8 |
84M-14169-00-00 |
CAP Price: $16.49 |
| 9 |
8KJ-14137-00-00 |
CLIP Price: $8.99 |
| 10 |
8GL-14503-00-00 |
ADJUST SCREW SET Price: $16.49 |
| 11 |
90468-08104-00 |
CLIP Price: $4.25 |
| 12 |
2C0-14216-00-00 |
SCREW Price: $4.20 |
| 13 |
8KJ-14159-00-00 |
CLIP Price: $8.99 |
| 14 |
8HF-13545-00-00 |
HOSE 1 Price: $16.99 |
| 15 |
8GL-13573-00-00 |
BOLT 1 Price: $16.49 |
| 16 |
8GL-13571-00-00 |
WASHER Price: $4.40 |
| 17 |
8GL-14534-00-00 |
COLLAR Price: $10.49 |
| 19 |
8CC-14216-10-00 |
SCREW Price: $8.99 |
| 20 |
5JW-24311-00-00 |
PIPE, FUEL 1 Price: $5.99 |
| 21 |
68V-24376-00-00 |
PIPE, JOINT 1 Price: $18.35 |
| 22 |
8GL-13893-00-00 |
HOSE, AIR 3 Price: $8.49 |
| 23 |
5DM-14919-00-00 |
CLIP Price: $4.85 |
| 24 |
68V-13533-00-00 |
HOSE, VACUUM SENSING 4 Price: $11.35 |
| 25 |
8FP-14349-30-00 |
PIPE Price: $6.49 |
| 26 |
8KJ-1410E-00-00 |
HOSE Price: $10.49 |
| 27 |
8KJ-13906-00-00 |
REGULATOR, PRESSURE Price: $335.99 |
| 28 |
98507-05008-00 |
SCREW, PAN HEAD Price: $3.85 |
| 29 |
8KC-H2386-00-00 |
EXTENSION, WIRE HARNESS Price: $200.99 |
