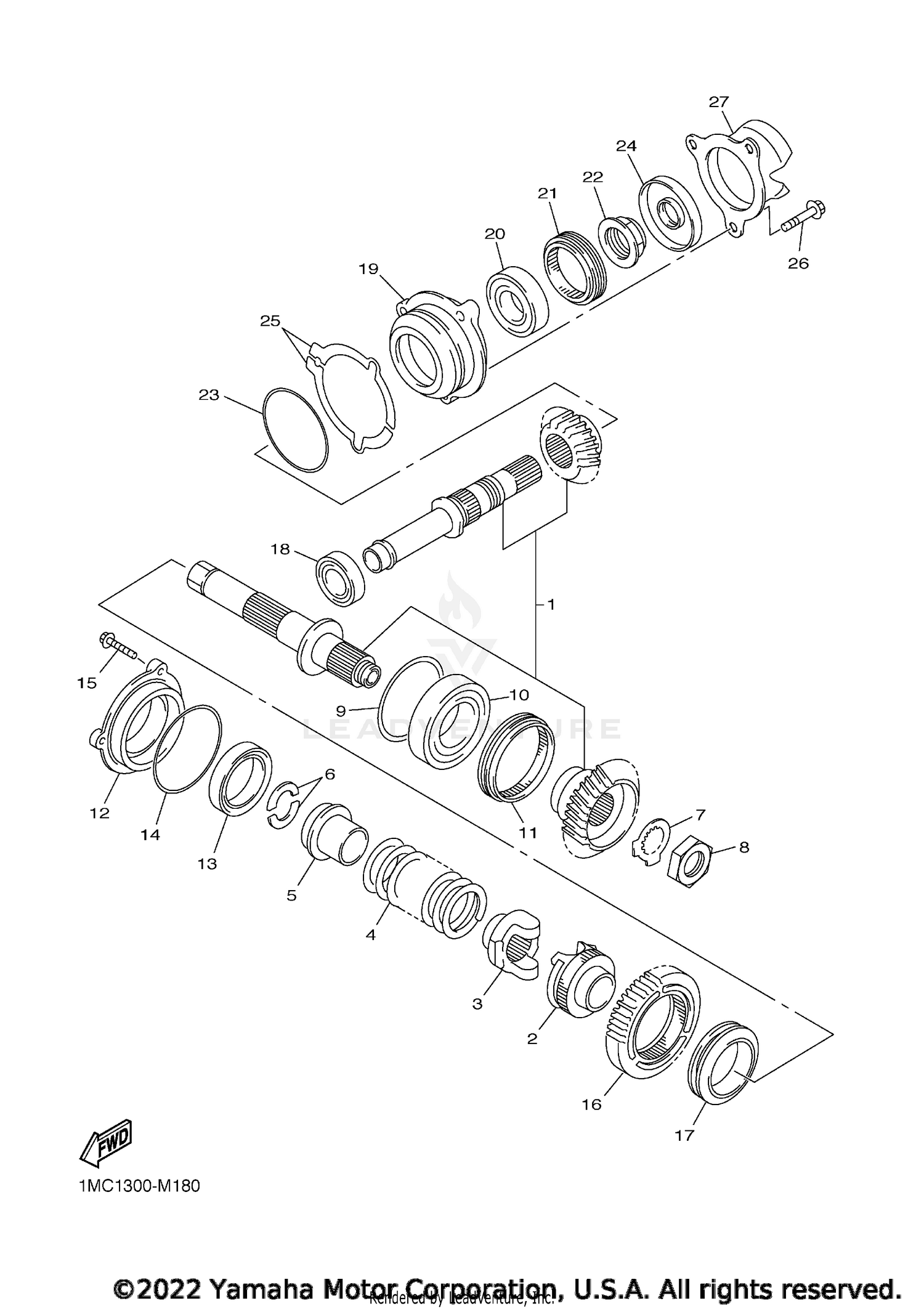

MIDDLE DRIVE GEAR
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5JW-W1751-00-00 | MIDDLE GEAR COMP. Price: $447.99 |
| 2 | 5JW-17526-00-00 | CAM, DRIVE Price: $143.99 |
| 3 | 5JW-17527-00-00 | CAM, DRIVEN Price: $93.99 |
| 4 | 3P6-17493-01-00 | SPRING, TRANSMISSI Price: $33.99 |
| 5 | 5JW-17524-00-00 | HOLDER Price: $66.99 |
| 6 | 90209-21281-00 | WASHER Price: $23.99 |
| 7 | 90215-27003-00 | WASHER, LOCK Price: $4.45 |
| 8 | 90179-22030-00 | NUT Price: $23.99 |
| 10 | 93306-20901-00 | BEARING (B6209RSH2-C2) Price: $95.99 |
| 11 | 90179-88336-00 | NUT Price: $42.99 |
| 12 | 1MC-17521-00-00 | HOUSING, BEARING Price: $52.99 |
| 13 | 93306-90901-00 | BEARING Price: $124.99 |
| 14 | 93210-84724-00 | O-RING Price: $11.49 |
| 15 | 90110-06387-00 | BOLT, HEXAGON SOCKET HEAD Price: $4.65 |
| 16 | B88-17583-00-00 | GEAR, MIDDLE DRIVEN Price: $114.99 |
| 17 | 90387-53001-00 | COLLAR Price: $39.99 |
| 18 | 93306-00519-00 | BEARING This part replaces 93306-00518-00. Price: $39.99 |
| 19 | 5JW-17551-00-00 | HOUSING, BEARING Price: $61.99 |
| 20 | 93306-20636-00 | BEARING Price: $46.99 |
| 21 | 90179-68001-00 | NUT Price: $48.99 |
| 22 | 90179-28005-00 | NUT Price: $20.99 |
| 23 | 93210-76546-00 | O-RING Price: $12.49 |
| 24 | 93102-25004-00 | OIL SEAL Price: $20.99 |
| 26 | 95817-08035-00 | BOLT, FLANGE This part replaces 90105-08108-00. Price: $10.49 |
